交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCS60US12AC/DC CONVERTER 12V 60W XP Power |
14 | - |
|
数据表 |
FCS60 (60W) | Box | Active | Open Frame | 1 | 12V | - | - | 60W | - | - | 80 ~ 264 VAC | - | 5 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
EML30US12-TAC/DC CONVERTER 12V 30W XP Power |
30 | - |
|
数据表 |
EML30 (30W) | Box | Active | Open Frame | 1 | 12V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 2.5 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 1.00" H (87.9mm x 34.6mm x 25.4mm) |
|
EML30US05-SAC/DC CONVERTER 5V 30W XP Power |
20 | - |
|
数据表 |
EML30 (30W) | Box | Active | Enclosed | 1 | 5V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 6 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|
|
EML30US12-SAC/DC CONVERTER 12V 30W XP Power |
18 | - |
|
数据表 |
EML30 (30W) | Box | Active | Enclosed | 1 | 12V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 2.5 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|
EPL150PS24AC/DC CONVERTER 24V 100W XP Power |
21 | - |
|
数据表 |
EPL150 (150W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W (150W Forced Air) | - | - | 80 ~ 264 VAC | - | 4.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) |
|
JPS130PT31-MAC/DC CONVERTER 5V +/-12V 100W XP Power |
0 | - |
|
数据表 |
JPS (130W) | Bulk | Active | Open Frame | 3 | 5V | 12V | -12V | 100W (130W Forced Air) | - | - | 90 ~ 264 VAC | - | 10 A | - | 3 A | Medical | - | 800 mA | - | 4000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
|
JPS130PT32-MAC/DC CONVERTER 5V +/-15V 100W XP Power |
0 | - |
|
数据表 |
JPS (130W) | Bulk | Active | Open Frame | 3 | 5V | 15V | -15V | 100W (130W Forced Air) | - | - | 90 ~ 264 VAC | - | 10 A | - | 2.5 A | Medical | - | 800 mA | - | 4000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
|
JPS130PT34-MAC/DC CONVERTER 5V 24V 12V 100W XP Power |
0 | - |
|
数据表 |
JPS (130W) | Bulk | Active | Open Frame | 3 | 5V | 24V | 12V | 100W (130W Forced Air) | - | - | 90 ~ 264 VAC | - | 2.5 A | - | 2.8 A | Medical | - | 700 mA | - | 4000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
ECH450PS24-EFAC/DC CONVERTER 24V 250W XP Power |
10 | - |
|
数据表 |
ECH450 (450W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 250W (451W Forced Air) | - | - | 90 ~ 264 VAC | - | 10.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|

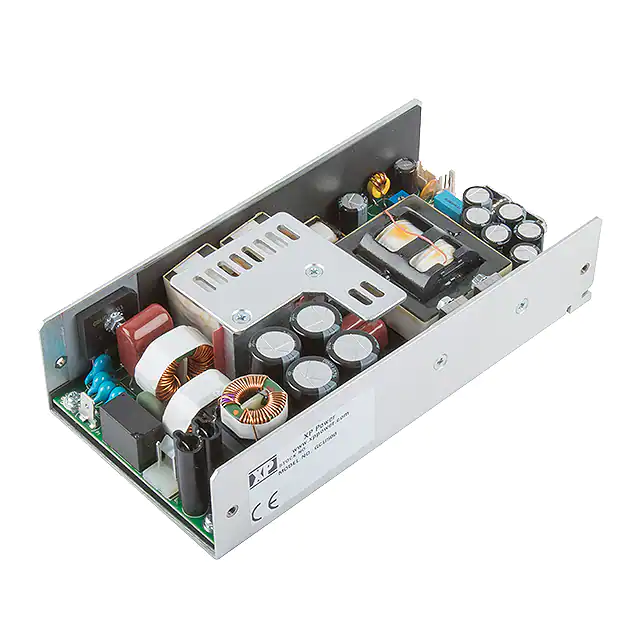

GCU500PS24AC/DC CONVERTER 24V 250W XP Power |
19 | - |
|
数据表 |
GCU500 (500W) | Box | Active | Enclosed | 1 | 24V | - | - | 250W (499W Forced Air) | - | - | 80 ~ 264 VAC | - | 10.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.50" L x 3.30" W x 1.55" H (165.1mm x 83.8mm x 39.4mm) |
