交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GCS350PS24AC/DC CONVERTER 24V 200W XP Power |
128 | - |
|
数据表 |
GCS (350W) | Box | Active | Open Frame | 1 | 24V | - | - | 200W (350W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C | 80 Plus® Silver, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
ECM100UQ43AC/DC CNVRTR 5V 24V +/-12V 80W XP Power |
178 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 4 | 5V | 24V | 12V | 80W (100W Forced Air) | -12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 2 A | ITE (Commercial), Medical | - | 800 mA | 500 mA | 4 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|

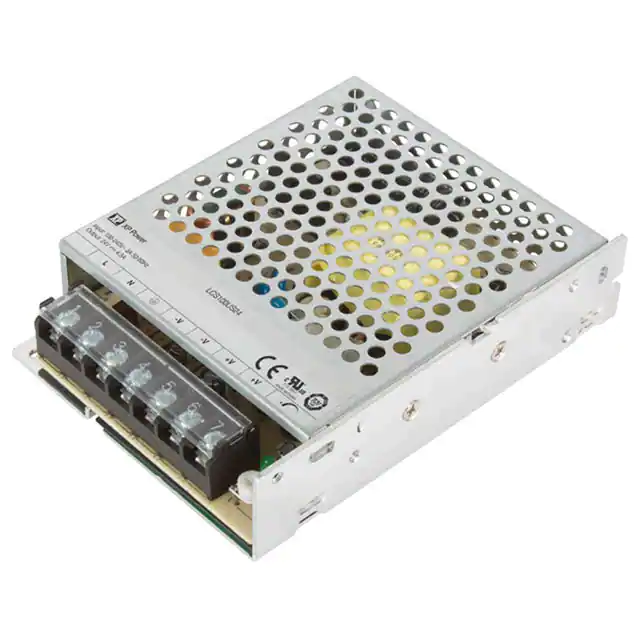

LCS100US24AC/DC CONVERTER 24V 108W XP Power |
0 | - |
|
数据表 |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 108W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 4.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
|
LCS100US15AC/DC CONVERTER 15V 105W XP Power |
0 | - |
|
数据表 |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 105W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 7 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
|
LCS100US12AC/DC CONVERTER 12V 102W XP Power |
0 | - |
|
数据表 |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 102W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
|
LCS100US48AC/DC CONVERTER 48V 110W XP Power |
0 | - |
|
数据表 |
LCS100 (100W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 110W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 2.3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
LCW75US24AC/DC CONVERTER 24V 77W XP Power |
0 | - |
|
数据表 |
LCW75 (75W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 77W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.2 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
GCU500PS24-EFAC/DC CONVERTER 24V 250W XP Power |
60 | - |
|
数据表 |
GCU500 (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 250W (499W Forced Air) | - | - | 80 ~ 264 VAC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.56" L x 3.30" W x 1.64" H (192.0mm x 83.8mm x 41.8mm) |
|
|
LCW75US12AC/DC CONVERTER 12V 72W XP Power |
0 | - |
|
数据表 |
LCW75 (75W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|
UCH600PS24AC/DC CONVERTER 24V 600W XP Power |
34 | - |
|
数据表 |
UCH600 (600W) | Box | Active | Open Frame | 1 | 24V | - | - | 600W | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.57" H (203.2mm x 127.0mm x 40.0mm) |
