| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCW25US05AC/DC CONVERTER 5V 25W XP Power |
0 | - |
|
数据表 |
LCW25 (25W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 25W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 5 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.70" L x 2.17" W x 0.98" H (94.0mm x 55.0mm x 25.0mm) |
|
|
LCS35US12AC/DC CONVERTER 12V 36W XP Power |
0 | - |
|
数据表 |
LCS35 (35W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 36W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
ECS45US24AC/DC CONVERTER 24V 45W XP Power |
1,035 | - |
|
数据表 |
ECS (45W) | Box | Active | Open Frame | 1 | 24V | - | - | 45W | - | - | 80 ~ 264 VAC | - | 1.9 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) |
|
ECS45US12AC/DC CONVERTER 12V 45W XP Power |
373 | - |
|
数据表 |
ECS (45W) | Box | Active | Open Frame | 1 | 12V | - | - | 45W | - | - | 80 ~ 264 VAC | - | 3.75 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) |
|

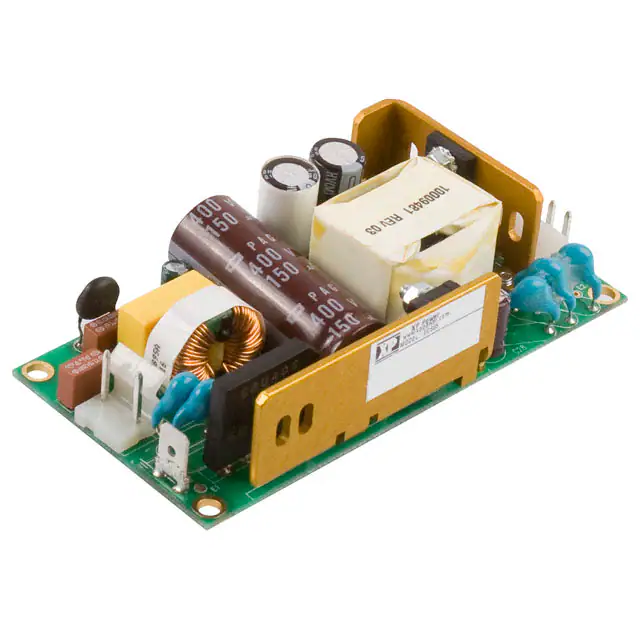

ECS65US24AC/DC CONVERTER 24V 65W XP Power |
1,310 | - |
|
数据表 |
ECS (65W) | Box | Active | Open Frame | 1 | 24V | - | - | 65W | - | - | 80 ~ 264 VAC | - | 2.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) |
|
ECS65US12AC/DC CONVERTER 12V 65W XP Power |
488 | - |
|
数据表 |
ECS (65W) | Box | Active | Open Frame | 1 | 12V | - | - | 65W | - | - | 80 ~ 264 VAC | - | 5.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) |
|
ECM40US24AC/DC CONVERTER 24V 40W XP Power |
2,579 | - |
|
数据表 |
ECM (40W) | Box | Active | Open Frame | 1 | 24V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 1.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM40US05AC/DC CONVERTER 5V 40W XP Power |
1,585 | - |
|
数据表 |
ECM (40W) | Box | Active | Open Frame | 1 | 5V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM40US12AC/DC CONVERTER 12V 40W XP Power |
1,276 | - |
|
数据表 |
ECM (40W) | Box | Active | Open Frame | 1 | 12V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 3.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
|

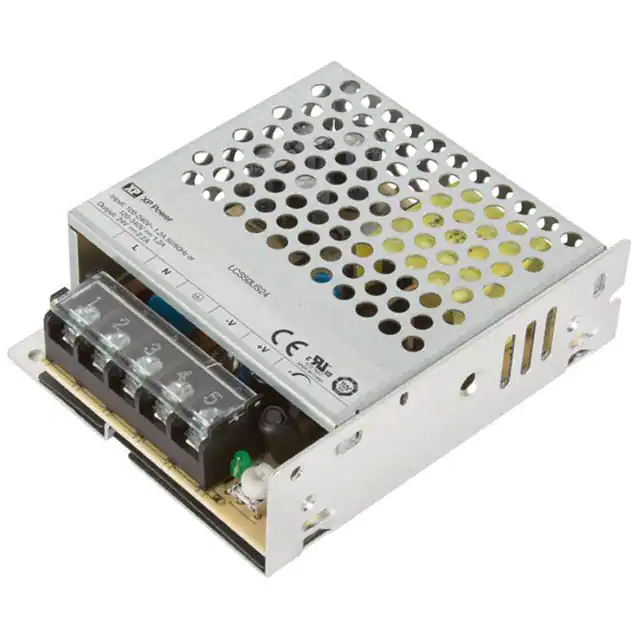

LCS50US24AC/DC CONVERTER 24V 53W XP Power |
0 | - |
|
数据表 |
LCS50 (50W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 53W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 2.2 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
