交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCR200PS24AC-DC POWER SUPPLY 24VDC 8.33A XP Power |
0 | - |
|
数据表 |
CCR200 (200W) | Box | Active | Enclosed | 1 | 24V | - | - | 110W (200W Forced Air) | - | - | 85 ~ 264 VAC | - | 4.58 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Baseplate, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) |
|
|
CCR200PS12AC-DC POWER SUPPLY 12VDC 16.67A XP Power |
0 | - |
|
数据表 |
CCR200 (200W) | Box | Active | Enclosed | 1 | 12V | - | - | 110W (200W Forced Air) | - | - | 85 ~ 264 VAC | - | 9.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Baseplate, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) |
|

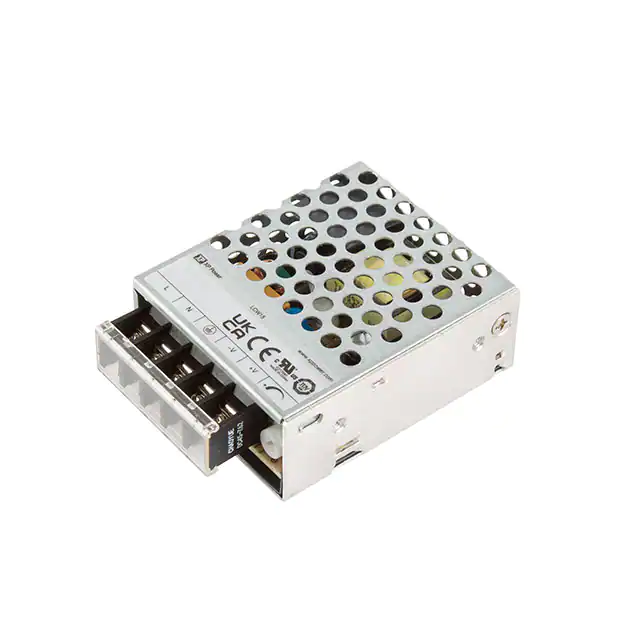

LCW15US48AC/DC CONVERTER 48V 15W XP Power |
25 | - |
|
数据表 |
LCW15 (15W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 320 mA | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm) |
|
|
LCW15US03AC/DC CONVERTER 3.3V 9.9W XP Power |
21 | - |
|
数据表 |
LCW15 (15W) | Box | Not For New Designs | Enclosed | 1 | 3.3V | - | - | 9.9W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm) |
|
|
LCW15US05AC/DC CONVERTER 5V 15W XP Power |
0 | - |
|
数据表 |
LCW15 (15W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm) |
|
|
LCW15US12AC/DC CONVERTER 12V 16W XP Power |
0 | - |
|
数据表 |
LCW15 (15W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 16W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off | Chassis Mount | 3.07" L x 2.17" W x 0.98" H (78.0mm x 55.0mm x 25.0mm) |
|
VCS70US24AC/DC CONVERTER 24V 70W XP Power |
142 | - |
|
数据表 |
VCS (70W) | Box | Active | Enclosed | 1 | 24V | - | - | 70W | - | - | 85 ~ 264 VAC | - | 2.92 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.12" L x 3.88" W x 1.61" H (130.0mm x 98.5mm x 41.0mm) |
|
LCW25US03AC/DC CONVERTER 3.3V 20W XP Power |
4 | - |
|
数据表 |
LCW25 (25W) | Box | Not For New Designs | Enclosed | 1 | 3.3V | - | - | 20W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 6 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.70" L x 2.17" W x 0.98" H (94.0mm x 55.0mm x 25.0mm) |
|
|
LCW25US24AC/DC CONVERTER 24V 26W XP Power |
0 | - |
|
数据表 |
LCW25 (25W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 26W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.1 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.70" L x 2.17" W x 0.98" H (94.0mm x 55.0mm x 25.0mm) |
|
|
LCW25US12AC/DC CONVERTER 12V 25W XP Power |
0 | - |
|
数据表 |
LCW25 (25W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 25W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 2.1 A | - | - | ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.70" L x 2.17" W x 0.98" H (94.0mm x 55.0mm x 25.0mm) |
