| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

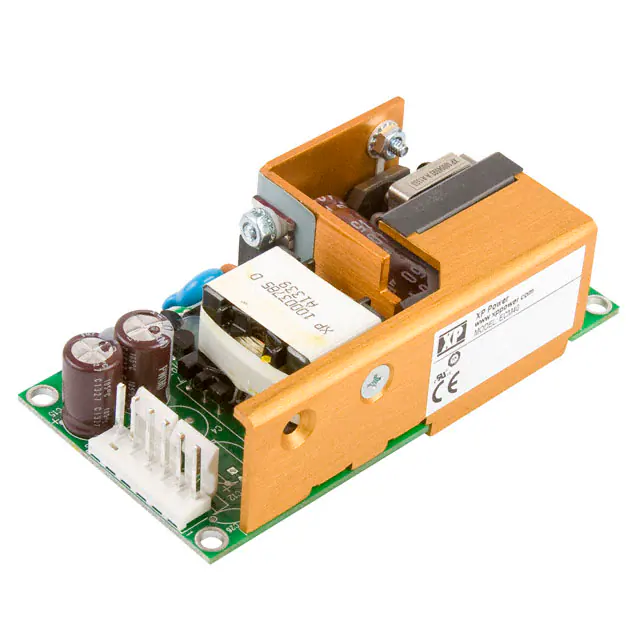

ECM40UT33AC/DC CONVERTER 5V +/-15V 40W XP Power |
593 | - |
|
数据表 |
ECM (40W) | Box | Active | Open Frame | 3 | 5V | 15V | -15V | 40W | - | - | 90 ~ 264 VAC | - | 6 A | - | 1.5 A | ITE (Commercial), Medical | - | 500 mA | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM40UT31AC/DC CONVERTER 5V +/-12V 40W XP Power |
219 | - |
|
数据表 |
ECM (40W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 40W | - | - | 90 ~ 264 VAC | - | 6 A | - | 2 A | ITE (Commercial), Medical | - | 500 mA | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
LCW35US24AC/DC CONVERTER 24V 36W XP Power |
0 | - |
|
数据表 |
LCW35 (35W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 36W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.5 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
ECM60US05AC/DC CONVERTER 5V 60W XP Power |
1,622 | - |
|
数据表 |
ECM (60W) | Box | Active | Open Frame | 1 | 5V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 12 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM60US24AC/DC CONVERTER 24V 60W XP Power |
425 | - |
|
数据表 |
ECM (60W) | Box | Active | Open Frame | 1 | 24V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 2.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM60US48AC/DC CONVERTER 48V 60W XP Power |
375 | - |
|
数据表 |
ECM (60W) | Box | Active | Open Frame | 1 | 48V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 1.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM60US12AC/DC CONVERTER 12V 60W XP Power |
140 | - |
|
数据表 |
ECM (60W) | Box | Active | Open Frame | 1 | 12V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM60UT31AC/DC CONVERTER 5V +/-12V 60W XP Power |
418 | - |
|
数据表 |
ECM (60W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 60W | - | - | 90 ~ 264 VAC | - | 8 A | - | 3 A | ITE (Commercial), Medical | - | 500 mA | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECS100US12AC/DC CONVERTER 12V 80W XP Power |
5,185 | - |
|
数据表 |
ECS (100W) | Box | Active | Open Frame | 1 | 12V | - | - | 80W (100W Forced Air) | - | - | 80 ~ 264 VAC | - | 8.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
ECS100US24AC/DC CONVERTER 24V 80W XP Power |
1,779 | - |
|
数据表 |
ECS (100W) | Box | Active | Open Frame | 1 | 24V | - | - | 80W (100W Forced Air) | - | - | 80 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
