| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

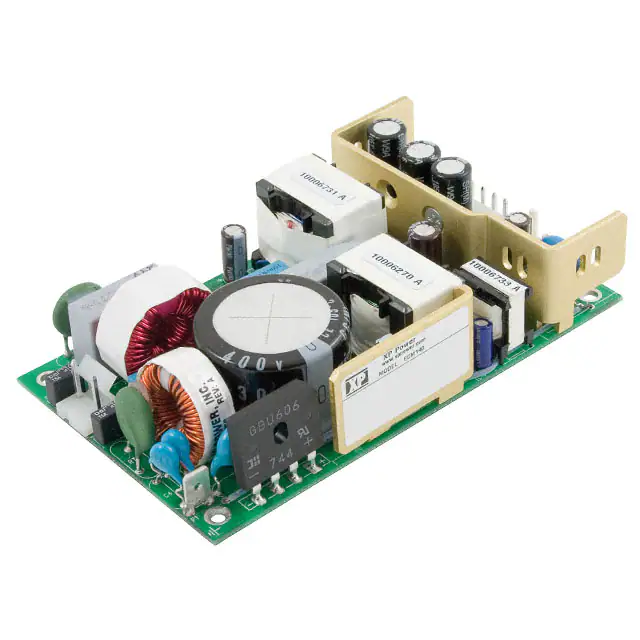

ECM140US24AC/DC CONVERTER 24V 140W XP Power |
1 | - |
|
数据表 |
ECM (140W) | Box | Active | Open Frame | 1 | 24V | - | - | 140W | - | - | 80 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) |
|
ECM140US12AC/DC CONVERTER 12V 140W XP Power |
0 | - |
|
数据表 |
ECM (140W) | Box | Active | Open Frame | 1 | 12V | - | - | 140W | - | - | 80 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) |
|

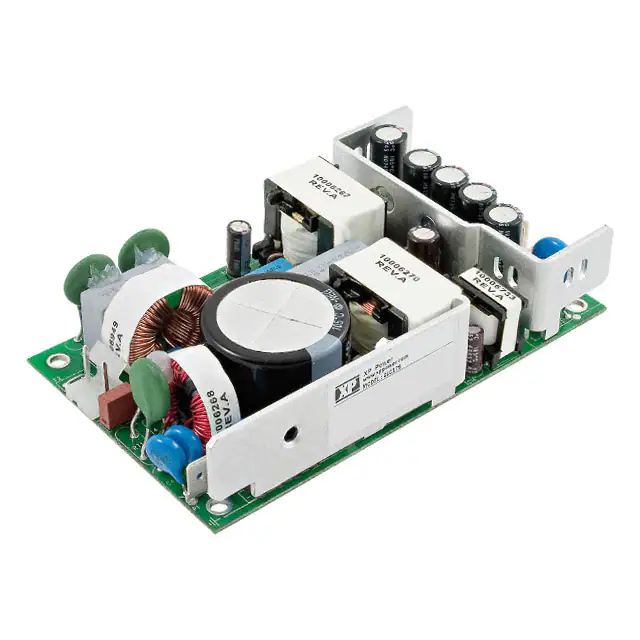

CLC175US12AC/DC CONVERTER 12V 55W XP Power |
0 | - |
|
数据表 |
CLC (175W) | Box | Active | Open Frame | 1 | 12V | - | - | 55W (125W Forced Air) | - | - | 85 ~ 264 VAC | - | 13.9 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
CLC175US24AC/DC CONVERTER 24V 55W XP Power |
0 | - |
|
数据表 |
CLC (175W) | Box | Active | Open Frame | 1 | 24V | - | - | 55W (125W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.9 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
GCS350PS15AC/DC CONVERTER 15V 200W XP Power |
0 | - |
|
数据表 |
GCS (350W) | Box | Active | Open Frame | 1 | 15V | - | - | 200W (350W Forced Air) | - | - | 85 ~ 264 VAC | - | 13.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C | 80 Plus® Silver, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|
JPS130PS24AC/DC CONVERTER 24V 100W XP Power |
1 | - |
|
数据表 |
JPS (130W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 100W (130W Forced Air) | - | - | 90 ~ 264 VAC | - | 4.5 A | - | - | ITE (Commercial) | - | - | - | 3000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
JPS130PS12AC/DC CONVERTER 12V 100W XP Power |
0 | - |
|
数据表 |
JPS (130W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 100W (130W Forced Air) | - | - | 90 ~ 264 VAC | - | 9 A | - | - | ITE (Commercial) | - | - | - | 3000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
JPS130PS15AC/DC CONVERTER 15V 100W XP Power |
0 | - |
|
数据表 |
JPS (130W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 100W (130W Forced Air) | - | - | 90 ~ 264 VAC | - | 7 A | - | - | ITE (Commercial) | - | - | - | 3000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
JPS130PS28-MAC/DC CONVERTER 28V 100W XP Power |
0 | - |
|
数据表 |
JPS (130W) | Bulk | Active | Open Frame | 1 | 28V | - | - | 100W (130W Forced Air) | - | - | 90 ~ 264 VAC | - | 3.8 A | - | - | Medical | - | - | - | 4000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|

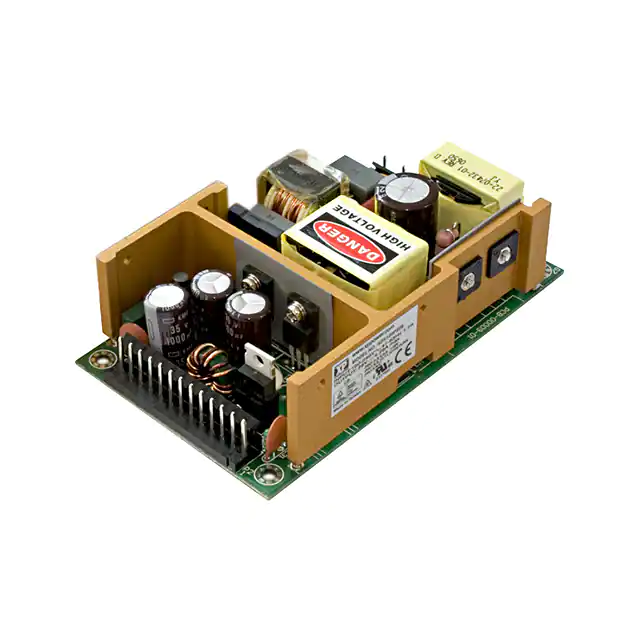

SDS120PS24BAC/DC CONVERTER 24V 120W XP Power |
0 | - |
|
数据表 |
SDS (120W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 120W | - | - | 90 ~ 264 VAC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3000 V | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | - |
