单个二极管
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 电压 - 直流反向 (Vr)（最大值） | 电压 - 正向 (Vf)（最大值）@ If | 速度 | 反向恢复时间 (trr) | 电流 - 反向漏电 @ Vr | 电容 @ Vr, F | 电流 - 平均整流（Io） | 等级 | 认证 | 安装类型 | 供应商设备封装 | 工作温度 - 结点 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSEI12-10ADIODE GEN PURP 1KV 12A TO220AC IXYS |
5,381 | - |
|
数据表 |
- | TO-220-2 | Tube | Active | Standard | 1000 V | 2.7 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 250 µA @ 1000 V | - | 12A | - | - | Through Hole | TO-220AC | -40°C ~ 150°C |
|
UGE0421AY4DIODE GEN PURP 3.2KV 22.9A UGE IXYS |
4,016 | - |
|
数据表 |
- | UGE | Box | Active | Standard | 3200 V | 2.72 V @ 55 A | Standard Recovery >500ns, > 200mA (Io) | - | 2 mA @ 3200 V | - | 22.9A | - | - | Chassis Mount | UGE | - |
|
DS75-08BDIODE GEN PURP 800V 110A DO203AB IXYS |
4,934 | - |
|
数据表 |
- | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 800 V | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 800 V | - | 110A | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
|
DSI75-08BDIODE GEN PURP 800V 110A DO203AB IXYS |
8,341 | - |
|
数据表 |
- | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 800 V | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 800 V | - | 110A | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|

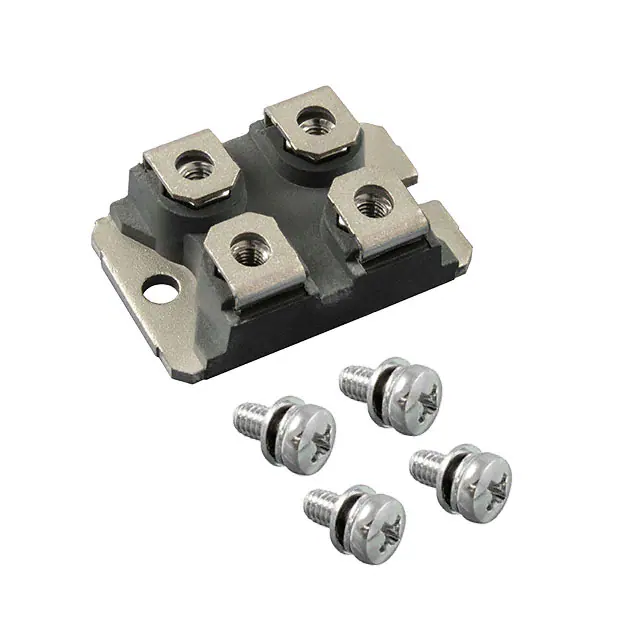

DSA300I45NADIODE SCHOTTKY 45V 300A SOT227B IXYS |
9,528 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Obsolete | Schottky | 45 V | 840 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | 16500pF @ 5V, 1MHz | 300A | - | - | Chassis Mount | SOT-227B | - |
|
DSA300I100NADIODE SCHOTTKY 100V 300A SOT227B IXYS |
7,265 | - |
|
数据表 |
- | SOT-227-4, miniBLOC | Tube | Obsolete | Schottky | 100 V | 990 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 100 V | 4860pF @ 12V, 1MHz | 300A | - | - | Chassis Mount | SOT-227B | -40°C ~ 150°C |
|
|
DNA120E2200KODIODE GP 2.2KV 120A ISOPLUS264 IXYS |
4,299 | - |
|
数据表 |
- | ISOPLUS264™ | Tube | Active | Standard | 2200 V | 1.31 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 2200 V | 88pF @ 700V, 1MHz | 120A | - | - | Through Hole | ISOPLUS264™ | -55°C ~ 175°C |
|
DFE10I600PMDIODE GP 600V 10A TO220ACFP IXYS |
8,750 | - |
|
数据表 |
- | TO-220-2 Full Pack, Isolated Tab | Tube | Active | Standard | 600 V | 1.5 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 600 V | - | 10A | - | - | Through Hole | TO-220ACFP | -55°C ~ 150°C |
|
DSI30-08AS-TUBDIODE GEN PURP 800V 30A TO263AA IXYS |
8,367 | - |
|
数据表 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | Standard | 800 V | 1.29 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 µA @ 800 V | 10pF @ 400V, 1MHz | 30A | - | - | Surface Mount | TO-263AA | -40°C ~ 175°C |
|
|
DSA75-12BDIODE AVAL 1.2KV 110A DO203AB IXYS |
3,797 | - |
|
数据表 |
- | DO-203AB, DO-5, Stud | Box | Obsolete | Avalanche | 1200 V | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | 110A | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
