固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M83446/39-26FFIXED IND 1.2UH 604MA 550MOHM SM |
528 | - |
|
数据表 |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 604 mA | - | 1812 | Unshielded | 550mOhm Max | 1.2 µH | 50 @ 7.9MHz | 80MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
|
M83446/39-33FFIXED IND 4.7UH 448MA 1 OHM SMD |
455 | - |
|
数据表 |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 448 mA | - | 1812 | Unshielded | 1Ohm Max | 4.7 µH | 50 @ 7.9MHz | 35MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
|
M83446/39-35FFIXED IND 6.8UH 409MA 1.2OHM SMD |
428 | - |
|
数据表 |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 409 mA | - | 1812 | Unshielded | 1.2Ohm Max | 6.8 µH | 50 @ 7.9MHz | 27MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
|
M83446/39-37FFIXED IND 10UH 354MA 1.6 OHM SMD |
406 | - |
|
数据表 |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 354 mA | - | 1812 | Unshielded | 1.6Ohm Max | 10 µH | 50 @ 7.9MHz | 20MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
|
M83446/39-25FFIXED IND 1UH 634MA 500 MOHM SMD |
330 | - |
|
数据表 |
Military, MIL-PRF-39010, M83446/39 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 634 mA | - | 1812 | Unshielded | 500mOhm Max | 1 µH | 50 @ 7.9MHz | 100MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
CTX250-1-52M-RFIXED IND 250UH 1.9A 221 MOHM TH |
253 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 1.9 A | 2.2A | - | Unshielded | 221mOhm Max | 250 µH | - | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | - | -40°C ~ 75°C | 100 kHz | 0.886" (22.50mm) |
|
SRR6038-390YFIXED IND 39UH 1A 138 MOHM SMD |
12,073 | - |
|
数据表 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 1.1A | - | Shielded | 138mOhm Max | 39 µH | 8.3 @ 2.52MHz | 11.8MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
8532R-28LFIXED IND 180UH 990MA 362MOHM SM |
527 | - |
|
数据表 |
8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 990 mA | 480mA | - | Unshielded | 362mOhm Max | 180 µH | - | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | - | -55°C ~ 125°C | 1 kHz | 0.286" (7.26mm) |
|
SH150S-3.00-38FIXED IND 38UH 3A 50 MOHM SMD |
2,836 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm | 38 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.427" (10.85mm) |
|
CL1108-2-50TR-RFIXED IND 50NH 80A 0.00028OHM SM |
1,195 | - |
|
数据表 |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 80 A | - | - | - | 0.28mOhm | 50 nH | - | - | Surface Mount | - | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 2 Phase | -40°C ~ 125°C | 1 MHz | 0.315" (8.00mm) |
|

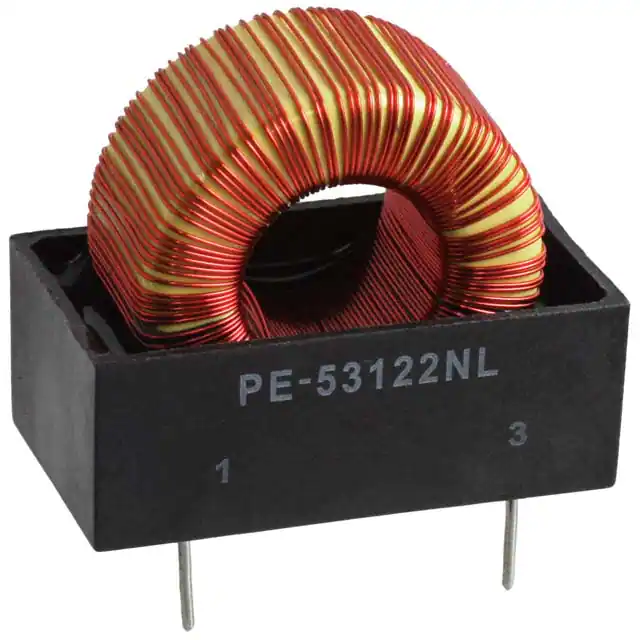

PE-53122NLFIXED IND 2.2MH 420MA 1.8 OHM TH |
245 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±20% | 420 mA | - | - | Unshielded | 1.8Ohm Max | 2.2 mH | - | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | - | -40°C ~ 130°C | - | 1.440" (36.57mm) |
|
MGV17073R3M-10FIXED IND 3.3UH 28A 3.9MOHM SMD |
265 | - |
|
数据表 |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 28 A | 54A | - | Shielded | 3.9mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
HC8-R75-RFIXED IND 750NH 18.8A 3.4MOHM SM |
2,115 | - |
|
数据表 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 18.8 A | 32.7A | - | Unshielded | 3.4mOhm Max | 750 nH | - | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
B82559A2102A024FIXED IND 1UH 54.4A 0.45MOHM SMD |
263 | - |
|
数据表 |
ERU24 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 54.4 A | 78.5A | - | Shielded | 0.45mOhm | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.972" L x 0.898" W (24.70mm x 22.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.504" (12.80mm) |
|
SDCL1005CR22JTDFFIXED IND 220NH 100MA 4 OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 | Unshielded | 4Ohm Max | 220 nH | 8 @ 100MHz | 450MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C20NHTDFFIXED IND 20NH 300MA 600MOHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 300 mA | - | 0402 | Unshielded | 600mOhm Max | 20 nH | 8 @ 100MHz | 2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005CR33HTDFFIXED IND 330NH 50MA 7 OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 50 mA | - | 0402 | Unshielded | 7Ohm Max | 330 nH | 6 @ 50MHz | 350MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 50 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C39NHTDFFIXED IND 39NH 200MA 1 OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 200 mA | - | 0402 | Unshielded | 1Ohm Max | 39 nH | 8 @ 100MHz | 1.2GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C22NJTDFFIXED IND 22NH 300MA 600MOHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0402 | Unshielded | 600mOhm Max | 22 nH | 8 @ 100MHz | 1.9GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C33NJTDFFIXED IND 33NH 200MA 800MOHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 200 mA | - | 0402 | Unshielded | 800mOhm Max | 33 nH | 8 @ 100MHz | 1.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
