固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR7045-221MFIXED IND 220UH 450MA 700MOHM SM |
195,117 | - |
|
数据表 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 640 mA | 400mA | - | Shielded | 700mOhm Max | 220 µH | 44 @ 796kHz | 5MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
HC7-2R2-RFIXED IND 2.2UH 13A 5.2 MOHM SMD |
1,536 | - |
|
数据表 |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 13 A | 23.6A | - | Unshielded | 5.2mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.217" (5.50mm) |
|
SRR7032-102MFIXED IND 1MH 150MA 5.4 OHM SMD |
54,500 | - |
|
数据表 |
SRR7032 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 150 mA | 140mA | - | Shielded | 5.4Ohm Max | 1 mH | 120 @ 252kHz | 3.1MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.134" (3.40mm) |
|
|
SRR7045-470MFIXED IND 47UH 950MA 150MOHM SMD |
44,640 | - |
|
数据表 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 900mA | - | Shielded | 150mOhm Max | 47 µH | 29 @ 2.52MHz | 11MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
SRR5028-330YFIXED IND 33UH 900MA 190MOHM SMD |
42,484 | - |
|
数据表 |
SRR5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 900 mA | 780mA | - | Shielded | 190mOhm Max | 33 µH | 11 @ 2.52MHz | 13MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SRR5028-100YFIXED IND 10UH 1.5A 70 MOHM SMD |
36,144 | - |
|
数据表 |
SRR5028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.5 A | 1.4A | - | Shielded | 70mOhm Max | 10 µH | 9 @ 2.52MHz | 30MHz | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SDCL1005C9N1HTDFFIXED IND 9.1NH 300MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 300 mA | - | 0402 | Unshielded | 400mOhm Max | 9.1 nH | 8 @ 100MHz | 3.4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
SRR6038-180YFIXED IND 18UH 1.5A 92 MOHM SMD |
26,375 | - |
|
数据表 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.5 A | 1.7A | - | Shielded | 92mOhm Max | 18 µH | 8 @ 2.52MHz | 13.8MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SDCL1005C18NHTDFFIXED IND 18NH 300MA 600MOHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 300 mA | - | 0402 | Unshielded | 600mOhm Max | 18 nH | 8 @ 100MHz | 2.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SRR7045-471MFIXED IND 470UH 320MA 1.1OHM SMD |
25,434 | - |
|
数据表 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 230mA | - | Shielded | 1.1Ohm Max | 470 µH | 80 @ 796kHz | 3MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
SRU5016-100YFIXED IND 10UH 1A 84 MOHM SMD |
24,508 | - |
|
数据表 |
SRU5016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 900mA | - | Shielded | 84mOhm | 10 µH | 15 @ 2.52MHz | 40MHz | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SRR6038-470YFIXED IND 47UH 950MA 155MOHM SMD |
23,402 | - |
|
数据表 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 950 mA | 1A | - | Shielded | 155mOhm Max | 47 µH | 8.5 @ 2.52MHz | 10.4MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

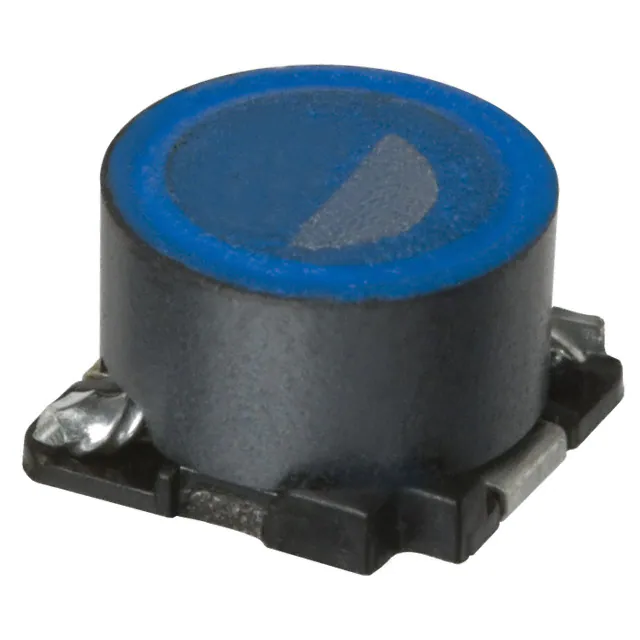

SLF7045T-470MR90-HFIXED IND 47UH 900MA 216MOHM SMD |
20,634 | - |
|
数据表 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 900 mA | 900mA | - | Shielded | 216mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRR6038-3R3YFIXED IND 3.3UH 3.5A 20 MOHM SMD |
19,695 | - |
|
数据表 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.5 A | 3.6A | - | Shielded | 20mOhm Max | 3.3 µH | 9.8 @ 7.96MHz | 75.9MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRR7045-681MFIXED IND 680UH 270MA 1.6OHM SMD |
18,233 | - |
|
数据表 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 200mA | - | Shielded | 1.6Ohm Max | 680 µH | 65 @ 796kHz | 3MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRR6038-560YFIXED IND 56UH 850MA 202MOHM SMD |
18,217 | - |
|
数据表 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 850 mA | 900mA | - | Shielded | 202mOhm Max | 56 µH | 8.2 @ 2.52MHz | 8.8MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRR7045-100MFIXED IND 10UH 2A 42 MOHM SMD |
18,194 | - |
|
数据表 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.7 A | 1.9A | - | Shielded | 42mOhm Max | 10 µH | 30 @ 2.52MHz | 25MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
SDCL1005CR15JTDFFIXED IND 150NH 100MA 3.2OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 | Unshielded | 3.2Ohm Max | 150 nH | 8 @ 100MHz | 550MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C6N2CTDFFIXED IND 6.2NH 300MA 300MOHM SM |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 300 mA | - | 0402 | Unshielded | 300mOhm Max | 6.2 nH | 8 @ 100MHz | 3.9GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005CR12JTDFFIXED IND 120NH 150MA 2.8OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 150 mA | - | 0402 | Unshielded | 2.8Ohm Max | 120 nH | 8 @ 100MHz | 600MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
