固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCL1005CR18HTDFFIXED IND 180NH 100MA 3.7OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 100 mA | - | 0402 | Unshielded | 3.7Ohm Max | 180 nH | 8 @ 100MHz | 500MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C15NHTDFFIXED IND 15NH 300MA 500MOHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 300 mA | - | 0402 | Unshielded | 500mOhm Max | 15 nH | 8 @ 100MHz | 2.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005CR12HTDFFIXED IND 120NH 150MA 2.8OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 150 mA | - | 0402 | Unshielded | 2.8Ohm Max | 120 nH | 8 @ 100MHz | 600MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C68NHTDFFIXED IND 68NH 180MA 1.4 OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 180 mA | - | 0402 | Unshielded | 1.4Ohm Max | 68 nH | 8 @ 100MHz | 750MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C8N2JTDFFIXED IND 8.2NH 300MA 400MOHM SM |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0402 | Unshielded | 400mOhm Max | 8.2 nH | 8 @ 100MHz | 3.6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
SRR6038-680YFIXED IND 68UH 750MA 234MOHM SMD |
15,902 | - |
|
数据表 |
SRR6038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 750 mA | 870mA | - | Shielded | 234mOhm Max | 68 µH | 7.4 @ 2.52MHz | 7.5MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

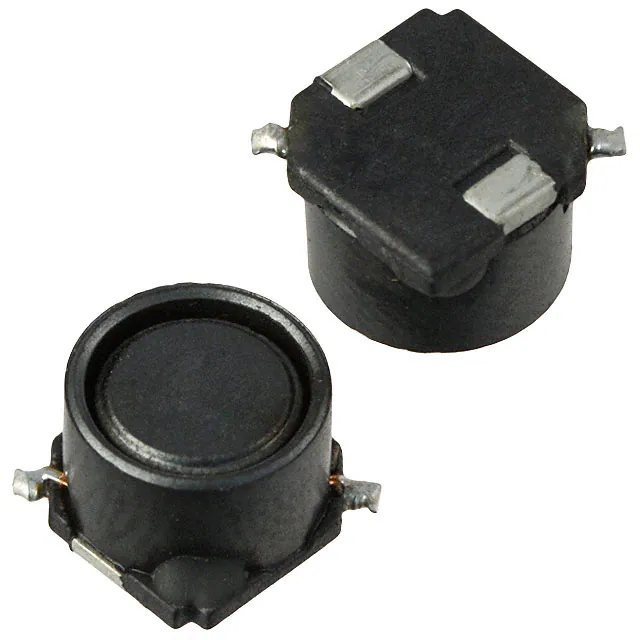

SRR7045-680MFIXED IND 68UH 770MA 210MOHM SMD |
15,894 | - |
|
数据表 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 750mA | - | Shielded | 210mOhm Max | 68 µH | 22 @ 2.52MHz | 10MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
|
SRR7045-331MFIXED IND 330UH 400MA 730MOHM SM |
14,969 | - |
|
数据表 |
SRR7045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 270mA | - | Shielded | 730mOhm Max | 330 µH | 65 @ 796kHz | 4MHz | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.189" (4.80mm) |
|
1235AS-H-100M=P3FIXED IND 10UH 1.7A 132 MOHM SMD |
14,159 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 1.3A | - | Shielded | 132mOhm Max | 10 µH | - | - | Surface Mount | - | 0.185" L x 0.177" W (4.70mm x 4.50mm) | - | -40°C ~ 85°C | 100 kHz | 0.071" (1.80mm) |
|
XAL5050-682MECFIXED IND 6.8UH 6.4A 29.45MOHM |
17,989 | - |
|
数据表 |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 6.4 A | 6A | - | Shielded | 29.45mOhm Max | 6.8 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 125°C | 1 MHz | 0.201" (5.10mm) |
|
|
XAL5050-153MECFIXED IND 15UH 3.9A 76.7MOHM SM |
14,593 | - |
|
数据表 |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 3.9 A | 3.7A | - | Shielded | 76.7mOhm Max | 15 µH | - | 13MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 125°C | 1 MHz | 0.201" (5.10mm) |
|
|
SDCL1005C6N8HTDFFIXED IND 6.8NH 300MA 300MOHM SM |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 300 mA | - | 0402 | Unshielded | 300mOhm Max | 6.8 nH | 8 @ 100MHz | 3.9GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
XAL5050-562MECFIXED IND 5.6UH 7.2A 25.8MOHM SM |
5,822 | - |
|
数据表 |
XAL50XX | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 7.2 A | 6.3A | - | Shielded | 25.8mOhm Max | 5.6 µH | - | 25MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 125°C | 1 MHz | 0.201" (5.10mm) |
|
|
SDCL1005CR15HTDFFIXED IND 150NH 100MA 3.2OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 100 mA | - | 0402 | Unshielded | 3.2Ohm Max | 150 nH | 8 @ 100MHz | 550MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
XGL5050-222MECPOWER INDUCTOR, SHIELDED, COMPOS |
3,198 | - |
|
数据表 |
XGL5050 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 13.8 A | 10.7A | - | Shielded | 8.2mOhm Max | 2.2 µH | - | 37MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 165°C | 1 MHz | 0.201" (5.10mm) |
|
|
SDCL1005C82NHTDFFIXED IND 82NH 150MA 2.4 OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 150 mA | - | 0402 | Unshielded | 2.4Ohm Max | 82 nH | 8 @ 100MHz | 750MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005CR10HTDFFIXED IND 100NH 150MA 2.6OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 150 mA | - | 0402 | Unshielded | 2.6Ohm Max | 100 nH | 8 @ 100MHz | 700MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005CR33JTDFFIXED IND 330NH 50MA 7 OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 50 mA | - | 0402 | Unshielded | 7Ohm Max | 330 nH | 6 @ 50MHz | 350MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 50 MHz | 0.026" (0.65mm) |
|
|
SDCL1005C1N6STDFFIXED IND 1.6NH 300MA 100MOHM SM |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 | Unshielded | 100mOhm Max | 1.6 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
|
|
SDCL1005CR18JTDFFIXED IND 180NH 100MA 3.7OHM SMD |
0 | - |
|
数据表 |
SDCL-D | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 | Unshielded | 3.7Ohm Max | 180 nH | 8 @ 100MHz | 500MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.026" (0.65mm) |
