固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150T-1.26-112FIXED IND 112UH 1.26A 300MOHM TH |
109 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 1.26 A | - | - | Unshielded | 300mOhm | 112 µH | - | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.358" (9.10mm) |
|

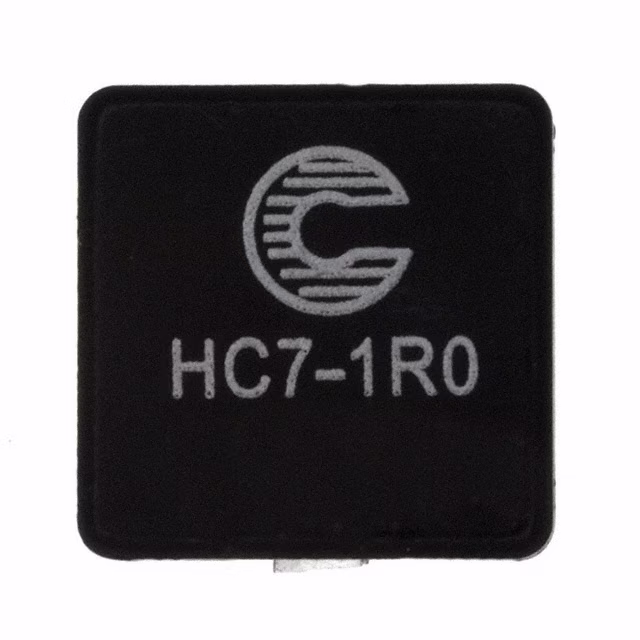

HC7-1R0-RFIXED IND 1UH 20.3A 2.1 MOHM SMD |
831 | - |
|
数据表 |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 20.3 A | 37.1A | - | Unshielded | 2.1mOhm Max | 1 µH | - | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | - | -40°C ~ 155°C | 100 kHz | 0.217" (5.50mm) |
.jpg)
|
IHLP7575GZER1R0M5AFIXED IND 1.0UH 55A 1.26 MOHM HI |
220 | - |
|
数据表 |
IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 55 A | 81A | - | Shielded | 1.34mOhm Max | 1 µH | - | 31.5MHz | Surface Mount | AEC-Q200 | 0.752" L x 0.750" W (19.10mm x 19.05mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
8532R-15LFIXED IND 15UH 2.97A 40 MOHM SMD |
606 | - |
|
数据表 |
8532R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 2.97 A | 1.6A | - | Unshielded | 40mOhm Max | 15 µH | - | - | Surface Mount | - | 0.860" L x 0.320" W (21.84mm x 8.12mm) | - | -55°C ~ 125°C | 1 kHz | 0.286" (7.26mm) |
|
2474R-31LFIXED IND 330UH 740MA 650MOHM TH |
846 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 740 mA | 350mA | - | Unshielded | 650mOhm Max | 330 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
CDRH6D28NP-330NCFIXED IND 33UH 970MA 165MOHM SMD |
79,006 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 970 mA | - | - | Shielded | 165mOhm Max | 33 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
|
2474R-12LFIXED IND 8.2UH 3.55A 28 MOHM TH |
605 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 3.55 A | 2.2A | - | Unshielded | 28mOhm Max | 8.2 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
2474R-29LFIXED IND 220UH 840MA 505MOHM TH |
408 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 840 mA | 430mA | - | Unshielded | 505mOhm Max | 220 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
CDRH6D28NP-470NCFIXED IND 47UH 800MA 238MOHM SMD |
25,917 | - |
|
数据表 |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 800 mA | - | - | Shielded | 238mOhm Max | 47 µH | - | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
IHLP8787MZERR47M51FIXED IND 470NH 80A 670U OHM SMD |
216 | - |
|
数据表 |
IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 80 A | 100A | - | Shielded | 670µOhm Max | 470 nH | - | 47.5MHz | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.512" (13.00mm) |
|
B82476B1154M100FIXED IND 150UH 1.1A 330MOHM SMD |
9,049 | - |
|
数据表 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1A | - | Unshielded | 330mOhm Max | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.200" (5.08mm) |
|
|
2474R-18LFIXED IND 27UH 2.25A 70 MOHM TH |
106 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 2.25 A | 1.2A | - | Unshielded | 70mOhm Max | 27 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
AIAC-4125C-R538J-TFIXED IND 538NH 2A 42 MOHM SMD |
4,656 | - |
|
数据表 |
AIAC-4125C | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±5% | 2 A | - | - | Unshielded | 42mOhm Max | 538 nH | 100 @ 50MHz | 400MHz | Surface Mount | - | 0.354" L x 0.173" W (9.00mm x 4.40mm) | - | -40°C ~ 125°C | 50 MHz | 0.197" (5.00mm) |
|
B82559B4222A019FIXED IND 2.2UH 27.2A 1.8MOHM SM |
141 | - |
|
数据表 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 27.2 A | 43.6A | - | Shielded | 1.8mOhm | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.783" L x 0.728" W (19.90mm x 18.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.378" (9.60mm) |
|
CLF6045NIT-101M-DFIXED IND 100UH 610MA 384MOHM SM |
3,625 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 610 mA | 610mA | - | Shielded | 384mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.236" W (6.30mm x 6.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
IHLP2020BZERR47M01FIXED IND 470NH 11.5A 9.4MOHM SM |
3,078 | - |
|
数据表 |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11.5 A | 21A | - | Shielded | 9.4mOhm Max | 470 nH | - | 98MHz | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
.jpg)
|
AIRD-03-392KFIXED IND 3.9MH 1A 1.67 OHM TH |
385 | - |
|
数据表 |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.8A | - | Unshielded | 1.67Ohm Max | 3.9 mH | - | - | Through Hole | - | 1.102" Dia (28.00mm) | - | -25°C ~ 85°C | 1 Hz | 0.827" (21.00mm) |
|
SLF6028T-220MR77-PFFIXED IND 22UH 1.3A 124.8MOHM SM |
2,533 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 770mA | - | Shielded | 124.8mOhm Max | 22 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
|
S1008R-101KFIXED IND 100NH 1.12A 90MOHM SMD |
1,443 | - |
|
数据表 |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 1.12 A | - | 1008 (2520 Metric) | Shielded | 90mOhm Max | 100 nH | 40 @ 25MHz | 383MHz | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | - | -55°C ~ 125°C | 25 MHz | 0.095" (2.41mm) |
|
2300HT-120-V-RCFIXED IND 12UH 22.4A 6 MOHM TH |
107 | - |
|
数据表 |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±15% | 22.4 A | - | - | Shielded | 6mOhm Max | 12 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 200°C | 1 kHz | - |
