固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLCF4028T-4R7N1R5-2FIXED IND 4.7UH 1.57A 62MOHM SMD |
7,755 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.57 A | 1.57A | - | Shielded | 62mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.110" (2.80mm) |
|
HCM1A1707-6R8-RFIXED IND 6.8UH 12A 7.55MOHM SMD |
192 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 12 A | 18A | - | Shielded | 7.55mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
DR74-150-RFIXED IND 15UH 2.11A 63.7MOHM SM |
7,319 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.11 A | 2.48A | - | Shielded | 63.7mOhm | 15 µH | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.171" (4.35mm) |
|
|
HCM1A1707-150-RFIXED IND 15UH 9A 15.5 MOHM SMD |
150 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 9 A | 14A | - | Shielded | 15.5mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.677" L x 0.663" W (17.20mm x 16.85mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|

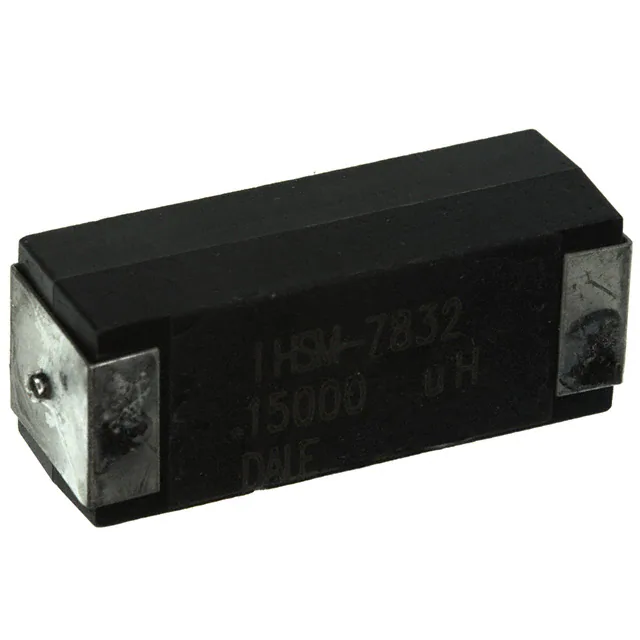

IHSM7832ER153LFIXED IND 15MH 120MA 37.8OHM SMD |
245 | - |
|
数据表 |
IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 120 mA | 55mA | - | Unshielded | 37.8Ohm Max | 15 mH | - | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | - | -55°C ~ 125°C | 1 kHz | 0.285" (7.24mm) |
|
2474R-41LFIXED IND 2.2MH 280MA 4.4 OHM TH |
5,138 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 280 mA | 140mA | - | Unshielded | 4.4Ohm Max | 2.2 mH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
4922R-47LFIXED IND 6.8MH 80MA 62 OHM SMD |
792 | - |
|
数据表 |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 80 mA | 80mA | - | Unshielded | 62Ohm Max | 6.8 mH | - | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | - | -55°C ~ 125°C | 1 kHz | 0.230" (5.84mm) |
|
HC8-1R2-RFIXED IND 1.2UH 16A 4.7 MOHM SMD |
532 | - |
|
数据表 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 16 A | 25.5A | - | Unshielded | 4.7mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
LQW03AW8N2J00DFIXED IND 8.2NH 290MA 260MOHM SM |
7,128 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 290 mA | - | - | Unshielded | 260mOhm Max | 8.2 nH | 40 @ 900MHz | 8.5GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
SH150S-1.87-53FIXED IND 53UH 1.87A 130MOHM SMD |
293 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.87 A | - | - | Unshielded | 130mOhm | 53 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|
|
LQW03AW4N7J00DFIXED IND 4.7NH 620MA 90MOHM SMD |
6,541 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 620 mA | - | - | Unshielded | 90mOhm Max | 4.7 nH | 45 @ 900MHz | 9.5GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
|
LQW03AW15NJ00DFIXED IND 15.5NH 230MA 600 MOHM |
4,297 | - |
|
数据表 |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 230 mA | - | - | Unshielded | 600mOhm Max | 15.5 nH | 38 @ 900MHz | 5.7GHz | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
PCMB053T-3R3MSFIXED IND 3.3UH 5A 38 MOHM SMD |
3,200 | - |
|
数据表 |
PCMB | 1919 (4848 Metric) | Tape & Reel (TR) | Active | - | - | ±20% | 5 A | 7A | - | Unshielded | 38mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.191" L x 0.185" W (4.85mm x 4.70mm) | - | - | 100 kHz | 0.110" (2.80mm) |
|

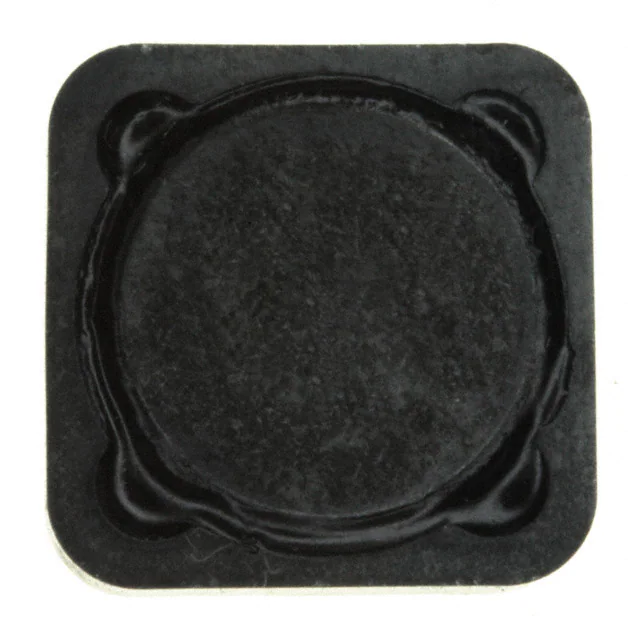

SPD127R-154MFIXED IND 150UH 1.4A 320MOHM SMD |
1,466 | - |
|
数据表 |
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.4A | - | Shielded | 320mOhm Max | 150 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -55°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|
ECS-MPIL0630-5R6MCFIXED IND 5.6UH 6A 42 MOHM SMD |
2,905 | - |
|
数据表 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6 A | - | - | Shielded | 42mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | - | - | 100 kHz | 0.118" (3.00mm) |
|
|
SPD127R-474MFIXED IND 470UH 800MA 980MOHM SM |
793 | - |
|
数据表 |
SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 800mA | - | Shielded | 980mOhm Max | 470 µH | - | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | -55°C ~ 125°C | 1 kHz | 0.315" (8.00mm) |
|

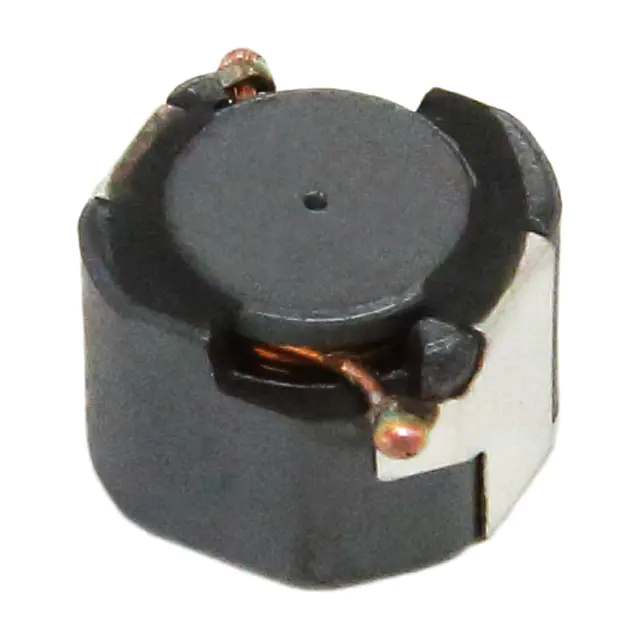

CLF6045T-101M-DFIXED IND 100UH 700MA 408MOHM SM |
2,840 | - |
|
数据表 |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | 640mA | - | Shielded | 408mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.244" L x 0.232" W (6.20mm x 5.90mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
ECS-MPIL0630-6R8MCFIXED IND 6.8UH 6A 50 MOHM SMD |
1,680 | - |
|
数据表 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 6 A | - | - | Shielded | 50mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | - | - | 100 kHz | 0.118" (3.00mm) |
|
|
ILC0402ER18NJFIXED IND 18NH 300MA 550MOHM SMD |
0 | - |
|
数据表 |
ILC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0402 (1005 Metric) | Unshielded | 550mOhm Max | 18 nH | 8 @ 100MHz | 2.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
|
|
ILC0402ER22NJFIXED IND 22NH 300MA 600MOHM SMD |
0 | - |
|
数据表 |
ILC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0402 (1005 Metric) | Unshielded | 600mOhm Max | 22 nH | 8 @ 100MHz | 1.9GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 105°C | 100 MHz | 0.022" (0.55mm) |
