固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4922R-32LFIXED IND 390UH 380MA 2.73OHM SM |
1,439 | - |
|
数据表 |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 380 mA | 380mA | - | Unshielded | 2.73Ohm Max | 390 µH | - | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | - | -55°C ~ 125°C | 1 kHz | 0.230" (5.84mm) |
|
SPM12565VT-1R5M-DFIXED IND 1.5UH 22.3A 0.0028OHM |
349 | - |
|
数据表 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 22.3 A | 32.8A | 1256 | Shielded | 2.8mOhm | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
L-05B11NJV6TFIXED IND 11NH 250MA SMD |
0 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 250 mA | - | 0201 (0603 Metric) | Unshielded | - | 11 nH | 5 @ 100MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 100°C | 100 MHz | 0.013" (0.33mm) |
.jpg)
|
L-05B4N3SV6TFIXED IND 4.3NH 300MA SMD |
0 | - |
|
数据表 |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0201 (0603 Metric) | Unshielded | - | 4.3 nH | 4 @ 100MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 100°C | 100 MHz | 0.013" (0.33mm) |
.jpg)
|
L-07CR10JV4TFIXED IND 100NH 100MA 2.5OHM SMD |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 (1005 Metric) | Unshielded | 2.5Ohm Max | 100 nH | 8 @ 100MHz | 850MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
HCM1A1707V2-330-RFIXED IND 33UH 6.2A 37 MOHM SMD |
193 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 6.2 A | 9A | - | Shielded | 37mOhm Max | 33 µH | - | 3MHz | Surface Mount | AEC-Q200 | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
FP3-8R2-RFIXED IND 8.2UH 2.91A 74MOHM SMD |
5,226 | - |
|
数据表 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 2.91 A | 3.4A | - | Unshielded | 74mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | - | -40°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
2474R-37LFIXED IND 1MH 390MA 2.3 OHM TH |
939 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 390 mA | 200mA | - | Unshielded | 2.3Ohm Max | 1 mH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
IHD3EB152LFIXED IND 1.5MH 600MA 1.18OHM TH |
190 | - |
|
数据表 |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±15% | 600 mA | 460mA | - | Unshielded | 1.18Ohm Max | 1.5 mH | - | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
PG1083.323NLFIXED IND 32UH 9A 21.5 MOHM SMD |
760 | - |
|
数据表 |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | ±20% | 9 A | 12.5A | - | Unshielded | 21.5mOhm Max | 32 µH | - | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | - | -40°C ~ 130°C | 100 kHz | 0.492" (12.50mm) |
|

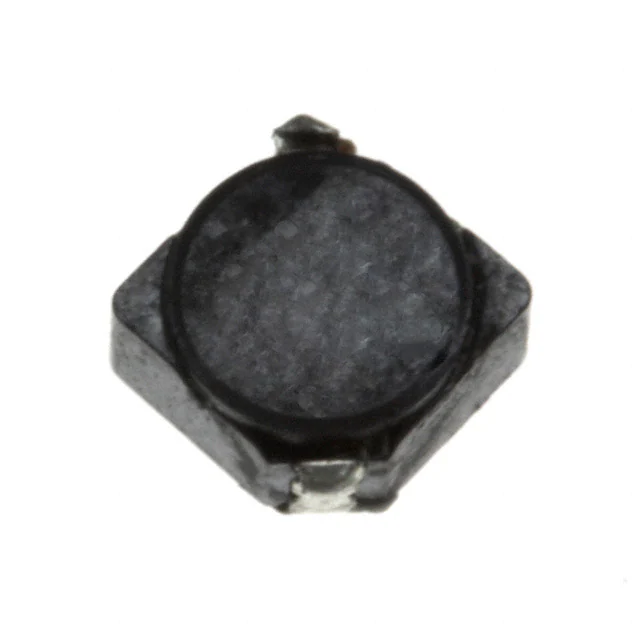

SPD42R-222MFIXED IND 2.2UH 1.35A 23MOHM SMD |
325 | - |
|
数据表 |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.35 A | 1.35A | - | Shielded | 23mOhm Max | 2.2 µH | - | 77MHz | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.115" (2.92mm) |
|
|
SPM12565VT-6R8M-DFIXED IND 6.8UH 11.6A 0.0103OHM |
518 | - |
|
数据表 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 11.6 A | 20.9A | 1256 | Shielded | 10.3mOhm | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
L-07CR12JV4TFIXED IND 120NH 100MA 2.5OHM SMD |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 0402 (1005 Metric) | Unshielded | 2.5Ohm Max | 120 nH | 8 @ 50MHz | 750MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 50 MHz | 0.024" (0.60mm) |
|
|
LRC0402CJ43NGV001TFIXED IND 43NH 150MA 1.3 OHM SMD |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 150 mA | - | 0402 (1005 Metric) | Unshielded | 1.3Ohm Max | 43 nH | 8 @ 100MHz | 1.3GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
LRC0402CJ13NGV001TFIXED IND 13NH 250MA 550MOHM SMD |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 250 mA | - | 0402 (1005 Metric) | Unshielded | 550mOhm Max | 13 nH | 8 @ 100MHz | 3.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
LRC0402CK13NGV001TFIXED IND 13NH 250MA 550MOHM SMD |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 250 mA | - | 0402 (1005 Metric) | Unshielded | 550mOhm Max | 13 nH | 8 @ 100MHz | 3.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
LRC0402CS1N9GV001TFIXED IND 1.9NH 300MA 150MOHM SM |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 150mOhm Max | 1.9 nH | 8 @ 100MHz | 13GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
|
LRC0402CJ23NGV001TFIXED IND 23NH 200MA 850MOHM SMD |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 200 mA | - | 0402 (1005 Metric) | Unshielded | 850mOhm Max | 23 nH | 8 @ 100MHz | 2.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
|
B82498F1332J000FIXED IND 3.3UH 100MA 3.3OHM SMD |
9,042 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 100 mA | - | 0805 (2012 Metric) | Unshielded | 3.3Ohm Max | 3.3 µH | 20 @ 7.96MHz | 250MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
|
LRC0402CK23NGV001TFIXED IND 23NH 200MA 850MOHM SMD |
0 | - |
|
数据表 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±10% | 200 mA | - | 0402 (1005 Metric) | Unshielded | 850mOhm Max | 23 nH | 8 @ 100MHz | 2.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 100°C | 100 MHz | 0.024" (0.60mm) |
