固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL5030-182MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,908 | - |
|
数据表 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 14.1 A | 10.6A | - | Shielded | 8.7mOhm Max | 1.8 µH | - | 37MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 165°C | 1 MHz | 0.122" (3.10mm) |
|
|
XGL5030-562MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,810 | - |
|
数据表 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 7.9 A | 6A | - | Shielded | 27mOhm Max | 5.6 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 165°C | 1 MHz | 0.122" (3.10mm) |
|
|
XGL5030-181MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,678 | - |
|
数据表 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 31.8 A | 30A | - | Shielded | 1.6mOhm Max | 180 nH | - | 160MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 165°C | 1 MHz | 0.126" (3.20mm) |
|
CSEB0730H-4R7MSMD MOLDING POWER CHOKE |
1,612 | - |
|
数据表 |
CSEB0730H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 9.2 A | 9A | - | Shielded | 25mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.311" L x 0.299" W (7.90mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.126" (3.20mm) |
|
PA2729.113NLFIXED IND 10.9UH 12.5A 5.8 MOHM |
1,418 | - |
|
数据表 |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | ±15% | 12.5 A | 14.7A | - | Shielded | 5.8mOhm Max | 10.9 µH | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | - | -55°C ~ 130°C | - | 0.480" (12.20mm) |
|
|
XGL5030-682MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,266 | - |
|
数据表 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 7.3 A | 5.5A | - | Shielded | 32.1mOhm Max | 6.8 µH | - | 18MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 165°C | 1 MHz | 0.122" (3.10mm) |
|
L06033R9CGSTRFIXED IND 3.9NH 500MA 120MOHM SM |
18,016 | - |
|
数据表 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.2nH | 500 mA | - | 0603 (1608 Metric) | Unshielded | 120mOhm Max | 3.9 nH | 25 @ 450MHz | 6.5GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
|
L06036R8CGSTRFIXED IND 6.8NH 300MA 300MOHM SM |
12,215 | - |
|
数据表 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.2nH | 300 mA | - | 0603 (1608 Metric) | Unshielded | 300mOhm Max | 6.8 nH | 23 @ 450MHz | 4.5GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|

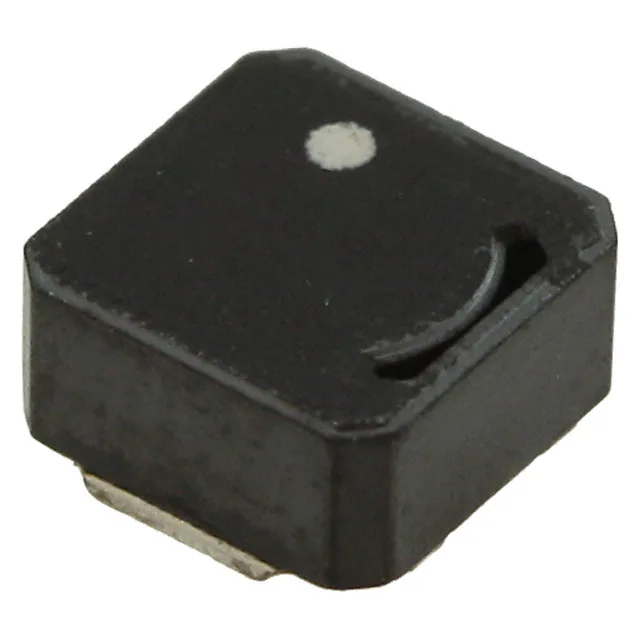

VLCF5028T-100M1R0-2FIXED IND 10UH 1.05A 83 MOHM SMD |
10,187 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.05 A | 1.05A | - | Shielded | 83mOhm Max | 10 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.110" (2.80mm) |
|
DFE2HCAHR47MJ0LFIXED IND 470NH 4.5A 25 MOHM SMD |
8,886 | - |
|
数据表 |
DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.5 A | 5.1A | 1008 | Shielded | 25mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 150°C | 1 MHz | 0.047" (1.20mm) |
|
104CDMCCDS-8R2MCFIXED IND 8.2UH 8.3A 27MOHM SMD |
7,771 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.3 A | 12A | SMD | Shielded | 27mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
104CDMCCDS-2R2MCFIXED IND 2.2UH 15A 7 MOHM SMD |
6,125 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 15 A | 21A | SMD | Shielded | 7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

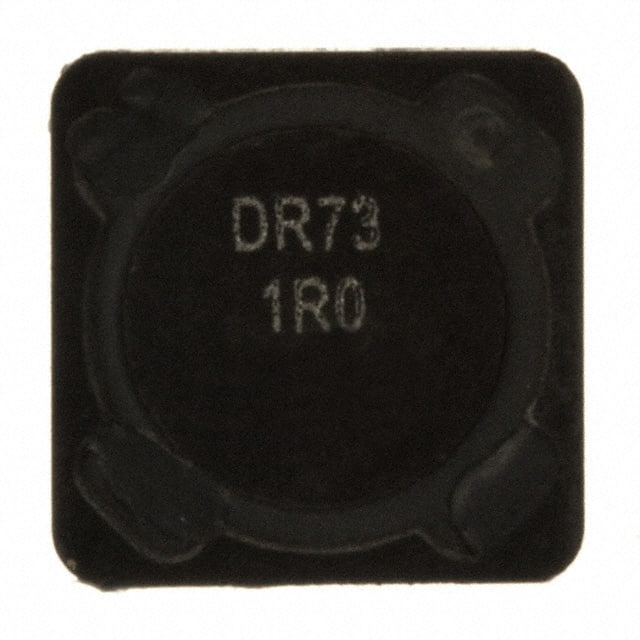

DR73-1R0-RFIXED IND 1UH 5.28A 10.2MOHM SMD |
5,672 | - |
|
数据表 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 5.28 A | 7.97A | - | Shielded | 10.2mOhm | 1 µH | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.140" (3.55mm) |
|
|
L06032R7CGSTRFIXED IND 2.7NH 750MA 80MOHM SMD |
5,393 | - |
|
数据表 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.2nH | 750 mA | - | 0603 (1608 Metric) | Unshielded | 80mOhm Max | 2.7 nH | 21 @ 450MHz | 9GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
78439358010WE-XHMA SMT POWER INDUCTOR 8080; |
355 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 17 A | 38.15A | - | Shielded | 2.1mOhm | 1 µH | - | 53MHz | Surface Mount | AEC-Q200 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
ETQ-P3LR24CFMFIXED IND 240NH 22A 1.12MOHM SMD |
2,193 | - |
|
数据表 |
PCC-M0730L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | ±20% | 22 A | - | - | Shielded | 1.12mOhm | 240 nH | - | - | Surface Mount | - | 0.343" L x 0.276" W (8.70mm x 7.00mm) | - | -40°C ~ 150°C | 1 MHz | 0.118" (3.00mm) |
|
|
XGL5030-601MECPOWER INDUCTOR, SHIELDED, COMPOS |
1,034 | - |
|
数据表 |
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 23 A | 18.7A | - | Shielded | 3.2mOhm Max | 600 nH | - | 75MHz | Surface Mount | AEC-Q200 | 0.216" L x 0.208" W (5.48mm x 5.28mm) | - | -40°C ~ 165°C | 1 MHz | 0.126" (3.20mm) |
|
MPXV1D1740LR68FIXED IND 680NH 32A 2 MOHM SMD |
204 | - |
|
数据表 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 32 A | 55A | - | Shielded | 2mOhm Max | 680 nH | - | 38MHz | Surface Mount | AEC-Q200 | 0.669" L x 0.673" W (17.00mm x 17.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
CSEB0770H-100MSMD MOLDING POWER CHOKE |
840 | - |
|
数据表 |
CSEB0770H | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 9.1 A | 8.9A | - | Shielded | 23mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.311" L x 0.299" W (7.90mm x 7.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.280" (7.10mm) |
|
PA2247.472NLTFIXED IND 4.7UH 30A 3.8MOHM SMD |
750 | - |
|
数据表 |
PA2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 30 A | 39A | - | Unshielded | 3.8mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | - | -55°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
