固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

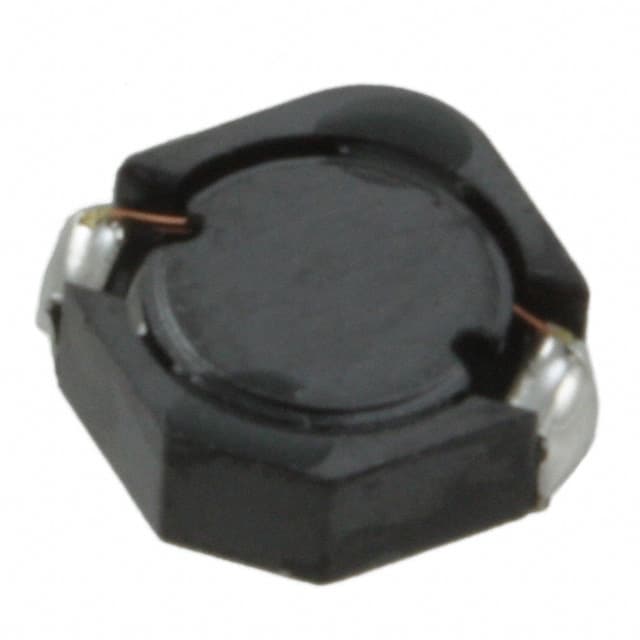

CDRH4D18CNP-100PCFIXED IND 10UH 830MA 156MOHM SMD |
7,303 | - |
|
数据表 |
CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 830 mA | - | - | Shielded | 156mOhm Max | 10 µH | - | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
XGL6020-471MECFIXED INDUCTOR 0.47UH SMD |
3,665 | - |
|
数据表 |
XGL6020 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 15.8 A | 19.3A | - | Shielded | 4.2mOhm Max | 470 nH | - | 75MHz | Surface Mount | AEC-Q200 | 0.264" L x 0.256" W (6.71mm x 6.51mm) | - | -40°C ~ 165°C | 1 MHz | 0.083" (2.10mm) |
|
|
XGL6020-822MECFIXED INDUCTOR 8.2UH SMD |
3,650 | - |
|
数据表 |
XGL6020 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 4.1 A | 4.8A | - | Shielded | 56.4mOhm Max | 8.2 µH | - | 14.5MHz | Surface Mount | AEC-Q200 | 0.264" L x 0.256" W (6.71mm x 6.51mm) | - | -40°C ~ 165°C | 1 MHz | 0.083" (2.10mm) |
|
SDR0805-4R7MLFIXED IND 4.7UH 3.7A 30 MOHM SMD |
6,747 | - |
|
数据表 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.7 A | 5A | - | Unshielded | 30mOhm Max | 4.7 µH | 31 @ 7.96MHz | 38MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
|
XGL6020-103MECFIXED INDUCTOR 10UH SMD |
3,346 | - |
|
数据表 |
XGL6020 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 3.5 A | 4.4A | - | Shielded | 77.5mOhm Max | 10 µH | - | 14MHz | Surface Mount | AEC-Q200 | 0.264" L x 0.256" W (6.71mm x 6.51mm) | - | -40°C ~ 165°C | 1 MHz | 0.083" (2.10mm) |
|
|
XGL6020-152MECFIXED INDUCTOR 1.5UH SMD |
3,180 | - |
|
数据表 |
XGL6020 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 9.1 A | 11.4A | - | Shielded | 11mOhm Max | 1.5 µH | - | 38MHz | Surface Mount | AEC-Q200 | 0.264" L x 0.256" W (6.71mm x 6.51mm) | - | -40°C ~ 165°C | 1 MHz | 0.083" (2.10mm) |
.jpg)
|
TFM201610ALVA2R2MTAAINDUCTORS FOR POWER CIRCUITS, AU |
6,542 | - |
|
数据表 |
TFM-ALVA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 2.1 A | 2A | 0806 | Shielded | 152mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 150°C | 1 MHz | 0.039" (1.00mm) |
|
82224CFIXED IND 220UH 100MA 8 OHM SMD |
5,013 | - |
|
数据表 |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 100 mA | - | 1210 | Unshielded | 8Ohm Max | 220 µH | 40 @ 800kHz | 10MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
|
SDR0805-681KLFIXED IND 680UH 280MA 2.8OHM SMD |
4,601 | - |
|
数据表 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 280 mA | 420mA | - | Unshielded | 2.8Ohm Max | 680 µH | 29 @ 796kHz | 3MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
|
SDR0805-101KLFIXED IND 100UH 720MA 450MOHM SM |
3,521 | - |
|
数据表 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 720 mA | 1.1A | - | Unshielded | 450mOhm Max | 100 µH | 12 @ 796kHz | 7MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
|
SDR0805-100MLFIXED IND 10UH 2.3A 70 MOHM SMD |
3,189 | - |
|
数据表 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.3 A | 3.2A | - | Unshielded | 70mOhm Max | 10 µH | 25 @ 2.52MHz | 22MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
|
SDR0805-680KLFIXED IND 68UH 850MA 300MOHM SMD |
2,633 | - |
|
数据表 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 850 mA | 1.3A | - | Unshielded | 300mOhm Max | 68 µH | 15 @ 2.52MHz | 8MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
|
82472CFIXED IND 4.7UH 800MA 190MOHM SM |
2,396 | - |
|
数据表 |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | - | 1210 | Unshielded | 190mOhm Max | 4.7 µH | 20 @ 1MHz | 58MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
|
82683CFIXED IND 68UH 200MA 2.55OHM SMD |
1,786 | - |
|
数据表 |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 200 mA | - | 1210 | Unshielded | 2.55Ohm Max | 68 µH | 40 @ 1MHz | 15MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
|
SDR0805-470KLFIXED IND 47UH 1A 200 MOHM SMD |
1,313 | - |
|
数据表 |
SDR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.6A | - | Unshielded | 200mOhm Max | 47 µH | 15 @ 2.52MHz | 9MHz | Surface Mount | - | 0.307" L x 0.307" W (7.80mm x 7.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.209" (5.30mm) |
|
|
82104CFIXED IND 100UH 160MA 3.5OHM SMD |
1,260 | - |
|
数据表 |
8200 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 160 mA | - | 1210 | Unshielded | 3.5Ohm Max | 100 µH | 40 @ 800kHz | 13MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 85°C | 10 kHz | 0.091" (2.30mm) |
|
22R686MCFIXED IND 68MH 26MA 242 OHM SMD |
170,923 | - |
|
数据表 |
2200RM | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 26 mA | - | - | Unshielded | 242Ohm Max | 68 mH | - | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 85°C | 1 kHz | 0.311" (7.90mm) |
|
B82498F1102J000FIXED IND 1UH 240MA 550 MOHM SMD |
28,120 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 240 mA | - | 0805 (2012 Metric) | Unshielded | 550mOhm Max | 1 µH | 20 @ 7.96MHz | 440MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
B82498F1222J000FIXED IND 2.2UH 130MA 1.6OHM SMD |
11,926 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 130 mA | - | 0805 (2012 Metric) | Unshielded | 1.6Ohm Max | 2.2 µH | 20 @ 7.96MHz | 330MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
SC30R22KTFIXED IND 220NH 1.12A 140MOHM TH |
4,034 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | ±10% | 1.12 A | - | - | Shielded | 140mOhm Max | 220 nH | 33 @ 25MHz | 510MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 25 MHz | - |
