固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLCM0603Z0B3N2TBINDUCTOR FIXED 3.2NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 300mOhm Max | 3.2 nH | 5 @ 100MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
HCM1A1707V2-150-RFIXED IND 15UH 11.8A 15.5MOHM SM |
129 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 11.8 A | 11A | - | Shielded | 15.5mOhm Max | 15 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
|
WLCM0603Z0B4N7TBINDUCTOR FIXED 4.7NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 4.7 nH | 5 @ 100MHz | 6.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
HCF1007-R68-RFIXED IND 680NH 26A 1.3 MOHM SMD |
999 | - |
|
数据表 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 26 A | 29A | - | Unshielded | 1.3mOhm | 680 nH | - | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.262" (6.65mm) |
|
|
WLCM0603Z0B5N1TBINDUCTOR FIXED 5.1NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 5.1 nH | 5 @ 100MHz | 6.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
WLCM0603Z0B3N9TBINDUCTOR FIXED 3.9NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 400 mA | - | 0201 | Unshielded | 300mOhm Max | 3.9 nH | 5 @ 100MHz | 6.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
PM4344.333NLTFIXED IND 33UH 10.7A 44MOHM SMD |
141 | - |
|
数据表 |
PM4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 10.7 A | 15A | - | Shielded | 44mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.697" L x 0.677" W (17.70mm x 17.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
WLCM0603Z0B5N6TBINDUCTOR FIXED 5.6NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 350 mA | - | 0201 | Unshielded | 400mOhm Max | 5.6 nH | 5 @ 100MHz | 6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
WLCM0603Z0B0N4TBINDUCTOR FIXED 0.4NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 850 mA | - | 0201 | Unshielded | 70mOhm Max | 400 pH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
HCM1A1707V2-680-RFIXED IND 68UH 5A 60 MOHM SMD |
130 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 5 A | 6.8A | - | Shielded | 60mOhm Max | 68 µH | - | 2MHz | Surface Mount | AEC-Q200 | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
|
WLCM0603Z0B1N3TBINDUCTOR FIXED 1.3NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 600 mA | - | 0201 | Unshielded | 140mOhm Max | 1.3 nH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
WLCM0603Z0B0N6TBINDUCTOR FIXED 0.6NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 800 mA | - | 0201 | Unshielded | 80mOhm Max | 0.6 nH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
78439346082WE-XHMA SMT POWER INDUCTOR 6060; |
692 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 5.3 A | 9.3A | - | Shielded | 23mOhm | 8.2 µH | - | 19MHz | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.240" (6.10mm) |
|
|
WLCM0603Z0B6N2TBINDUCTOR FIXED 6.2NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 300 mA | - | 0201 | Unshielded | 440mOhm Max | 6.2 nH | 5 @ 100MHz | 6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
78439346056WE-XHMA SMT POWER INDUCTOR 6060; |
662 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 6.9 A | 12.1A | - | Shielded | 15mOhm | 5.6 µH | - | 25MHz | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.240" (6.10mm) |
|
|
WLCM0603Z0B0N5TBINDUCTOR FIXED 0.5NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 800 mA | - | 0201 | Unshielded | 80mOhm Max | 500 pH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
WLCM0603Z0B0N3TBINDUCTOR FIXED 0.3NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 850 mA | - | 0201 | Unshielded | 70mOhm Max | 300 pH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|

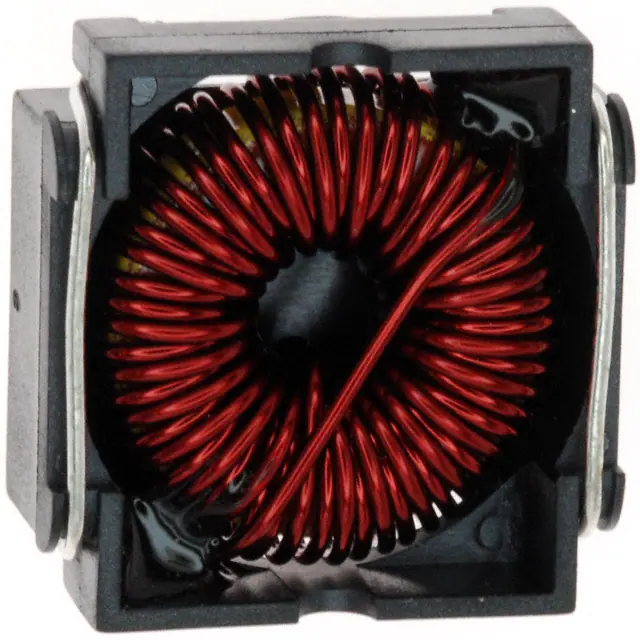

PE-54039SNLFIXED IND 53UH 3A 80 MOHM SMD |
994 | - |
|
数据表 |
- | Nonstandard | Bulk | Active | Toroidal | - | ±20% | 3 A | - | - | Shielded | 80mOhm | 53 µH | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|
|
WLCM0603Z0B1N6TBINDUCTOR FIXED 1.6NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 500 mA | - | 0201 | Unshielded | 180mOhm Max | 1.6 nH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
2200LL-820-H-RCFIXED IND 82UH 7.1A 24 MOHM TH |
580 | - |
|
数据表 |
2200LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 7.1 A | - | - | Unshielded | 24mOhm Max | 82 µH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 125°C | 1 kHz | 0.550" (13.97mm) |
