固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLCM0603Z0B2N3TBINDUCTOR FIXED 2.3NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 220mOhm Max | 2.3 nH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
WLCM0603Z0B3N6TBINDUCTOR FIXED 3.6NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 400 mA | - | 0201 | Unshielded | 300mOhm Max | 3.6 nH | 5 @ 100MHz | 8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
PA4344.222NLTFIXED IND 2.2UH 43.5A 2.7MOHM SM |
434 | - |
|
数据表 |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | - | 43.5 A | 46A | - | Shielded | 2.7mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.697" L x 0.677" W (17.70mm x 17.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
4590R-394KFIXED IND 390UH 1.52A 288MOHM TH |
1,705 | - |
|
数据表 |
4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.52 A | 880mA | - | Unshielded | 288mOhm Max | 390 µH | - | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
IHSM4825ER101LFIXED IND 100UH 730MA 672MOHM SM |
834 | - |
|
数据表 |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 730 mA | 500mA | - | Unshielded | 672mOhm Max | 100 µH | - | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | - | -55°C ~ 125°C | 1 kHz | 0.225" (5.72mm) |
|

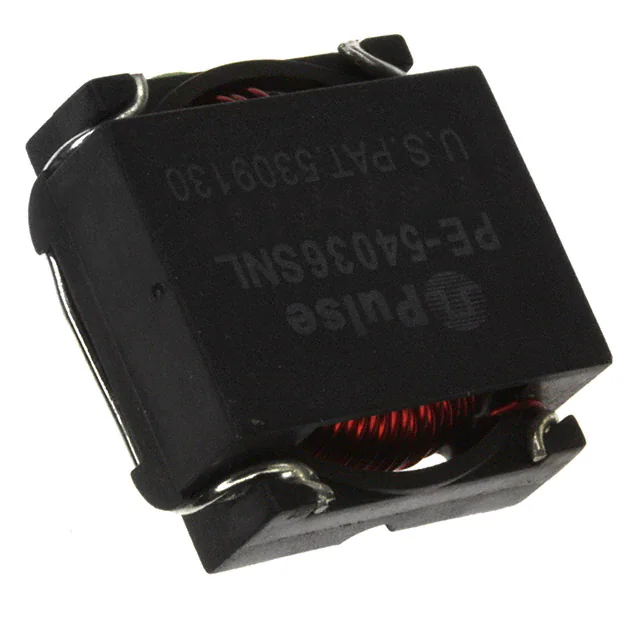

PE-54036SNLFIXED IND 168UH 1.81A 180MOHM SM |
168 | - |
|
数据表 |
- | Nonstandard | Bulk | Active | Toroidal | - | ±20% | 1.81 A | - | - | Shielded | 180mOhm | 168 µH | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|
P0146NLFIXED IND 25UH 2.43A 75 MOHM SMD |
308 | - |
|
数据表 |
Bobcat | Nonstandard | Tube | Active | Toroidal | - | - | 2.43 A | - | - | Unshielded | 75mOhm Max | 25 µH | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 130°C | - | 0.215" (5.46mm) |
|
|
WLCM0603Z0B3N0TBINDUCTOR FIXED 3.0NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 280mOhm Max | 3 nH | 5 @ 100MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|

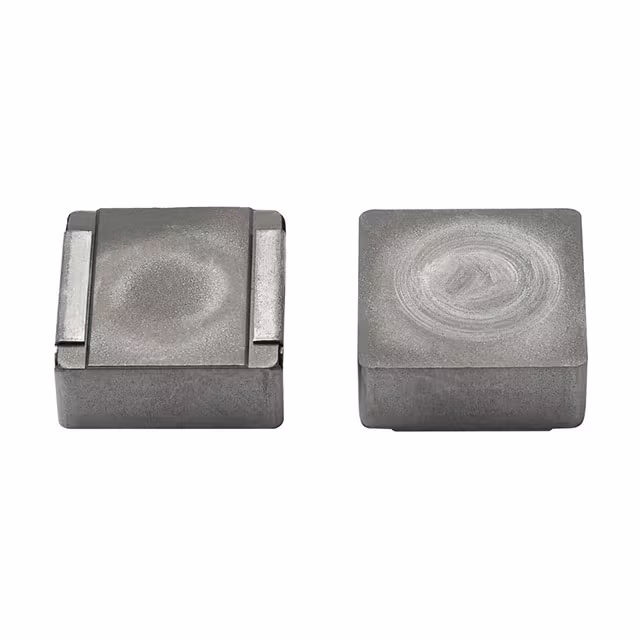

IHLP6767GZER330M5AIHLP-6767GZ-5A 33 20% ER E3 |
7,413 | - |
|
数据表 |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 8.8 A | 9.4A | - | Shielded | 38.9mOhm Max | 33 µH | - | 4.43MHz | Surface Mount | AEC-Q200 | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 155°C | 100 kHz | 0.276" (7.00mm) |
|
|
WLCM0603Z0B2N4TBINDUCTOR FIXED 2.4NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 240mOhm Max | 2.4 nH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|

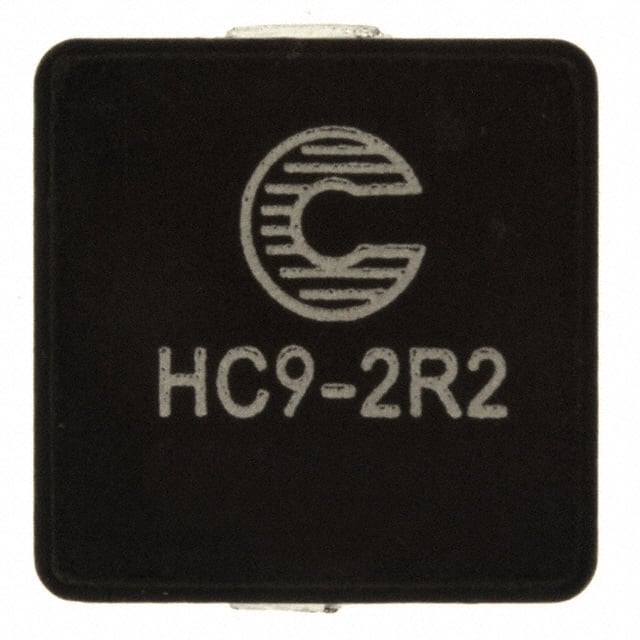

HC9-2R2-RFIXED IND 2.2UH 17.2A 3.37 MOHM |
137 | - |
|
数据表 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 17.2 A | 26A | - | Unshielded | 3.37mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.295" (7.50mm) |
|
|
WLCM0603Z0B3N3TBINDUCTOR FIXED 3.3NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 300mOhm Max | 3.3 nH | 5 @ 100MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
WLCM0603Z0B2N9TBINDUCTOR FIXED 2.9NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 280mOhm Max | 2.9 nH | 5 @ 100MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
WLCM0603Z0B3N4TBINDUCTOR FIXED 3.4NH 0201 |
0 | - |
|
数据表 |
CM | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 400 mA | - | 0201 | Unshielded | 300mOhm Max | 3.4 nH | 5 @ 100MHz | 8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
2321-V-RCFIXED IND 560UH 3.6A 140 MOHM TH |
268 | - |
|
数据表 |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 3.6 A | - | - | Unshielded | 140mOhm Max | 560 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
2314-V-RCFIXED IND 150UH 5A 71 MOHM TH |
236 | - |
|
数据表 |
2300 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 5 A | - | - | Unshielded | 71mOhm Max | 150 µH | - | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
IHLP6767GZER1R5M11FIXED IND 1.5UH 48A 1.62MOHM SMD |
227 | - |
|
数据表 |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 48 A | 31A | - | Shielded | 1.62mOhm Max | 1.5 µH | - | 26MHz | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
2311-H-RCFIXED IND 68UH 7.7A 30 MOHM TH |
221 | - |
|
数据表 |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 7.7 A | - | - | Unshielded | 30mOhm Max | 68 µH | - | - | Through Hole | - | 1.280" Dia (32.51mm) | - | -55°C ~ 105°C | 1 kHz | 0.650" (16.51mm) |
|
|
2315-H-RCFIXED IND 180UH 4.8A 78 MOHM TH |
160 | - |
|
数据表 |
2300 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 4.8 A | - | - | Unshielded | 78mOhm Max | 180 µH | - | - | Through Hole | - | 1.280" Dia (32.51mm) | - | -55°C ~ 105°C | 1 kHz | 0.650" (16.51mm) |
|
|
IHLP6767GZER220M1AIHLP-6767GZ-1A 22 20% ER E3 |
158 | - |
|
数据表 |
IHLP-6767GZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 12 A | 9.5A | - | Shielded | 21mOhm Max | 22 µH | - | 4.3MHz | Surface Mount | AEC-Q200 | 0.675" L x 0.675" W (17.15mm x 17.15mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
