固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN8040-R50YFIXED IND 500NH 10A 7 MOHM SMD |
5,626 | - |
|
数据表 |
SRN8040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 10 A | 12A | - | Shielded | 7mOhm Max | 500 nH | 13 @ 7.96MHz | 125MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
L06031R2CGSTRFIXED IND 1.2NH 1A 40 MOHM SMD |
3,650 | - |
|
数据表 |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.2nH | 1 A | - | 0603 (1608 Metric) | Unshielded | 40mOhm Max | 1.2 nH | 49 @ 450MHz | 10GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -55°C ~ 125°C | 450 MHz | 0.028" (0.71mm) |
|
SDE0805A-221KFIXED IND 220UH 800MA 960MOHM SM |
3,024 | - |
|
数据表 |
SDE0805A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | 600mA | - | Unshielded | 960mOhm Max | 220 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.217" (5.50mm) |
-1,2.jpg)
|

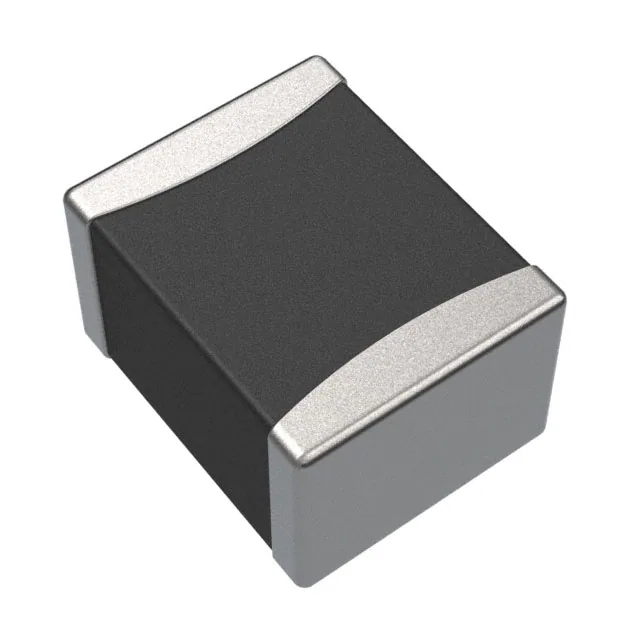

DFE2MCAH1R5MJ0LFIXED IND 1.5UH 1.8A 109MOHM SMD |
3,023 | - |
|
数据表 |
DFE2M | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 1.8 A | 2.1A | 0806 | Shielded | 109mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 150°C | 1 MHz | 0.047" (1.20mm) |
|
CDRH5D28NP-3R0NCFIXED IND 3UH 2.4A 24 MOHM SMD |
16,458 | - |
|
数据表 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 2.4 A | - | - | Shielded | 24mOhm Max | 3 µH | - | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
TYS8040221M-10FIXED IND 220UH 800MA 599MOHM SM |
11,889 | - |
|
数据表 |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 800 mA | 850mA | - | Shielded | 599mOhm Max | 220 µH | - | 3.5MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
|
SBC1-102-211FIXED IND 1MH 210MA 4.9 OHM TH |
9,851 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 210 mA | 140mA | - | Unshielded | 4.9Ohm Max | 1 mH | - | - | Through Hole | - | 0.217" Dia (5.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.413" (10.50mm) |
|
CDRH62BNP-220MC-BFIXED IND 22UH 740MA 340MOHM SMD |
7,673 | - |
|
数据表 |
CDRH62 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 740 mA | - | - | Shielded | 340mOhm Max | 22 µH | - | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | - | -40°C ~ 100°C | 1 kHz | 0.118" (3.00mm) |
|
CDRH4D18NP-100NCFIXED IND 10UH 610MA 200MOHM SMD |
6,663 | - |
|
数据表 |
CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 610 mA | - | - | Shielded | 200mOhm Max | 10 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.079" (2.00mm) |
|
|
CDRH5D28NP-150NCFIXED IND 15UH 1.1A 103 MOHM SMD |
4,415 | - |
|
数据表 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.1 A | - | - | Shielded | 103mOhm Max | 15 µH | - | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
7440329220FIXED IND 22UH 250MA 923MOHM SMD |
3,802 | - |
|
数据表 |
WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 250 mA | 400mA | 1210 | Unshielded | 923mOhm Max | 22 µH | 35 @ 1MHz | 19MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.067" (1.70mm) |
|
|
CDRH5D28NP-8R2NCFIXED IND 8.2UH 1.6A 53 MOHM SMD |
3,555 | - |
|
数据表 |
CDRH5D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.6 A | - | - | Shielded | 53mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|
CSEB0660H-1R5MSMD MOLDING POWER CHOKE |
700 | - |
|
数据表 |
CSEB0660H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 16.3 A | 16.3A | - | Shielded | 6.4mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.240" (6.10mm) |
|
|
CSEB0660H-1R2MSMD MOLDING POWER CHOKE |
660 | - |
|
数据表 |
CSEB0660H | Nonstandard | Cut Tape (CT) | Active | Molded | Metal Composite | ±20% | 17.3 A | 17.3A | - | Shielded | 5.5mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.262" L x 0.254" W (6.65mm x 6.45mm) | - | -40°C ~ 125°C | 100 kHz | 0.240" (6.10mm) |
|
CTM2474F-220L22UH AXIAL MOLDED INDUCTOR |
1,753 | - |
|
数据表 |
CTM2474F | Axial | Bulk | Active | Molded | - | ±15% | 2.66 A | 1.4A | Axial | Unshielded | 50mOhm Max | 22 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
CTM3F-680K68UH AXIAL MOLDED INDUCTOR |
1,797 | - |
|
数据表 |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | ±10% | 220 mA | - | Axial | Unshielded | 4.2Ohm Max | 68 µH | 55 @ 2.5MHz | 11MHz | Through Hole | - | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - | -55°C ~ 125°C | 2.5 MHz | - |
|
|
CTM3F-R15K.15UH AXIAL MOLDED INDUCTOR |
444 | - |
|
数据表 |
CTM3F | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | ±10% | 3.05 A | - | Axial | Unshielded | 30mOhm Max | 150 nH | 50 @ 25MHz | 510MHz | Through Hole | - | 0.190" Dia x 0.441" L (4.82mm x 11.20mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
TFM252012ALMAR33MTAAFIXED IND 330NH 5.7A 18 MOHM SMD |
2,880 | - |
|
数据表 |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 5.7 A | 7A | 1008 | Shielded | 18mOhm Max | 330 nH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 150°C | 1 MHz | 0.047" (1.20mm) |
|
CTS1F-121K120UH AXL MOLDED SHLD INDUCTOR |
391 | - |
|
数据表 |
CTS1F | Axial | Tape & Reel (TR) | Active | Molded | - | ±10% | 184 mA | - | Axial | Shielded | 5.2Ohm Max | 120 µH | 58 @ 790kHz | 11MHz | Through Hole | - | 0.110" Dia x 0.260" L (2.80mm x 6.60mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
|
TYS8040151M-10FIXED IND 150UH 850MA 410MOHM SM |
2,522 | - |
|
数据表 |
TYS8040 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 850 mA | 1.1A | - | Shielded | 410mOhm Max | 150 µH | - | 3.5MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.165" (4.20mm) |
