固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7843331200WE-CHSA SMT HIGH CURRENT INDUCTO |
110 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 5.6 A | 9.1A | - | Shielded | 33.2mOhm Max | 12 µH | - | 28MHz | Surface Mount | AEC-Q200 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | - | -55°C ~ 150°C | 100 kHz | 0.445" (11.30mm) |
|
TMS252012ALM-2R2MTAAFIXED IND 2.2UH 2.6A 84 MOHM SMD |
14,912 | - |
|
数据表 |
TMS-ALM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 2.6 A | 2.8A | 1008 | Shielded | 84mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
WLFI2012Z0MR56PBINDUCTOR FIXED 0.56UH 0805 |
0 | - |
|
数据表 |
FI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 150 mA | - | 0805 | Unshielded | 750mOhm Max | 560 nH | 25 @ 25MHz | 115MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 25 MHz | 0.057" (1.45mm) |
|
B82111B0000C013FIXED IND 8UH 3A 25 MOHM TH |
5,056 | - |
|
数据表 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3 A | - | - | Unshielded | 25mOhm | 8 µH | - | 145MHz | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B82111B0000C012FIXED IND 6UH 4A 17 MOHM TH |
3,099 | - |
|
数据表 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 4 A | - | - | Unshielded | 17mOhm | 6 µH | - | 170MHz | Through Hole | - | 0.295" Dia x 0.945" L (7.50mm x 24.00mm) | - | -55°C ~ 125°C | 1 MHz | - |
.jpg)
|
B82422H1224K000FIXED IND 220UH 100MA 10.9OHM SM |
14,106 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | - | 1210 (3225 Metric) | Unshielded | 10.9Ohm Max | 220 µH | 20 @ 796kHz | 5.5MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 150°C | 796 kHz | 0.094" (2.40mm) |
|
|
WLFI2012Z0MR47PBINDUCTOR FIXED 0.47UH 0805 |
0 | - |
|
数据表 |
FI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 200 mA | - | 0805 | Unshielded | 650mOhm Max | 470 nH | 25 @ 25MHz | 125MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 105°C | 25 MHz | 0.057" (1.45mm) |
|
L04022R2BHNTRFIXED IND 2.2NH 400MA 200MOHM SM |
13,186 | - |
|
数据表 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | ±0.1nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 200mOhm Max | 2.2 nH | 15 @ 450MHz | 15GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | - | 450 MHz | 0.018" (0.45mm) |
|
|
WLCM1608Z2JR12TBINDUCTOR FIXED 120NH 0603 |
0 | - |
|
数据表 |
CM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 1.2Ohm Max | 120 nH | 8 @ 50MHz | 500MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 50 MHz | 0.037" (0.95mm) |
|
SRP2512A-1R0MFIXED IND 1UH 3.5A 49 MOHM SMD |
11,026 | - |
|
数据表 |
SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 3.5 A | 4.4A | 1008 | Shielded | 49mOhm Max | 1 µH | 39 @ 1MHz | 82MHz | Surface Mount | AEC-Q200 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
WLCM1608Z2JR10TBINDUCTOR FIXED 100NH 0603 |
0 | - |
|
数据表 |
CM | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 | Unshielded | 1Ohm Max | 100 nH | 12 @ 100MHz | 600MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
MLG0603P11NHT000FIXED IND 11NH 250MA 1 OHM SMD |
0 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 1Ohm Max | 11 nH | 14 @ 500MHz | 3.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
LQW15CNR47J10DFIXED IND 470NH 350MA 0.66OHM SM |
9,629 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 350 mA | - | - | Unshielded | 660mOhm Max | 470 nH | - | 380MHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 10 MHz | 0.024" (0.60mm) |
|
RLB0913-102KFIXED IND 1MH 350MA 2.9 OHM TH |
8,921 | - |
|
数据表 |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 350 mA | 290mA | - | Unshielded | 2.9Ohm | 1 mH | 50 @ 252kHz | 1.3MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 125°C | 1 kHz | 0.492" (12.50mm) |
|
|
MLG0603P43NHT000FIXED IND 43NH 110MA 2.9 OHM SMD |
0 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 110 mA | - | 0201 (0603 Metric) | Unshielded | 2.9Ohm Max | 43 nH | 10 @ 300MHz | 1.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.33mm) |
|
|
LQW15CNR22J10DFIXED IND 220NH 450MA 0.47OHM SM |
6,999 | - |
|
数据表 |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 450 mA | - | - | Unshielded | 470mOhm Max | 220 nH | - | 1.4GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 100 MHz | 0.024" (0.60mm) |
|

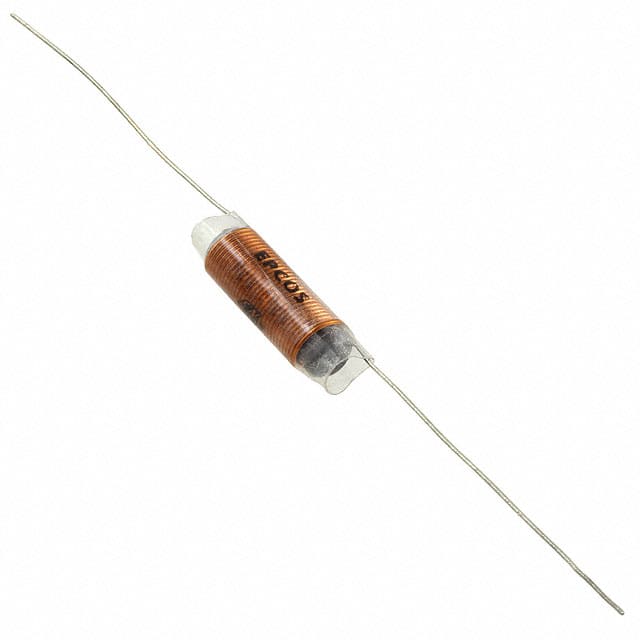

B82111B0000C014FIXED IND 17UH 2A 63 MOHM TH |
155 | - |
|
数据表 |
B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2 A | - | - | Unshielded | 63mOhm | 17 µH | - | 100MHz | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
|
MLG0603P51NHT000FIXED IND 51NH 100MA 3.5 OHM SMD |
0 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 100 mA | - | 0201 (0603 Metric) | Unshielded | 3.5Ohm Max | 51 nH | 10 @ 300MHz | 1.4GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 300 MHz | 0.013" (0.33mm) |
|
BDCD003225121R0MS1FIXED IND 1UH 4.2A 42 MOHM SMD |
5,711 | - |
|
数据表 |
BDCD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | - | ±20% | 4.2 A | 6.3A | 1210 | Shielded | 42mOhm Max | 1 µH | - | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 2 MHz | 0.047" (1.20mm) |
|
|
XEL4030-471MECFIXED IND 470NH 15.6A 4.6MOHM SM |
52,222 | - |
|
数据表 |
XEL4030 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 15.6 A | 15.5A | 1616 | Shielded | 4.6mOhm Max | 470 nH | - | 95MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.122" (3.10mm) |
