固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQP03TN2N6C02DFIXED IND 2.6NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 500 mA | - | 0201 (0603 Metric) | Unshielded | 200mOhm Max | 2.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN2N8C02DFIXED IND 2.8NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 500 mA | - | 0201 (0603 Metric) | Unshielded | 200mOhm Max | 2.8 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN2N9C02DFIXED IND 2.9NH 500MA 200MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 500 mA | - | 0201 (0603 Metric) | Unshielded | 200mOhm Max | 2.9 nH | 14 @ 500MHz | 9.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N1C02DFIXED IND 3.1NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 3.1 nH | 14 @ 500MHz | 8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N2C02DFIXED IND 3.2NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 3.2 nH | 14 @ 500MHz | 8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N4C02DFIXED IND 3.4NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 3.4 nH | 14 @ 500MHz | 7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
SC101R5KTFIXED IND 1.5UH 625MA 600MOHM TH |
0 | - |
|
数据表 |
SC10, Sigma Inductors | Axial | Tape & Reel (TR) | Active | - | - | ±10% | 625 mA | - | - | Unshielded | 600mOhm Max | 1.5 µH | 32 @ 7.9MHz | 170MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 7.9 MHz | - |
|
|
IHLW6767FIER330M8AINDUCT WW SNGL COIL MISC |
200 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LQP03TN3N5C02DFIXED IND 3.5NH 450MA 250MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 450 mA | - | 0201 (0603 Metric) | Unshielded | 250mOhm Max | 3.5 nH | 14 @ 500MHz | 7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N7C02DFIXED IND 3.7NH 400MA 300MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 400 mA | - | 0201 (0603 Metric) | Unshielded | 300mOhm Max | 3.7 nH | 14 @ 500MHz | 6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN3N8C02DFIXED IND 3.8NH 400MA 300MOHM SM |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±0.2nH | 400 mA | - | 0201 (0603 Metric) | Unshielded | 300mOhm Max | 3.8 nH | 14 @ 500MHz | 6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN11NJ02DFIXED IND 11NH 250MA 800MOHM SMD |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 800mOhm Max | 11 nH | 14 @ 500MHz | 2.9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN13NJ02DFIXED IND 13NH 250MA 800MOHM SMD |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 250 mA | - | 0201 (0603 Metric) | Unshielded | 800mOhm Max | 13 nH | 12 @ 500MHz | 2.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN16NJ02DFIXED IND 16NH 200MA 950MOHM SMD |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 200 mA | - | 0201 (0603 Metric) | Unshielded | 950mOhm Max | 16 nH | 12 @ 500MHz | 2.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN20NJ02DFIXED IND 20NH 150MA 2.3 OHM SMD |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 150 mA | - | 0201 (0603 Metric) | Unshielded | 2.3Ohm Max | 20 nH | 12 @ 500MHz | 2.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
LQP03TN24NJ02DFIXED IND 24NH 140MA 2.3 OHM SMD |
0 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±5% | 140 mA | - | 0201 (0603 Metric) | Unshielded | 2.3Ohm Max | 24 nH | 12 @ 500MHz | 2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

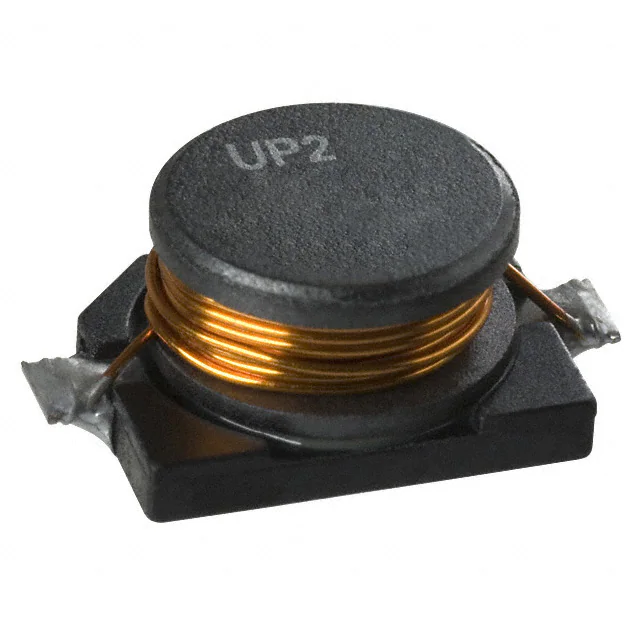

UP2-101-RFIXED IND 100UH 1.4A 277.2 MOHM |
1,164 | - |
|
数据表 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.4 A | 950mA | - | Unshielded | 277.2mOhm Max | 100 µH | - | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | - | - | 100 kHz | 0.231" (5.86mm) |
|
|
UP2-331-RFIXED IND 330UH 760MA 977.5 MOHM |
1,140 | - |
|
数据表 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 760 mA | 510mA | - | Unshielded | 977.5mOhm Max | 330 µH | - | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | - | - | 100 kHz | 0.231" (5.86mm) |
|
IHLD2525GGER150M5AFIXED IND 15UH 3.2A 95.8MOHM SMD |
317 | - |
|
数据表 |
IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | ±20% | 3.2 A | 3A | Nonstandard, 4 Lead | Shielded | 95.8mOhm Max | 15 µH | - | 15.1MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.286" W (7.80mm x 7.26mm) | - | -55°C ~ 155°C | 100 kHz | 0.301" (7.65mm) |
|
7443310022FIXED IND 220NH 27A 1.5 MOHM SMD |
300 | - |
|
数据表 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 27 A | 85A | - | Shielded | 1.5mOhm Max | 220 nH | - | 210MHz | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
