固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144A2102K000FIXED IND 1UH 2.2A 80 MOHM TH |
6,464 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.2 A | - | - | Unshielded | 80mOhm Max | 1 µH | 40 @ 7.96MHz | 200MHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
IHLD2525GGER100M5AFIXED IND 10UH 4.1A 66.34MOHM SM |
151 | - |
|
数据表 |
IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | ±20% | 4.1 A | 3.6A | Nonstandard, 4 Lead | Shielded | 66.34mOhm Max | 10 µH | - | 16.6MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.286" W (7.80mm x 7.26mm) | - | -55°C ~ 155°C | 100 kHz | 0.301" (7.65mm) |
|
LQW18CA56NJ00DFIXED IND 56NH 1.85A 40 MOHM SMD |
6,137 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 1.85 A | - | 0603 | Unshielded | 40mOhm Max | 56 nH | - | 2.2GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 10 MHz | 0.037" (0.95mm) |
|
DRA127-680-RFIXED IND 68UH 2.333A 115MOHM SM |
143 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.333 A | 4.18A | - | Shielded | 115mOhm | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.315" (8.00mm) |
|
|
LQW18CAR27J00DFIXED IND 270NH 900MA 150MOHM SM |
5,393 | - |
|
数据表 |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 900 mA | - | 0603 | Unshielded | 150mOhm Max | 270 nH | - | 1.05GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 85°C | 10 MHz | 0.037" (0.95mm) |
|
B82144A2103K000FIXED IND 10UH 1.4A 220 MOHM TH |
5,217 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.4 A | - | - | Unshielded | 220mOhm Max | 10 µH | 60 @ 2.52MHz | 60MHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B82144A2222K000FIXED IND 2.2UH 1.9A 110 MOHM TH |
4,166 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.9 A | - | - | Unshielded | 110mOhm Max | 2.2 µH | 40 @ 7.96MHz | 140MHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|
|
IHLD2525GGER220M5AFIXED IND 22UH 2.2A 164.8MOHM SM |
132 | - |
|
数据表 |
IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | ±20% | 2.2 A | 2.5A | Nonstandard, 4 Lead | Shielded | 164.8mOhm Max | 22 µH | - | 10.9MHz | Surface Mount | AEC-Q200 | 0.307" L x 0.286" W (7.80mm x 7.26mm) | - | -55°C ~ 155°C | 100 kHz | 0.301" (7.65mm) |
|
1812R-562JFIXED IND 5.6UH 427MA 1.1OHM SMD |
11,749 | - |
|
数据表 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 427 mA | - | 1812 | Unshielded | 1.1Ohm Max | 5.6 µH | 50 @ 7.9MHz | 33MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
|
1812R-332JFIXED IND 3.3UH 501MA 800MOHM SM |
8,270 | - |
|
数据表 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 501 mA | - | 1812 | Unshielded | 800mOhm Max | 3.3 µH | 50 @ 7.9MHz | 45MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.134" (3.40mm) |
|
|
1812R-224JFIXED IND 220UH 142MA 10 OHM SMD |
3,864 | - |
|
数据表 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 142 mA | - | 1812 | Unshielded | 10Ohm Max | 220 µH | 40 @ 790kHz | 4MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 790 kHz | 0.134" (3.40mm) |
|
|
1812R-273JFIXED IND 27UH 236MA 3.6 OHM SMD |
443 | - |
|
数据表 |
1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | ±5% | 236 mA | - | 1812 | Unshielded | 3.6Ohm Max | 27 µH | 50 @ 2.5MHz | 12MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -55°C ~ 125°C | 2.5 MHz | 0.134" (3.40mm) |
.jpg)
|
AIRD-01-470KFIXED IND 47UH 2.8A 62 MOHM TH |
364 | - |
|
数据表 |
AIRD-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | 11A | - | Unshielded | 62mOhm Max | 47 µH | - | - | Through Hole | - | 0.650" Dia (16.50mm) | - | -25°C ~ 85°C | 1 kHz | 0.827" (21.00mm) |
|

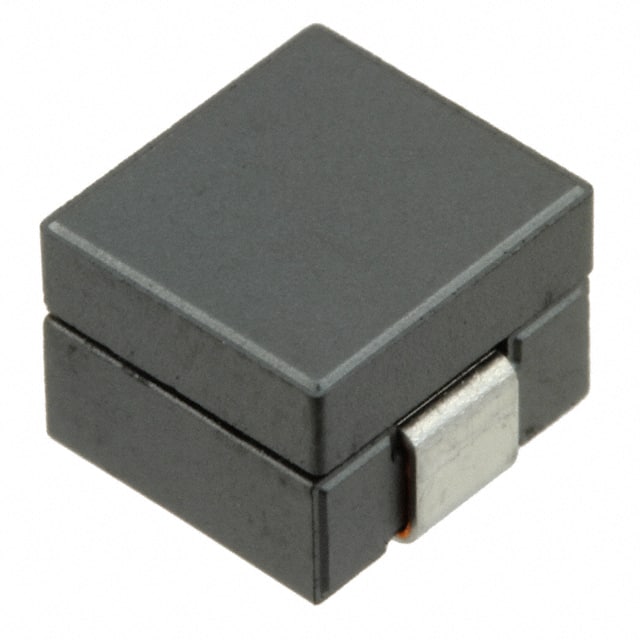

VLB7050HT-R11MFIXED IND 110NH 36A 0.27MOHM SMD |
342 | - |
|
数据表 |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 36 A | 47A | - | Unshielded | 0.27mOhm Max | 110 nH | - | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|
UP2-150-RFIXED IND 15UH 3.6A 44.9MOHM SMD |
600 | - |
|
数据表 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.6 A | 2.4A | - | Unshielded | 44.9mOhm Max | 15 µH | - | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | - | - | 100 kHz | 0.231" (5.86mm) |
|
ASPIAIG-F1265-100M-TFIXED IND 10UH 10A 16.5 MOHM SMD |
996 | - |
|
数据表 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 10 A | 15.5A | 1265 | Shielded | 16.5mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
|
ASPIAIG-F1265-6R8M-TFIXED IND 6.8UH 11.5A 11.5 MOHM |
977 | - |
|
数据表 |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11.5 A | 18A | 1265 | Shielded | 11.5mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.492" W (13.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
B82144A2473J000FIXED IND 47UH 800MA 500 MOHM TH |
3,391 | - |
|
数据表 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 800 mA | - | - | Unshielded | 500mOhm Max | 47 µH | 40 @ 2.52MHz | 5MHz | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|

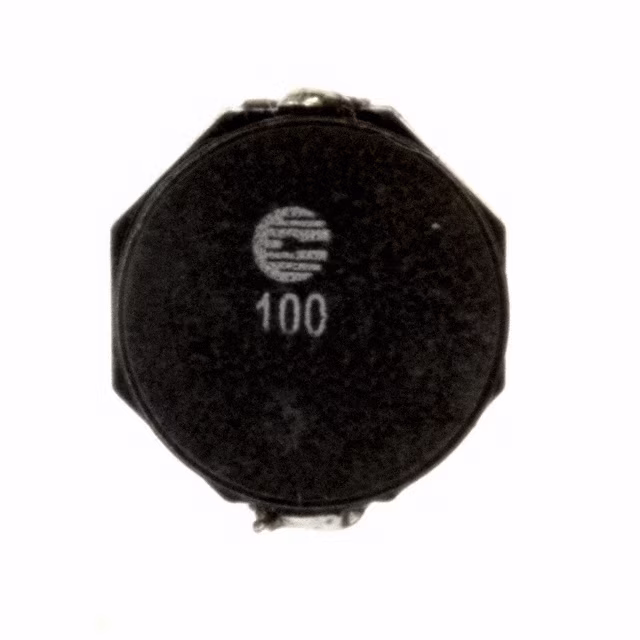

SD8350-100-RFIXED IND 10UH 3.2A 36 MOHM SMD |
833 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.2 A | 4A | - | Shielded | 36mOhm Max | 10 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
48330SCFIXED IND 33UH 2.8A 73 MOHM SMD |
3,187 | - |
|
数据表 |
4800S | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 2.8 A | - | - | Shielded | 73mOhm Max | 33 µH | 31 @ 1MHz | 11MHz | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | - | -40°C ~ 85°C | 10 kHz | 0.236" (6.00mm) |
