固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG0603P4N3HT000FIXED IND 4.3NH 350MA 400MOHM SM |
0 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 350 mA | - | 0201 (0603 Metric) | Unshielded | 400mOhm Max | 4.3 nH | 14 @ 500MHz | 5.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
XAL4030-332MECFIXED IND 3.3UH 6.6A 28.6MOHM SM |
49,497 | - |
|
数据表 |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 6.6 A | 5.5A | 1616 | Shielded | 28.6mOhm Max | 3.3 µH | - | 43MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
PA4331.102NLTFIXED IND 1UH 2.7A 54 MOHM SMD |
4,295 | - |
|
数据表 |
PA4331.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 2.7 A | 4.2A | - | Shielded | 54mOhm Max | 1 µH | - | 51MHz | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | - | -40°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
XAL4030-472MECFIXED IND 4.7UH 5.1A 44.1MOHM SM |
31,769 | - |
|
数据表 |
XAL4000 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 5.1 A | 4.5A | 1616 | Shielded | 44.1mOhm Max | 4.7 µH | - | 36MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.122" (3.10mm) |
Series.jpg)
|
PE-0201CC100JTTFIXED IND 10NH 220MA 510MOHM SMD |
0 | - |
|
数据表 |
0201CC | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 220 mA | - | 0201 (0603 Metric) | Unshielded | 510mOhm Max | 10 nH | 5 @ 100MHz | 2.9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | 100 MHz | 0.013" (0.33mm) |
|
|
XEL4030-682MECFIXED IND 6.8UH 3.9A 74.1MOHM SM |
27,828 | - |
|
数据表 |
XEL4030 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 3.9 A | 3.6A | 1616 | Shielded | 74.1mOhm Max | 6.8 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.122" (3.10mm) |
|
|
PE-0201CC150JTTFIXED IND 15NH 180MA 710MOHM SMD |
0 | - |
|
数据表 |
0201CC | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 180 mA | - | 0201 (0603 Metric) | Unshielded | 710mOhm Max | 15 nH | 5 @ 100MHz | 2.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | 100 MHz | 0.013" (0.33mm) |
|
|
XEL4030-102MECFIXED IND 1UH 10.7A 9.78MOHM SM |
27,010 | - |
|
数据表 |
XEL4030 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 10.7 A | 9A | 1616 | Shielded | 9.78mOhm Max | 1 µH | - | 65MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.122" (3.10mm) |
|
|
PE-0201CC180JTTFIXED IND 18NH 170MA 810MOHM SMD |
0 | - |
|
数据表 |
0201CC | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 170 mA | - | 0201 (0603 Metric) | Unshielded | 810mOhm Max | 18 nH | 5 @ 100MHz | 2.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | 100 MHz | 0.013" (0.33mm) |
|
|
XEL4030-641MECFIXED IND 640NH 13.7A 5.9MOHM SM |
25,514 | - |
|
数据表 |
XEL4030 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 13.7 A | 13.5A | 1616 | Shielded | 5.9mOhm Max | 640 nH | - | 80MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.122" (3.10mm) |
|
|
XEL4030-201MECFIXED IND 200NH 21.6A 2.4MOHM SM |
24,090 | - |
|
数据表 |
XEL4030 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 21.6 A | 22A | 1616 | Shielded | 2.4mOhm Max | 200 nH | - | 240MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.126" (3.20mm) |
|
|
PE-0201CC1N0STTFIXED IND 1NH 470MA 110 MOHM SMD |
0 | - |
|
数据表 |
0201CC | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 470 mA | - | 0201 (0603 Metric) | Unshielded | 110mOhm Max | 1 nH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | 100 MHz | 0.013" (0.33mm) |
|
|
PE-0201CC1N8STTFIXED IND 1.8NH 390MA 160MOHM SM |
0 | - |
|
数据表 |
0201CC | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 390 mA | - | 0201 (0603 Metric) | Unshielded | 160mOhm Max | 1.8 nH | 4 @ 100MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | - | 100 MHz | 0.013" (0.33mm) |
|
HCM1A1104-R47-RFIXED IND 470NH 28.5A 1.27 MOHM |
500 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 28.5 A | - | - | Shielded | 1.27mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
HCM1A1104-R56-RFIXED IND 560NH 22.5A 1.8MOHM SM |
500 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 22.5 A | 24A | - | Shielded | 1.8mOhm Max | 560 nH | - | - | Surface Mount | AEC-Q200 | 0.437" L x 0.394" W (11.10mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
2212-H-RCFIXED IND 100UH 4.4A 56 MOHM TH |
4,214 | - |
|
数据表 |
2200 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 4.4 A | - | - | Shielded | 56mOhm Max | 100 µH | - | - | Through Hole | - | 0.950" Dia (24.13mm) | - | -55°C ~ 105°C | 1 kHz | 0.550" (13.97mm) |
|

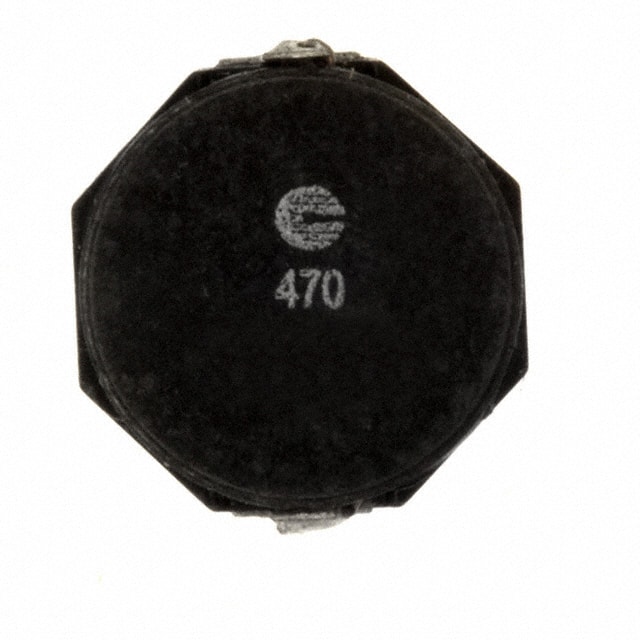

SD8328-470-RFIXED IND 47UH 1.3A 194 MOHM SMD |
1,080 | - |
|
数据表 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.3 A | 1.2A | - | Shielded | 194mOhm Max | 47 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
PG0426.221NLTFIXED IND 220NH 26A 2.2 MOHM SMD |
4,930 | - |
|
数据表 |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 26 A | 40A | - | Shielded | 2.2mOhm Max | 220 nH | - | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.126" (3.20mm) |
|
|
PG0426.201NLTFIXED IND 200NH 26A 2.2 MOHM SMD |
2,095 | - |
|
数据表 |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 26 A | 46A | - | Shielded | 2.2mOhm Max | 200 nH | - | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.126" (3.20mm) |
|
7447797022FIXED IND 220NH 16A 3.5 MOHM SMD |
530 | - |
|
数据表 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±30% | 16 A | 32A | - | Shielded | 3.5mOhm Max | 220 nH | - | 328MHz | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | - | -40°C ~ 150°C | 100 kHz | 0.177" (4.50mm) |
