固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSEB0430H-1R0MCAUTOMOTIVE SMD MOLDING POWER CHK |
420 | - |
|
数据表 |
VSEB0430H | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | ±20% | 10.7 A | 9A | 2-SMD | Shielded | 10.3mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
XGL4020-111MECFIXED IND 110NH 29A 1.7MOHM SMD |
245 | - |
|
数据表 |
XGL4020 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 29 A | 29A | 1616 | Shielded | 1.7mOhm Max | 110 nH | - | 250MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 165°C | 1 MHz | 0.083" (2.10mm) |
|
UP3B-331-RFIXED IND 330UH 750MA 733MOHM SM |
1,250 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 750 mA | 980mA | - | Unshielded | 733mOhm Max | 330 µH | - | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | - | -40°C ~ 85°C | 100 kHz | 0.268" (6.80mm) |
|
SC30681KTFIXED IND 680UH 54MA 60 OHM TH |
0 | - |
|
数据表 |
SC30, Sigma Inductors | Axial | Tape & Reel (TR) | Active | - | - | ±10% | 54 mA | - | - | Shielded | 60Ohm Max | 680 µH | 30 @ 790kHz | 4MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 790 kHz | - |
|
DRA124-101-RFIXED IND 100UH 1.199A 296 MOHM |
533 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.199 A | 2A | - | Shielded | 296mOhm | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 165°C | 100 kHz | 0.177" (4.50mm) |
|
|
SC10150KTFIXED IND 15UH 395MA 1.5 OHM TH |
0 | - |
|
数据表 |
SC10, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | ±10% | 395 mA | - | - | Unshielded | 1.5Ohm Max | 15 µH | 55 @ 2.5MHz | 35MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 2.5 MHz | - |
|
|
SC10220KTFIXED IND 22UH 280MA 3 OHM TH |
0 | - |
|
数据表 |
SC10, Sigma Inductors | Axial | Tape & Reel (TR) | Active | - | - | ±10% | 280 mA | - | - | Unshielded | 3Ohm Max | 22 µH | 55 @ 2.5MHz | 27MHz | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - | -55°C ~ 100°C | 2.5 MHz | - |
|
TPI078060L082NFIXED IND 82NH 53A 341 MOHM SMD |
2,591 | - |
|
数据表 |
TPI | Nonstandard | Tape & Reel (TR) | Active | - | Manganese Zinc Ferrite (MnZn) | ±10% | 53 A | 43A | - | Shielded | 341mOhm Max | 82 nH | - | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
2512R-102KFIXED IND 1UH 1.64A 150 MOHM SMD |
500 | - |
|
数据表 |
2512R | 2-SMD | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 1.64 A | 1.23A | - | Unshielded | 150mOhm Max | 1 µH | - | - | Surface Mount | - | 0.255" L x 0.105" W (6.48mm x 2.67mm) | - | -55°C ~ 125°C | 7.9 MHz | 0.110" (2.79mm) |
|

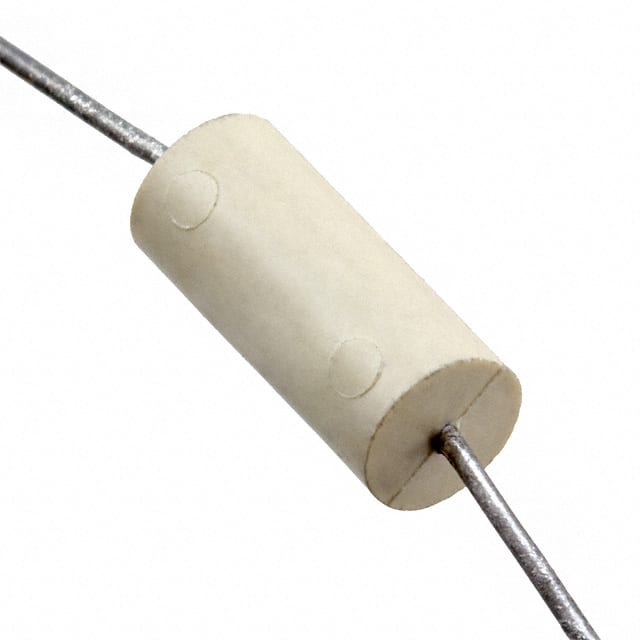

2500-12JFIXED IND 470UH 108MA 11 OHM TH |
697 | - |
|
数据表 |
Military, MIL-PRF-M15305, MS90539 | Axial | Tape & Reel (TR) | Active | Molded | Iron | ±5% | 108 mA | - | - | Unshielded | 11Ohm Max | 470 µH | 65 @ 790kHz | 4MHz | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
SD25-R82-RFIXED IND 820NH 3.58A 20.8 MOHM |
2,900 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.58 A | 4.67A | - | Shielded | 20.8mOhm | 820 nH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.098" (2.50mm) |
|
PE-92101KNLFIXED IND 50UH 2.6A 71 MOHM TH |
1,444 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±20% | 2.6 A | - | - | Unshielded | 71mOhm Max | 50 µH | - | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | - | -40°C ~ 130°C | 20 kHz | 0.700" (17.78mm) |
|

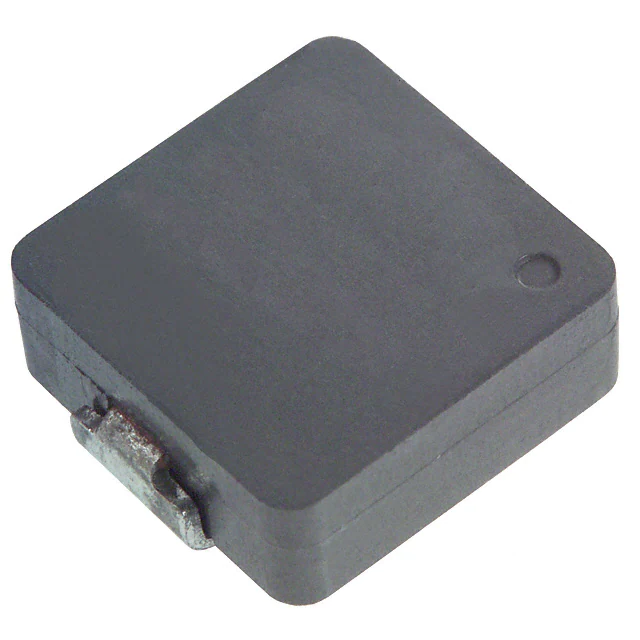

ETQ-P4LR45XFCFIXED IND 470NH 25A 1.1 MOHM SMD |
1,561 | - |
|
数据表 |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | ±20% | 25 A | - | - | Shielded | 1.1mOhm | 470 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | - | 100 kHz | 0.157" (4.00mm) |
|
|
ETQ-P4LR19WFCFIXED IND 190NH 28A 0.7 MOHM SMD |
1,045 | - |
|
数据表 |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | ±20% | 28 A | - | - | Shielded | 0.7mOhm | 190 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | - | 100 kHz | 0.157" (4.00mm) |
|
2109-V-RCFIXED IND 47UH 3.6A 55 MOHM TH |
660 | - |
|
数据表 |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | ±15% | 3.6 A | - | - | Unshielded | 55mOhm Max | 47 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
7445930FIXED IND 1MH 600MA 2.01OHM SMD |
488 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 600 mA | 800mA | - | Shielded | 2.01Ohm Max | 1 mH | - | 1.6MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 125°C | 100 kHz | 0.300" (7.62mm) |
|
2103-H-RCFIXED IND 15UH 7.7A 12 MOHM TH |
366 | - |
|
数据表 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±15% | 7.7 A | - | - | Unshielded | 12mOhm Max | 15 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 105°C | 1 kHz | 0.450" (11.43mm) |
|
|
2112-H-RCFIXED IND 100UH 2.4A 130 MOHM TH |
357 | - |
|
数据表 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±15% | 2.4 A | - | - | Unshielded | 130mOhm Max | 100 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 105°C | 1 kHz | 0.450" (11.43mm) |
|
|
2121-H-RCFIXED IND 560UH 1.5A 300 MOHM TH |
351 | - |
|
数据表 |
2100 | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | ±15% | 1.5 A | - | - | Unshielded | 300mOhm Max | 560 µH | - | - | Through Hole | - | 0.860" Dia (21.84mm) | - | -55°C ~ 105°C | 1 kHz | 0.450" (11.43mm) |
|
|
2110-V-RCFIXED IND 56UH 3.4A 60 MOHM TH |
308 | - |
|
数据表 |
2100 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | ±15% | 3.4 A | - | - | Unshielded | 60mOhm Max | 56 µH | - | - | Through Hole | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - | -55°C ~ 105°C | 1 kHz | - |
