固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL4025-682MECFIXED INDUCTOR 6.8UH SMD |
2,510 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 4.5 A | 3.5A | 1616 | Shielded | 58.7mOhm Max | 6.8 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
XEL4020-821MECFIXED IND 820NH 11.5A 13MOHM SM |
2,321 | - |
|
数据表 |
XEL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 11.5 A | 10.2A | 1616 | Shielded | 13mOhm Max | 820 nH | - | 69MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
XGL4025-122MECFIXED INDUCTOR 1.2UH SMD |
2,234 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 11.3 A | 8.2A | 1616 | Shielded | 10mOhm Max | 1.2 µH | - | 53MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
XGL4025-131MECFIXED INDUCTOR 0.13UH SMD |
2,190 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 28 A | 24A | 1616 | Shielded | 1.7mOhm Max | 130 nH | - | 230MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
XGL4025-332MECFIXED INDUCTOR 3.3UH SMD |
2,167 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 6.9 A | 4.9A | 1616 | Shielded | 27mOhm Max | 3.3 µH | - | 32MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
XGL4025-222MECFIXED INDUCTOR 2.2UH SMD |
2,160 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 9 A | 6.3A | 1616 | Shielded | 16.9mOhm Max | 2.2 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
XGL4025-681MECFIXED INDUCTOR 0.68UH SMD |
2,053 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 16.4 A | 11A | 1616 | Shielded | 6.3mOhm Max | 680 nH | - | 77MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
XGL4025-821MECFIXED INDUCTOR 0.82UH SMD |
2,037 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 14.4 A | 10.1A | 1616 | Shielded | 7.2mOhm Max | 820 nH | - | 68MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
XGL4025-152MECFIXED INDUCTOR 1.5UH SMD |
2,010 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 11 A | 7.6A | 1616 | Shielded | 12mOhm Max | 1.5 µH | - | 49MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
XGL4025-102MECFIXED INDUCTOR 1UH SMD |
1,640 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 13.1 A | 8.9A | 1616 | Shielded | 8.5mOhm Max | 1 µH | - | 58MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
SRN6045-6R8YFIXED IND 6.8UH 2.8A 47.3MOHM SM |
41,287 | - |
|
数据表 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.8 A | 3.8A | - | Shielded | 47.3mOhm Max | 6.8 µH | 15 @ 7.96MHz | 20MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
XGL4025-472MECFIXED INDUCTOR 4.7UH SMD |
1,527 | - |
|
数据表 |
XGL4025 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | ±20% | 5.4 A | 4.3A | 1616 | Shielded | 39.5mOhm Max | 4.7 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.098" (2.50mm) |
|
|
SRN6045-220MFIXED IND 22UH 1.5A 142 MOHM SMD |
38,482 | - |
|
数据表 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.9A | - | Shielded | 142mOhm Max | 22 µH | 17 @ 2.52MHz | 11MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
XEL4020-101MECFIXED IND 100NH 19.9A 2.5MOHM SM |
1,518 | - |
|
数据表 |
XEL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 19.9 A | 28.5A | 1616 | Shielded | 2.5mOhm Max | 100 nH | - | 280MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
XEL4020-222MECFIXED IND 2.2UH 5.5A 38.7MOHM SM |
1,466 | - |
|
数据表 |
XEL4020 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 5.5 A | 5.9A | 1616 | Shielded | 38.7mOhm Max | 2.2 µH | - | 41MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.083" (2.10mm) |
|
|
SRN6045-1R0YFIXED IND 1UH 4.2A 13.9 MOHM SMD |
34,419 | - |
|
数据表 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.2 A | 8.5A | - | Shielded | 13.9mOhm Max | 1 µH | 15 @ 7.96MHz | 50MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SRN6045-8R2YFIXED IND 8.2UH 2.7A 55 MOHM SMD |
23,054 | - |
|
数据表 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.7 A | 3.3A | - | Shielded | 55mOhm Max | 8.2 µH | 15 @ 7.96MHz | 18MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
VLCF4020T-100MR85FIXED IND 10UH 850MA 185MOHM SMD |
14,939 | - |
|
数据表 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 850mA | - | Shielded | 185mOhm Max | 10 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
SRN5040TA-101KFIXED IND 100UH 720MA 560MOHM SM |
14,806 | - |
|
数据表 |
SRN5040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 720 mA | 750mA | - | Shielded | 560mOhm | 100 µH | 15 @ 100kHz | 7MHz | Surface Mount | AEC-Q200 | 0.195" L x 0.195" W (4.95mm x 4.95mm) | - | -55°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|

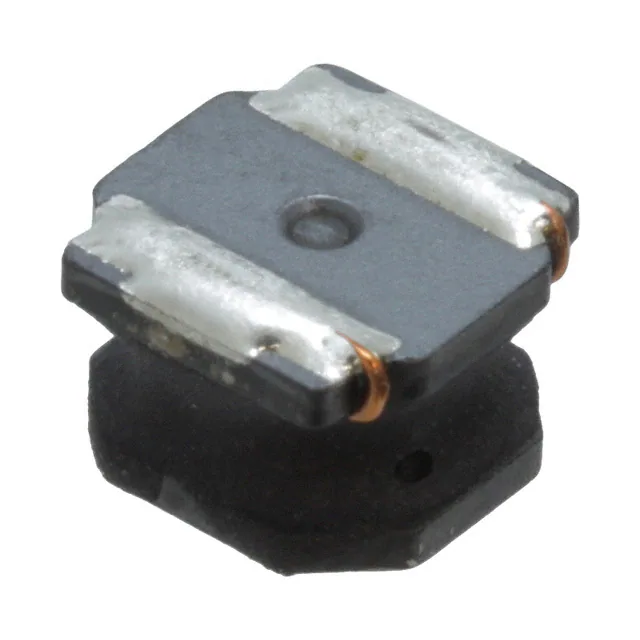

NRS6045T220MMGKVFIXED IND 22UH 1.6A 139.1MOHM SM |
14,755 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 2A | - | Shielded | 139.1mOhm Max | 22 µH | - | 7MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
