固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM4343.153NLTFIXED IND 15UH 9A 28 MOHM SMD |
2,417 | - |
|
数据表 |
PM4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 9 A | 12.5A | - | Shielded | 28mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
CDRH104RNP-221NCFIXED IND 220UH 700MA 756MOHM SM |
1,858 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 700 mA | 920mA | - | Shielded | 756mOhm Max | 220 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
IHLM2525CZER100M01FIXED IND 10UH 3A 105 MOHM SMD |
1,697 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 3 A | 7A | - | Shielded | 105mOhm Max | 10 µH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH104RNP-120NCFIXED IND 12UH 3.4A 46 MOHM SMD |
1,139 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.4 A | 3.7A | - | Shielded | 46mOhm Max | 12 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|

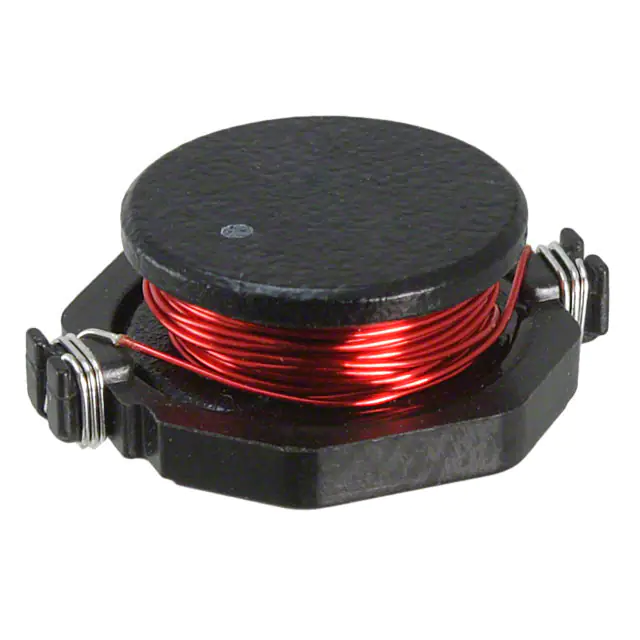

P0250.683NLTFIXED IND 68UH 2.3A 130 MOHM SMD |
1,131 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 2.3 A | 3.5A | - | Unshielded | 130mOhm Max | 68 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
CLS62NP-120NCFIXED IND 12UH 616MA 220MOHM SMD |
701 | - |
|
数据表 |
CLS | 4-SMD | Tape & Reel (TR) | Active | - | - | ±30% | 616 mA | - | - | Shielded | 220mOhm Max | 12 µH | - | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | - | - | 2.52 MHz | 0.098" (2.50mm) |
|
MWSA1004S-1R0MTFIXED IND 1UH 19A 3.3 MOHM SMD |
615 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 19 A | 28A | - | Shielded | 3.3mOhm Max | 1 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
PG2290.221HLTFIXED IND 220NH 75A 0.15MOHM SMD |
271 | - |
|
数据表 |
PG2290.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±10% | 75 A | 81A | - | Shielded | 0.15mOhm | 220 nH | - | - | Surface Mount | - | 0.421" L x 0.295" W (10.70mm x 7.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
|
IHLM2525CZERR68M01FIXED IND 680NH 15.5A 5.5MOHM SM |
2,062 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 15.5 A | 25A | - | Shielded | 5.5mOhm Max | 680 nH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SRP5050FA-100M1IND,6X5.7X4.8MM,10UH20%,5A,SHD |
1,288 | - |
|
数据表 |
SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5 A | 6.5A | - | Shielded | 43mOhm Max | 10 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
CMLB104T-1R5MSFIXED IND 1.5UH 16A 4.2MOHM SMD |
955 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 16 A | 18A | - | Shielded | 4.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLS104T-R15MSFIXED IND 150NH 52A 0.65MOHM SMD |
923 | - |
|
数据表 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 52 A | 90A | - | Shielded | 0.65mOhm Max | 150 nH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
IHLP4040DZER2R2M8AFIXED IND 2.2UH 15A 8.76MOHM SMD |
885 | - |
|
数据表 |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 15 A | 12A | 4040 | Shielded | 8.76mOhm Max | 2.2 µH | - | 3.1MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 180°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLS104T-1R5MSFIXED IND 1.5UH 16A 4.2MOHM SMD |
733 | - |
|
数据表 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 16 A | 33A | - | Shielded | 4.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLB104T-150MSFIXED IND 15UH 6.3A 45 MOHM SMD |
592 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 6.3 A | 6.9A | - | Shielded | 45mOhm Max | 15 µH | - | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLB104T-1R0MSFIXED IND 1UH 19A 3.3 MOHM SMD |
570 | - |
|
数据表 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 19 A | 26A | - | Shielded | 3.3mOhm Max | 1 µH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLS104T-2R2MSFIXED IND 2.2UH 12.5A 7MOHM SMD |
427 | - |
|
数据表 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 12.5 A | 23A | - | Shielded | 7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
CMLS104T-4R7MSFIXED IND 4.7UH 9.6A 16.5MOHM SM |
380 | - |
|
数据表 |
CMLS104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 9.6 A | 17A | - | Shielded | 16.5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
P0250.223NLTFIXED IND 22UH 3.5A 47 MOHM SMD |
356 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 3.5 A | 7A | - | Unshielded | 47mOhm Max | 22 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
SRP1270-8R2MFIXED IND 8.2UH 11A 15.5MOHM SMD |
5,457 | - |
|
数据表 |
SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | ±20% | 11 A | 17A | - | Shielded | 15.5mOhm Max | 8.2 µH | - | 11MHz | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
