固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

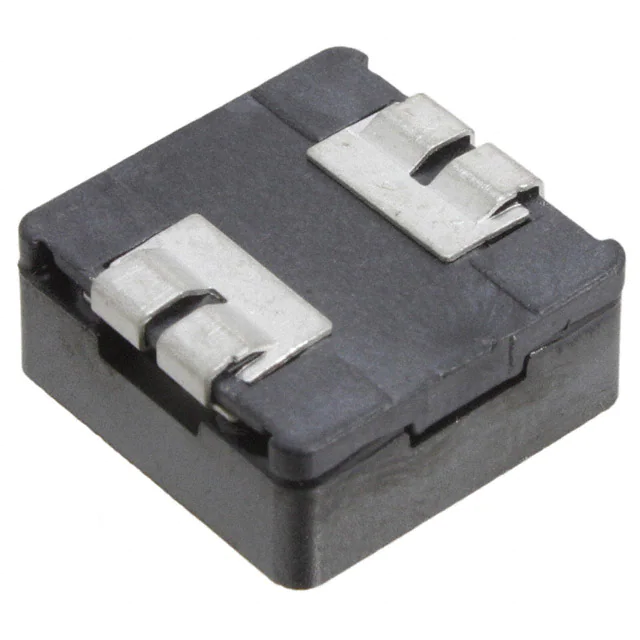

3631B470LLFIXED IND 47UH 1.6A 130 MOHM SMD |
516 | - |
|
数据表 |
3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 1.6 A | - | - | Shielded | 130mOhm Max | 47 µH | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -25°C ~ 105°C | 1 kHz | 0.256" (6.50mm) |
|
MWSA1004S-470MTFIXED IND 47UH 3.3A 145MOHM SMD |
290 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 3.3 A | 3.5A | - | Shielded | 145mOhm Max | 47 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
MWSA1004S-2R2MTFIXED IND 2.2UH 12A 7 MOHM SMD |
236 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 12 A | 16.5A | - | Shielded | 7mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
MWSA1004S-R15MTFIXED IND 150NH 45A 0.65MOHM SMD |
130 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 45 A | 75A | - | Shielded | 0.65mOhm Max | 150 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
P0250.154NLTFIXED IND 150UH 1.5A 250MOHM SMD |
4,486 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 1.5 A | 2.6A | - | Unshielded | 250mOhm Max | 150 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
VLBS1007083T-R15LFIXED IND 150NH 70A 0.18MOHM SMD |
3,291 | - |
|
数据表 |
VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 70 A | 71A | - | Shielded | 0.18mOhm | 150 nH | - | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.327" (8.30mm) |
|
1225AS-H-100M=P2FIXED IND 10UH 850MA 300MOHM SMD |
2,857 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 850 mA | 580mA | - | Shielded | 300mOhm Max | 10 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.047" (1.20mm) |
|
78438336047FIXED IND 4.7UH 1.9A 158MOHM SMD |
2,541 | - |
|
数据表 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | ±20% | 1.9 A | 3.9A | - | Shielded | 158mOhm Max | 4.7 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.866" L x 0.591" W (22.00mm x 15.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
HCM1A0503-6R8-RFIXED IND 6.8UH 2.3A 97.2MOHM SM |
2,000 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 2.3 A | 3.8A | - | Shielded | 97.2mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.203" L x 0.201" W (5.15mm x 5.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
|
HCM1A0503-100-RFIXED IND 10UH 2.4A 108MOHM SMD |
1,580 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 2.4 A | 2.3A | - | Shielded | 108mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.203" L x 0.201" W (5.15mm x 5.10mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
SBC6-331-871FIXED IND 330UH 870MA 410MOHM TH |
937 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 870 mA | 1.9A | - | Unshielded | 410mOhm Max | 330 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
|
SBC6-4R7-802FIXED IND 4.7UH 8A 10 MOHM TH |
644 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 8 A | 16.1A | - | Unshielded | 10mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
125CDMCCDS-220MCFIXED IND 22UH 6.5A 40.4MOHM SMD |
501 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 6.5 A | 8.5A | SMD | Shielded | 40.4mOhm Max | 22 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SBC6-101-172FIXED IND 100UH 1.7A 130 MOHM TH |
374 | - |
|
数据表 |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | 3.5A | - | Unshielded | 130mOhm Max | 100 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
|
MWSA1004S-100MTFIXED IND 10UH 7.8A 30 MOHM SMD |
200 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 7.8 A | 8.5A | - | Shielded | 30mOhm Max | 10 µH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
0840CDMCCDS-220MCFIXED IND 22UH 3.6A 98.5MOHM SMD |
6,266 | - |
|
数据表 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.6 A | 4.2A | - | Shielded | 98.5mOhm Max | 22 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
IHLM2525CZER1R5M01FIXED IND 1.5UH 9A 15 MOHM SMD |
3,446 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 9 A | 18A | - | Shielded | 15mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
IHLM2525CZERR47M01FIXED IND 470NH 17.5A 4.2MOHM SM |
3,318 | - |
|
数据表 |
IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 17.5 A | 26A | - | Shielded | 4.2mOhm Max | 470 nH | - | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

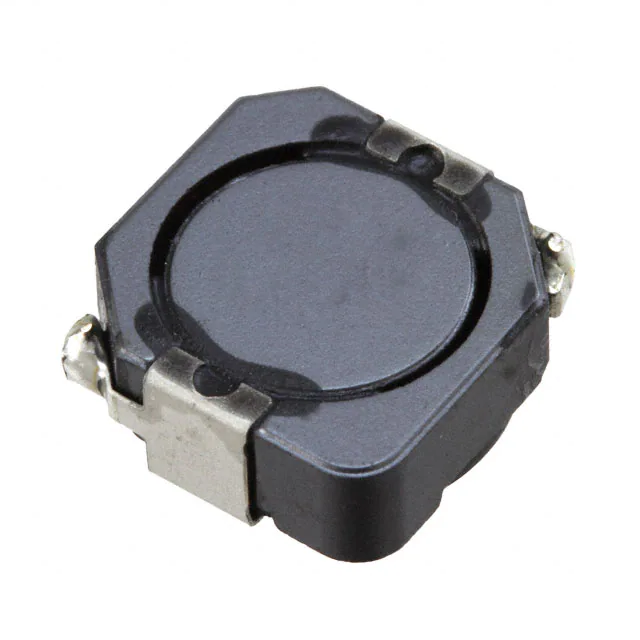

CDRH104RNP-7R0NCFIXED IND 7UH 4.5A 27 MOHM SMD |
3,225 | - |
|
数据表 |
CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 4.5 A | 4.8A | - | Shielded | 27mOhm Max | 7 µH | - | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 100°C | 100 kHz | 0.157" (4.00mm) |
|
|
P0250.334NLTFIXED IND 330UH 1A 560 MOHM SMD |
2,979 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±15% | 1 A | 1.9A | - | Unshielded | 560mOhm Max | 330 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
