固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744062101FIXED IND 100UH 550MA 480MOHM SM |
959 | - |
|
数据表 |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 550 mA | 470mA | - | Shielded | 480mOhm Max | 100 µH | - | 10MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
SPM5020T-6R8M-LRFIXED IND 6.8UH 2.8A 118.5 MOHM |
947 | - |
|
数据表 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 2.8 A | 4.2A | - | Shielded | 118.5mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
744062152FIXED IND 1.5MH 80MA 8 OHM SMD |
570 | - |
|
数据表 |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 80 mA | 110mA | - | Shielded | 8Ohm Max | 1.5 mH | - | 1.5MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
|
744062005FIXED IND 5UH 2.15A 46 MOHM SMD |
454 | - |
|
数据表 |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.15 A | 2A | - | Shielded | 46mOhm Max | 5 µH | - | 50MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
|
744062002FIXED IND 2.2UH 3.4A 24 MOHM SMD |
374 | - |
|
数据表 |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.4 A | 2.7A | - | Shielded | 24mOhm Max | 2.2 µH | - | 70MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
IHLP4040DZER150M5AFIXED IND 15UH 5.1A 50.29MOHM SM |
366 | - |
|
数据表 |
IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.1 A | 7.7A | 4040 | Shielded | 50.29mOhm Max | 15 µH | - | 10.4MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
AIAP-03-220KFIXED IND 22UH 6.07A 26 MOHM TH |
198 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | ±10% | 6.07 A | - | - | Unshielded | 26mOhm Max | 22 µH | - | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
IHLP5050CEERR82M01FIXED IND 820NH 25A 3 MOHM SMD |
122 | - |
|
数据表 |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 25 A | 44A | - | Shielded | 3mOhm Max | 820 nH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.138" (3.50mm) |
|
|
744062150FIXED IND 15UH 1.31A 95 MOHM SMD |
116 | - |
|
数据表 |
WE-TPC | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.31 A | 1.1A | - | Shielded | 95mOhm Max | 15 µH | - | 25MHz | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.098" (2.50mm) |
|
1225AS-H-1R0N=P2FIXED IND 1UH 2.7A 43 MOHM SMD |
3,987 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.7 A | 1.8A | - | Shielded | 43mOhm Max | 1 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.047" (1.20mm) |
|
|
1225AS-H-2R2M=P2FIXED IND 2.2UH 2A 70 MOHM SMD |
3,722 | - |
|
数据表 |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2 A | 1.2A | - | Shielded | 70mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.047" (1.20mm) |
|
125CDMCCDS-4R7MCFIXED IND 4.7UH 14A 10 MOHM SMD |
2,783 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 14 A | 22A | SMD | Shielded | 10mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

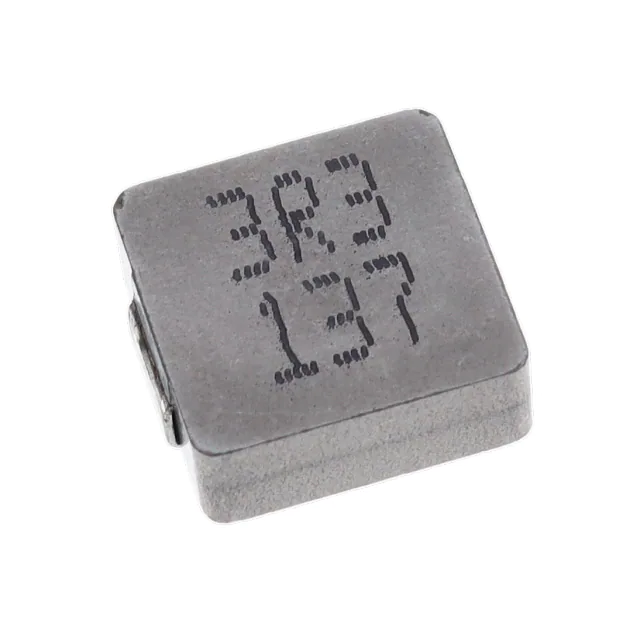

125CDMCCDS-3R3MCFIXED IND 3.3UH 17A 7.8MOHM SMD |
2,564 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 17 A | 27A | SMD | Shielded | 7.8mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
SPM7054VC-2R2M-DFIXED IND 2.2UH 12A 0.0085OHM SM |
1,917 | - |
|
数据表 |
SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 12 A | 19.7A | 7054 | Shielded | 8.5mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
CDRH60D45BT150NP-4R7NCFIXED IND 4.7UH 3.4A 29.9MOHM SM |
1,451 | - |
|
数据表 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 3.4 A | 4.1A | - | Shielded | 29.9mOhm | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.260" L x 0.248" W (6.60mm x 6.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
|
AIAP-03-151KFIXED IND 150UH 2.22A 129MOHM TH |
1,314 | - |
|
数据表 |
AIAP-03 | Axial | Tray | Active | Wirewound | - | ±10% | 2.22 A | - | - | Unshielded | 129mOhm Max | 150 µH | - | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
IHLP3232DZER330M8AIHLP-3232DZ-8A 33 20% ER E3 |
978 | - |
|
数据表 |
IHLP-3232DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 3.1 A | 3.2A | - | Shielded | 159.43mOhm Max | 33 µH | - | 6.1MHz | Surface Mount | AEC-Q200 | 0.340" L x 0.322" W (8.64mm x 8.18mm) | - | -55°C ~ 180°C | 100 kHz | 0.157" (4.00mm) |
|
|
AIAP-03-182KFIXED IND 1.8MH 640MA 1.56OHM TH |
952 | - |
|
数据表 |
AIAP-03 | Axial | Bulk | Active | Wirewound | - | ±10% | 640 mA | - | - | Unshielded | 1.56Ohm Max | 1.8 mH | - | - | Through Hole | - | 0.449" Dia x 0.902" L (11.40mm x 22.90mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
IHLP4040DZER3R3M5AFIXED IND 3.3UH 11A 11.81MOHM SM |
865 | - |
|
数据表 |
IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11 A | 12A | 4040 | Shielded | 11.81mOhm Max | 3.3 µH | - | 25.5MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
MPX1D0530L150FIXED IND 15UH 2.5A 214.6MOHM SM |
660 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.5 A | 3A | - | Shielded | 214.6mOhm Max | 15 µH | - | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
