固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCMB104T-100MSFIXED IND 10UH 7.5A 30 MOHM SMD |
1,100 | - |
|
数据表 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 7.5 A | 8.5A | - | Unshielded | 30mOhm Max | 10 µH | - | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | - | 100 kHz | 0.150" (3.80mm) |
|
P1167.154NLTFIXED IND 150UH 520MA 610MOHM SM |
1,001 | - |
|
数据表 |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 520 mA | 520mA | - | Shielded | 610mOhm Max | 150 µH | - | 5.6MHz | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | - | -40°C ~ 130°C | 100 kHz | 0.177" (4.50mm) |
|
SPM5030T-2R2M-HZFIXED IND 2.2UH 8.5A 21.23 MOHM |
1,435 | - |
|
数据表 |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 8.5 A | 3.6A | - | Shielded | 21.23mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.205" L x 0.197" W (5.20mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
MWLA1707S-150MTFIXED IND 15UH 20.5MOHM 23000MA |
548 | - |
|
数据表 |
MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | ±20% | 12.5 A | 23A | - | Shielded | 20.5mOhm Max | 15 µH | - | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
FPV1507-500-RFIXED IND 500NH 25A 1.15MOHM SMD |
10,882 | - |
|
数据表 |
FPV1507 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 25 A | 40A | - | Shielded | 1.15mOhm | 500 nH | 135 @ 1MHz | - | Surface Mount | - | 0.575" L x 0.327" W (14.60mm x 8.30mm) | - | -55°C ~ 125°C | 1 MHz | 0.260" (6.60mm) |
|
|
P1167.224NLTFIXED IND 220UH 430MA 930MOHM SM |
5,569 | - |
|
数据表 |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 430 mA | 430mA | - | Shielded | 930mOhm Max | 220 µH | - | 4.3MHz | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | - | -40°C ~ 130°C | 100 kHz | 0.177" (4.50mm) |
|
MPLCG0630L3R3FIXED IND 3.3UH 6.5A 0.03OHM SMD |
1,696 | - |
|
数据表 |
MPLCG | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 6.5 A | 6.3A | - | Shielded | 30mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.295" L x 0.264" W (7.50mm x 6.70mm) | Low DCR, Low Loss | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
ASPI-1040HI-R47M-T05FIXED IND 470NH 30A 1.7 MOHM SMD |
869 | - |
|
数据表 |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | ±20% | 30 A | 40A | - | Unshielded | 1.7mOhm Max | 470 nH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
PF0560.702NLTFIXED IND 7UH 4.5A 27 MOHM SMD |
6,650 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 4.5 A | 4.8A | - | Shielded | 27mOhm Max | 7 µH | - | 29MHz | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

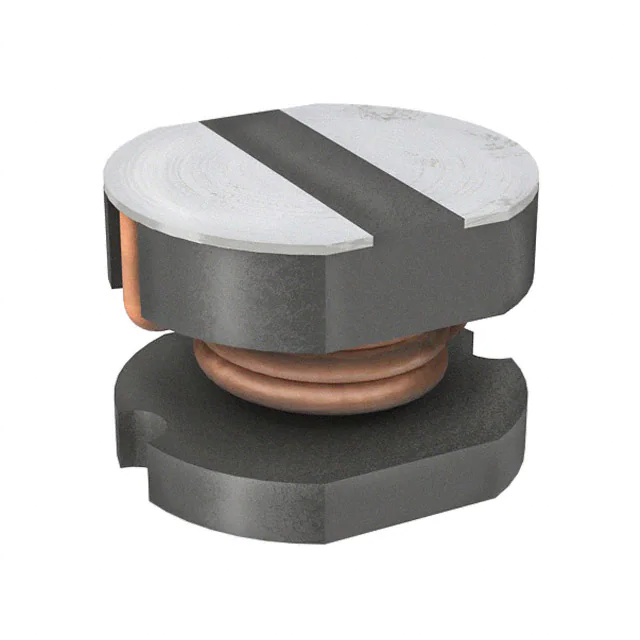

744773115FIXED IND 15UH 1.2A 235 MOHM SMD |
5,657 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.46A | - | Unshielded | 235mOhm Max | 15 µH | - | 26MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
PF0560.223NLTFIXED IND 22UH 2.5A 73 MOHM SMD |
4,972 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 2.5 A | 2.9A | - | Shielded | 73mOhm Max | 22 µH | - | 17MHz | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
744773027FIXED IND 2.7UH 2.25A 79MOHM SMD |
4,123 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.25 A | 2.97A | - | Unshielded | 79mOhm Max | 2.7 µH | - | 72MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
ASPIAIG-F6050-3R3M-TFIXED IND 3.3UH 11A 12.5MOHM SMD |
3,948 | - |
|
数据表 |
ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 11 A | 10A | 6050 | Shielded | 12.5mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
744773082FIXED IND 8.2UH 1.5A 146MOHM SMD |
3,848 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 1.8A | - | Unshielded | 146mOhm Max | 8.2 µH | - | 38MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
PF0560.153NLTFIXED IND 15UH 3.1A 50 MOHM SMD |
3,595 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±30% | 3.1 A | 3.6A | - | Shielded | 50mOhm Max | 15 µH | - | 19MHz | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
744773056FIXED IND 5.6UH 1.58A 126MOHM SM |
2,914 | - |
|
数据表 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.58 A | 2.43A | - | Unshielded | 126mOhm Max | 5.6 µH | - | 48MHz | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
PF0560.104NLTFIXED IND 100UH 1.25A 304MOHM SM |
2,667 | - |
|
数据表 |
PF0560NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±25% | 1.25 A | 1.35A | - | Shielded | 304mOhm Max | 100 µH | - | 6.6MHz | Surface Mount | - | 0.409" L x 0.406" W (10.40mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

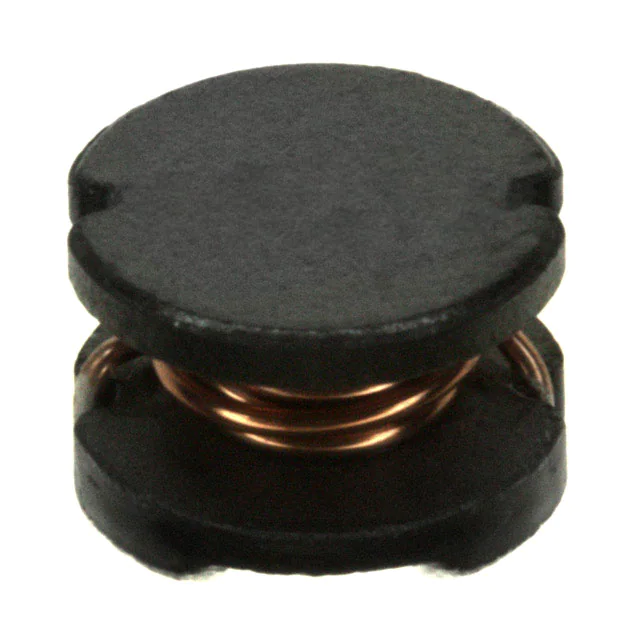

784773047FIXED IND 4.7UH 1.82A 110MOHM SM |
1,480 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.82 A | 2.46A | 4532 | Unshielded | 110mOhm Max | 4.7 µH | - | 45MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
784773156FIXED IND 56UH 640MA 937MOHM SMD |
1,345 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 640 mA | 750mA | 4532 | Unshielded | 937mOhm Max | 56 µH | - | 12MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
|
|
784773112FIXED IND 12UH 1.28A 210MOHM SMD |
1,315 | - |
|
数据表 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.28 A | 1.62A | 4532 | Unshielded | 210mOhm Max | 12 µH | - | 30MHz | Surface Mount | AEC-Q200 | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.138" (3.50mm) |
