固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGL4015-222MECFIXED INDUCTOR 2.2UH SMD |
4,213 | - |
|
数据表 |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | ±20% | 4.5 A | 4.9A | 1616 | Shielded | 36mOhm Max | 2.2 µH | - | 40MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
ASPI-6045S-100M-TFIXED IND 10UH 2.45A 48 MOHM SMD |
5,686 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.45 A | 3.2A | - | Shielded | 48mOhm | 10 µH | - | 15MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|

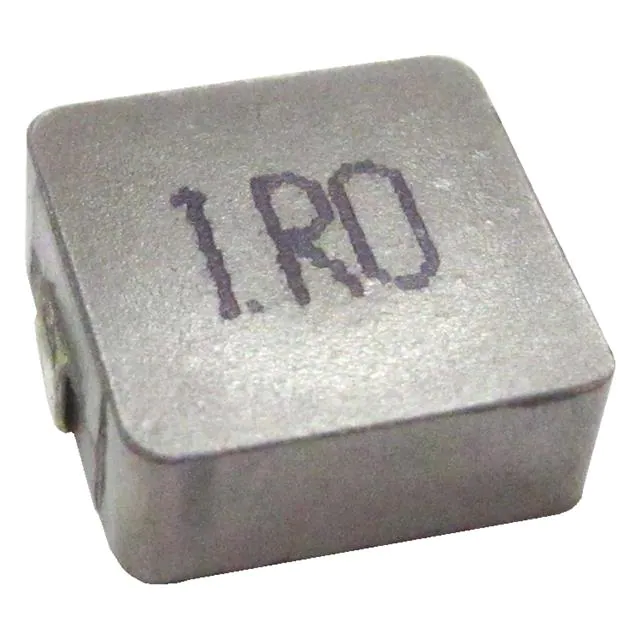

BMRB00060630100MA1FIXED IND 10UH 4A 68 MOHM SMD |
5,457 | - |
|
数据表 |
BMRB | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 4 A | 5.5A | - | Shielded | 68mOhm Max | 10 µH | - | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
ASPI-6045S-101M-TFIXED IND 100UH 800MA 433MOHM SM |
5,446 | - |
|
数据表 |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 950mA | - | Shielded | 433mOhm | 100 µH | - | 4.2MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
36501JR22JTDGFIXED IND 220NH 250MA 1.6OHM SMD |
5,016 | - |
|
数据表 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 250 mA | - | 0603 (1608 Metric) | Unshielded | 1.6Ohm Max | 220 nH | 25 @ 250MHz | 1.2GHz | Surface Mount | AEC-Q200 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
BSCQ000603030N8C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 900 mA | - | 0201 | Unshielded | 60mOhm Max | 0.8 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
XGL4015-221MECFIXED INDUCTOR 0.22UH SMD |
4,175 | - |
|
数据表 |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | ±20% | 13 A | 15.2A | 1616 | Shielded | 4.1mOhm Max | 220 nH | - | 150MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
BSCQ000603030N8SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 900mA | 0201 | Unshielded | 60mOhm Max | 0.8 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
XGL4015-681MECFIXED INDUCTOR 0.68UH SMD |
4,089 | - |
|
数据表 |
XGL4015 | 1616 (4040 Metric) | Strip | Active | Molded | - | ±20% | 8.1 A | 9A | 1616 | Shielded | 10.1mOhm Max | 680 nH | - | 78MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
BSCQ000603031N2C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 800 mA | - | 0201 | Unshielded | 80mOhm Max | 1.2 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N9S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 350 mA | - | 0201 | Unshielded | 410mOhm Max | 3.9 nH | 14 @ 500MHz | 7.7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N9C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 350 mA | - | 0201 | Unshielded | 410mOhm Max | 3.9 nH | 14 @ 500MHz | 7.7GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603038N2HHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | - | 290mA | 0201 | Unshielded | 570mOhm Max | 8.2 nH | 14 @ 500MHz | 4.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603031N4B00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 640 mA | - | 0201 | Unshielded | 120mOhm Max | 1.4 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603030N3BHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | - | 900mA | 0201 | Unshielded | 60mOhm Max | 0.3 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
VLBU10060120T-R47LFIXED IND 470NH 0.132MOHM SMD |
466 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±15% | 83 A | 24A | - | Unshielded | 0.12mOhm | 470 nH | - | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
|
BSCQ000603038N2H00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±3% | 290 mA | - | 0201 | Unshielded | 570mOhm Max | 8.2 nH | 14 @ 500MHz | 4.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
7687714221FIXED IND 220UH 950MA 680MOHM SM |
439 | - |
|
数据表 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 950 mA | 1.15A | - | Shielded | 680mOhm Max | 220 µH | - | 3.9MHz | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
BSCQ000603031N0CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 850mA | 0201 | Unshielded | 70mOhm Max | 1 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
7843340220FIXED IND 2.2UH 8.4A 12MOHM SMD |
340 | - |
|
数据表 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 8.4 A | 14.7A | 8090 | Shielded | 12mOhm Max | 2.2 µH | - | 67MHz | Surface Mount | AEC-Q200 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | - | -55°C ~ 150°C | 100 kHz | 0.366" (9.30mm) |
