固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

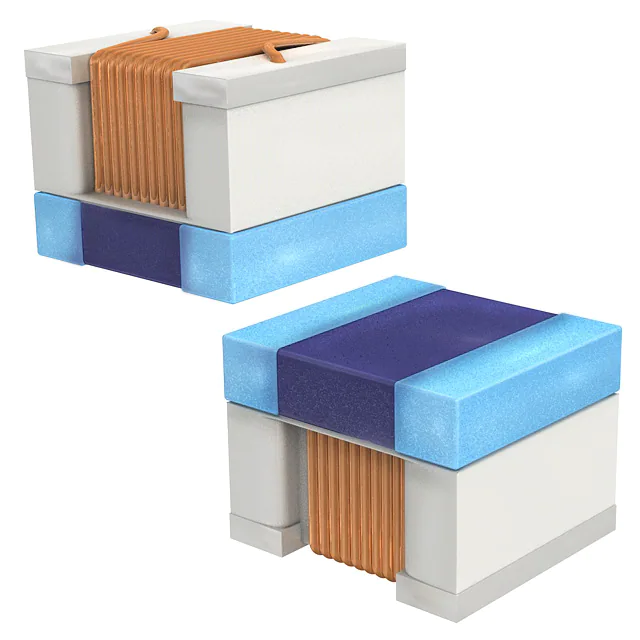

LQW2BAN27NG00LFIXED IND 27NH 2A 70 MOHM SMD |
2,288 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 2 A | - | - | Unshielded | 70mOhm Max | 27 nH | 85 @ 500MHz | 2.75GHz | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | - | -55°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
SRN3015-180MFIXED IND 18UH 650MA 546MOHM SMD |
1,975 | - |
|
数据表 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 650 mA | 620mA | - | Shielded | 546mOhm Max | 18 µH | 17 @ 2.52MHz | 30MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
SRP3212-1R0MR21IND PWR 1.0UH 7.7A BQ25638 |
1,650 | - |
|
数据表 |
SRP3212 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 5.5 A | 7.7A | 1210 | Shielded | 19mOhm Max | 1 µH | 15 @ 100kHz | 50MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
SRN6028C-2R2MFIXED IND 2.2UH 3.7A 26 MOHM SMD |
1,465 | - |
|
数据表 |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.5 A | 5A | 6028 | Shielded | 18mOhm | 2.2 µH | 15 @ 100kHz | 60MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
|
SRN6028C-3R3MFIXED IND 3.3UH 3.4A 34 MOHM SMD |
1,358 | - |
|
数据表 |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.6 A | 4.3A | 6028 | Shielded | 24mOhm | 3.3 µH | 15 @ 100kHz | 56MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
36502AR47JTDGFIXED IND 470NH 220MA 1.7OHM SMD |
116,990 | - |
|
数据表 |
3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 220 mA | - | 0805 (2012 Metric) | Unshielded | 1.7Ohm Max | 470 nH | 33 @ 100MHz | 375MHz | Surface Mount | AEC-Q200 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
MCEE1005TR47MHNFIXED IND 470NH 1.2A 140MOHM SMD |
16,962 | - |
|
数据表 |
MCOIL™, MC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | ±20% | 1.2 A | 1.2A | 0402 | Shielded | 140mOhm Max | 470 nH | - | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 125°C | 1 MHz | 0.022" (0.55mm) |
|
VLS3012HBX-1R0MFIXED IND 1UH 5.13A 47 MOHM SMD |
16,924 | - |
|
数据表 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 5.13 A | 5.5A | - | Shielded | 47mOhm Max | 1 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 1 MHz | 0.047" (1.20mm) |
|
PLEA67BBA1R0M-1PT00INDUCTORS FOR POWER CIRCUITS, CO |
16,290 | - |
|
数据表 |
PLE | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 1 A | 800mA | 0402 | Shielded | 265mOhm Max | 1 µH | - | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.031" (0.80mm) |
|
SRN4018TA-220MFIXED IND 22UH 750MA 290MOHM SMD |
12,588 | - |
|
数据表 |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 750 mA | 900mA | - | Shielded | 290mOhm | 22 µH | 10 @ 100kHz | 26MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
SRN4018TA-151MFIXED IND 150UH 270MA 1.97OHM SM |
11,521 | - |
|
数据表 |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 270 mA | 310mA | - | Shielded | 1.97Ohm | 150 µH | 10 @ 100kHz | 4MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
LQH3NPH3R3MMELFIXED IND 3.3UH 1.9A 100.8 MOHM |
11,050 | - |
|
数据表 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.52A | 1212 (3030 Metric) | Shielded | 100.8mOhm Max | 3.3 µH | - | 55MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
SRN4018TA-100MFIXED IND 10UH 1.2A 150 MOHM SMD |
9,902 | - |
|
数据表 |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.3A | - | Shielded | 150mOhm | 10 µH | 10 @ 100kHz | 40MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
PLEA67BCA4R7M-1PT00INDUCTORS FOR POWER CIRCUITS, CO |
9,735 | - |
|
数据表 |
PLE | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | ±20% | 400 mA | 300mA | 0402 | Unshielded | 1.08Ohm Max | 4.7 µH | - | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.031" (0.80mm) |
|
|
LQH3NPH100MMELFIXED IND 10UH 1.28A 228MOHM SMD |
9,092 | - |
|
数据表 |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.28 A | 810mA | 1212 (3030 Metric) | Shielded | 228mOhm Max | 10 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
|
36501JR10JTDGFIXED IND 100NH 400MA 580MOHM SM |
8,340 | - |
|
数据表 |
3650, Sigma Inductors | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | ±5% | 400 mA | - | 0603 (1608 Metric) | Unshielded | 580mOhm Max | 100 nH | 34 @ 250MHz | 1.4GHz | Surface Mount | AEC-Q200 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
|
SRN4018TA-470MFIXED IND 47UH 580MA 585MOHM SMD |
8,061 | - |
|
数据表 |
SRN4018TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 580 mA | 600mA | - | Shielded | 585mOhm | 47 µH | 10 @ 100kHz | 17MHz | Surface Mount | AEC-Q200 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
HCM1A0805-220-RFIXED IND 22UH 2A 110 MOHM SMD |
158 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 2 A | 3.8A | - | Shielded | 110mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.319" L x 0.315" W (8.10mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
744778928FIXED IND 820UH 210MA 6.54OHM SM |
890 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 210 mA | 200mA | - | Shielded | 6.54Ohm Max | 820 µH | - | 2.8MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
|
|
744778925FIXED IND 560UH 270MA 4.67OHM SM |
862 | - |
|
数据表 |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 270 mA | 300mA | - | Shielded | 4.67Ohm Max | 560 µH | - | 3.7MHz | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 125°C | 1 kHz | 0.138" (3.50mm) |
