固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS1038-393MLCFIXED IND 39UH 2.25A 112MOHM SM |
2,728 | - |
|
数据表 |
MSS1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 2.25 A | 1.6A | - | Shielded | 112mOhm Max | 39 µH | - | 12MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
|
MSS1038-474KLCFIXED IND 470UH 630MA 1.243OHM |
2,471 | - |
|
数据表 |
MSS1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±10% | 630 mA | 500mA | - | Shielded | 1.243Ohm Max | 470 µH | - | 3MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
|
MSS1038-104MLCFIXED IND 100UH 1.45A 304MOHM SM |
2,293 | - |
|
数据表 |
MSS1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 1.45 A | 1.02A | - | Shielded | 304mOhm Max | 100 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
|
MSS1038-184KLCFIXED IND 180UH 980MA 582MOHM SM |
2,293 | - |
|
数据表 |
MSS1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±10% | 980 mA | 890mA | - | Shielded | 582mOhm Max | 180 µH | - | 5MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
|
MSS1038-183MLCFIXED IND 18UH 3.35A 65MOHM SM |
2,055 | - |
|
数据表 |
MSS1038 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | ±20% | 3.35 A | 2.44A | - | Shielded | 65mOhm Max | 18 µH | - | 18MHz | Surface Mount | AEC-Q200 | 0.402" L x 0.394" W (10.20mm x 10.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.157" (4.00mm) |
|
PM2204.122NLTFIXED IND 1.2UH 16A 7.4MOHM SMD |
1,945 | - |
|
数据表 |
PM2204.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16 A | 22A | SMD | Unshielded | 7.4mOhm Max | 1.2 µH | - | - | Surface Mount | AEC-Q200 | 0.268" L x 0.252" W (6.80mm x 6.40mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
5900-122-RCFIXED IND 1.2MH 680MA 910MOHM TH |
1,487 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 680 mA | 760mA | - | Unshielded | 910mOhm Max | 1.2 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5900-392-RCFIXED IND 3.9MH 370MA 3.1 OHM TH |
850 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 370 mA | 420mA | - | Unshielded | 3.1Ohm Max | 3.9 mH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|

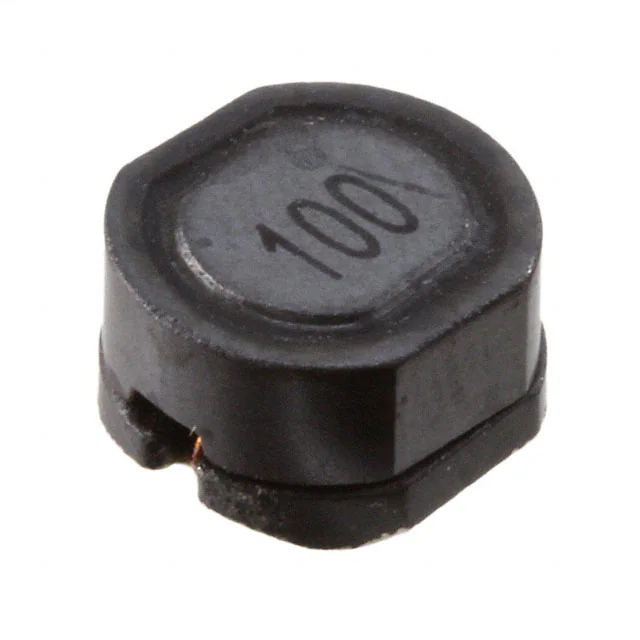

PM74SB-150M-RCFIXED IND 15UH 1.39A 80 MOHM SMD |
800 | - |
|
数据表 |
PM74SB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.39 A | 1.68A | - | Shielded | 80mOhm Max | 15 µH | - | 20MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.193" (4.90mm) |
|
CDRH10D60BT150NP-150MCFIXED IND 15UH 5.3A 30 MOHM SMD |
474 | - |
|
数据表 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 5.3 A | 3.6A | - | Shielded | 30mOhm | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.406" L x 0.394" W (10.30mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.250" (6.35mm) |
|
CDRH10D60BT150NP-680MCFIXED IND 68UH 2.4A 88 MOHM SMD |
409 | - |
|
数据表 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.4 A | 2.36A | - | Shielded | 88mOhm | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.406" L x 0.394" W (10.30mm x 10.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.250" (6.35mm) |
|
|
5900-560-RCFIXED IND 56UH 2.9A 50 MOHM TH |
202 | - |
|
数据表 |
5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.9 A | 3.5A | - | Unshielded | 50mOhm Max | 56 µH | - | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
BSCQ000603033N7SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 370mA | 0201 | Unshielded | 360mOhm Max | 3.7 nH | 14 @ 500MHz | 8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
LQW2BAN22NG00LFIXED IND 22NH 1.9A 70 MOHM SMD |
3,299 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | ±2% | 1.9 A | - | - | Unshielded | 70mOhm Max | 22 nH | 85 @ 500MHz | 1.85GHz | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | - | -55°C ~ 125°C | 250 MHz | 0.060" (1.52mm) |
|
|
BSCQ000603033N6S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 400 mA | - | 0201 | Unshielded | 320mOhm Max | 3.6 nH | 14 @ 500MHz | 8.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N7B00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 370 mA | - | 0201 | Unshielded | 360mOhm Max | 3.7 nH | 14 @ 500MHz | 8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
SRN5040-330MFIXED IND 33UH 1.2A 216 MOHM SMD |
3,241 | - |
|
数据表 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.2 A | 1.3A | - | Shielded | 216mOhm Max | 33 µH | 17 @ 2.52MHz | 8MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
BSCQ000603033N5SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 405mA | 0201 | Unshielded | 300mOhm Max | 3.5 nH | 14 @ 500MHz | 8.2GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
SRN6028C-4R7MFIXED IND 4.7UH 3A 38 MOHM SMD |
3,008 | - |
|
数据表 |
SRN6028C | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.1 A | 3.2A | 6028 | Shielded | 30mOhm | 4.7 µH | 15 @ 100kHz | 50MHz | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
|
LQW2BANR13G00LFIXED IND 130NH 950MA 420MOHM SM |
2,330 | - |
|
数据表 |
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±2% | 950 mA | - | - | Unshielded | 420mOhm Max | 130 nH | 56 @ 250MHz | 1GHz | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | - | -55°C ~ 125°C | 150 MHz | 0.060" (1.52mm) |
