固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IFSC1515AHER3R3M01FIXED IND 3.3UH 2.7A 56 MOHM SMD |
9,069 | - |
|
数据表 |
IFSC-1515AH-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 2.7 A | 2.4A | - | Shielded | 56mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.075" (1.90mm) |
|

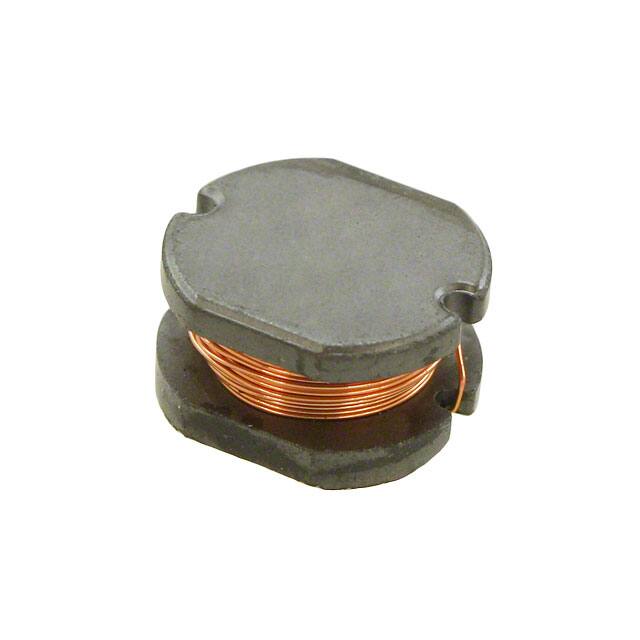

76877630FIXED IND 1MH 380MA 2.6 OHM SMD |
1,237 | - |
|
数据表 |
WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 380 mA | 380mA | - | Unshielded | 2.6Ohm Max | 1 mH | - | 1.9MHz | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.232" (5.90mm) |
|
BSCQ000603036N2S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 305 mA | - | 0201 | Unshielded | 520mOhm Max | 6.2 nH | 14 @ 500MHz | 5.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N1B00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.1nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3.1 nH | 14 @ 500MHz | 8.9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603030N6CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 900mA | 0201 | Unshielded | 60mOhm Max | 0.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N1C00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 450 mA | - | 0201 | Unshielded | 250mOhm Max | 3.1 nH | 14 @ 500MHz | 8.9GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603030N6S00INDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 900 mA | - | 0201 | Unshielded | 60mOhm Max | 0.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603036N2SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 305mA | 0201 | Unshielded | 520mOhm Max | 6.2 nH | 14 @ 500MHz | 5.1GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603035N6SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 325mA | 0201 | Unshielded | 470mOhm Max | 5.6 nH | 14 @ 500MHz | 5.5GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|

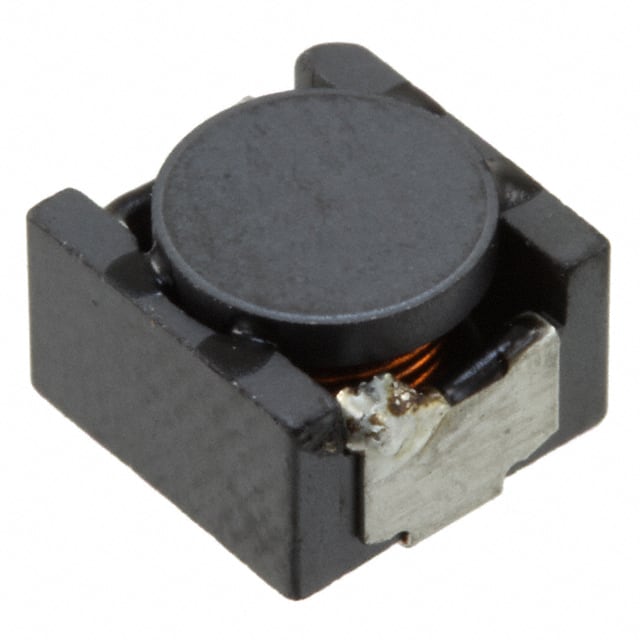

RLF7045T-4R7N2R5-DFIXED IND 4.7UH 2.5A 36 MOHM SMD |
972 | - |
|
数据表 |
RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 2.5 A | 3.3A | - | Shielded | 36mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.268" W (7.30mm x 6.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
744373210047FIXED IND 470NH 5.9A 0.02OHM SMD |
735 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 5.9 A | 12.5A | 4012 | Shielded | 20mOhm Max | 470 nH | - | 120MHz | Surface Mount | - | 0.160" L x 0.160" W (4.06mm x 4.06mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
|
74437321015FIXED IND 1.5UH 3A 0.0633OHM SMD |
465 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 3 A | 5.1A | 4012 | Shielded | 63.3mOhm Max | 1.5 µH | - | 60MHz | Surface Mount | - | 0.160" L x 0.160" W (4.06mm x 4.06mm) | - | -40°C ~ 125°C | 100 kHz | 0.047" (1.20mm) |
|
MPX1D1264LR22FIXED IND 220NH 53A 0.9 MOHM SMD |
328 | - |
|
数据表 |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 53 A | 100A | - | Shielded | 0.9mOhm Max | 220 nH | - | 90MHz | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.252" (6.40mm) |
|
HCP0704-1R8-RFIXED IND 1.8UH 8.5A 11 MOHM SMD |
234 | - |
|
数据表 |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±25% | 8.5 A | 13A | - | Shielded | 11mOhm | 1.8 µH | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.165" (4.20mm) |
|
74455215FIXED IND 150UH 250MA 2 OHM SMD |
180 | - |
|
数据表 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 250 mA | 270mA | - | Unshielded | 2Ohm Max | 150 µH | - | 6MHz | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | - | -40°C ~ 100°C | 100 kHz | 0.114" (2.90mm) |
|
CL0904-2-50TR-RFIXED IND 50NH 80A 0.00035OHM SM |
5,339 | - |
|
数据表 |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 80 A | - | - | - | 0.35mOhm | 50 nH | - | - | Surface Mount | - | 0.787" L x 0.354" W (20.00mm x 9.00mm) | 2 Phase | -40°C ~ 125°C | 1 MHz | 0.157" (4.00mm) |
|
1025R-52KFIXED IND 22UH 144MA 3.3 OHM TH |
1,500 | - |
|
数据表 |
1025R | Axial | Bulk | Active | Molded | Iron | ±10% | 144 mA | - | - | Unshielded | 3.3Ohm Max | 22 µH | 50 @ 2.5MHz | 25MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
744373680056FIXED IND 560NH 19A 0.0018OHM SM |
786 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 19 A | 60.9A | - | Shielded | 1.8mOhm Max | 560 nH | - | 70MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
1025R-54KFIXED IND 27UH 140MA 3.5 OHM TH |
498 | - |
|
数据表 |
1025R | Axial | Bulk | Active | Molded | Iron | ±10% | 140 mA | - | - | Unshielded | 3.5Ohm Max | 27 µH | 50 @ 2.5MHz | 20MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
|
744373680039FIXED IND 390NH 20.5A 0.0013OHM |
475 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 20.5 A | 77.5A | - | Shielded | 1.3mOhm Max | 390 nH | - | 101MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
