固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744373680045FIXED IND 450NH 20A 0.0015OHM SM |
454 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 20 A | 64.5A | - | Shielded | 1.5mOhm Max | 450 nH | - | 82MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
SRN5040-2R2YFIXED IND 2.2UH 3.5A 21 MOHM SMD |
8,910 | - |
|
数据表 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.5 A | 4.6A | - | Shielded | 21mOhm Max | 2.2 µH | 20 @ 7.96MHz | 40MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
HCM1A0805-150-RFIXED IND 15UH 2.5A 71 MOHM SMD |
348 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 2.5 A | 6A | - | Shielded | 71mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.319" L x 0.315" W (8.10mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.213" (5.40mm) |
|
|
744373680036FIXED IND 360NH 21A 0.0012OHM SM |
297 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 21 A | 79.4A | - | Shielded | 1.2mOhm Max | 360 nH | - | 104MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
|
SRN5040-270MFIXED IND 27UH 1.3A 198 MOHM SMD |
8,803 | - |
|
数据表 |
SRN5040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.4A | - | Shielded | 198mOhm Max | 27 µH | 17 @ 2.52MHz | 9MHz | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
SRN3015-330MFIXED IND 33UH 500MA 959MOHM SMD |
8,398 | - |
|
数据表 |
SRN3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 460mA | - | Shielded | 959mOhm Max | 33 µH | 20 @ 2.52MHz | 22MHz | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.059" (1.50mm) |
|
NRS5040T220MMGKVFIXED IND 22UH 1.4A 163.8MOHM SM |
8,351 | - |
|
数据表 |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.5A | - | Shielded | 163.8mOhm Max | 22 µH | - | 9MHz | Surface Mount | AEC-Q200 | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.161" (4.10mm) |
|
SRP2010-1R0MFIXED IND 1UH 2.6A 69 MOHM SMD |
7,532 | - |
|
数据表 |
SRP2010 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.6 A | 2.9A | 0806 (2016 Metric) | Shielded | 69mOhm Max | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -40°C ~ 125°C | 1 MHz | 0.037" (0.95mm) |
|
PA0515.321NLTFIXED IND 325NH 35A 0.63MOHM SMD |
2,454 | - |
|
数据表 |
PA0515NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 35 A | 43A | - | Shielded | 0.63mOhm | 325 nH | - | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | - | -40°C ~ 130°C | - | 0.354" (9.00mm) |
|
PA0515.471NLTFIXED IND 470NH 23A 0.63MOHM SMD |
2,000 | - |
|
数据表 |
PA0515NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 23 A | 30A | - | Shielded | 0.63mOhm | 470 nH | - | - | Surface Mount | - | 0.440" L x 0.440" W (11.18mm x 11.18mm) | - | -40°C ~ 130°C | - | 0.354" (9.00mm) |
|

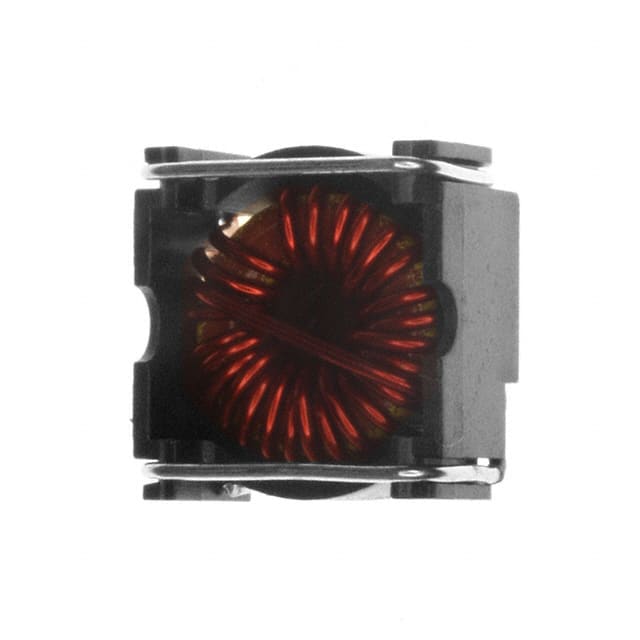

P0845SNLFIXED IND 10.2UH 4.3A 50MOHM SMD |
1,350 | - |
|
数据表 |
LCI-44 | Nonstandard | Tube | Active | Toroidal | - | ±20% | 4.3 A | - | - | Shielded | 50mOhm | 10.2 µH | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | - | -40°C ~ 130°C | - | 0.390" (9.91mm) |
|
SPM12565CT-R22MINDUCTORS FOR POWER CIRCUITS, WO |
1,000 | - |
|
数据表 |
SPM-CT | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | ±20% | 29.1 A | 87.8A | - | Shielded | 1.8mOhm Max | 220 nH | - | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
.jpg)
|
FP2-S200-RFIXED IND 200NH 37A 0.28MOHM SMD |
858 | - |
|
数据表 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 37 A | 19A | - | Unshielded | 0.28mOhm | 200 nH | - | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | - | -40°C ~ 125°C | 1 MHz | 0.197" (5.00mm) |
|

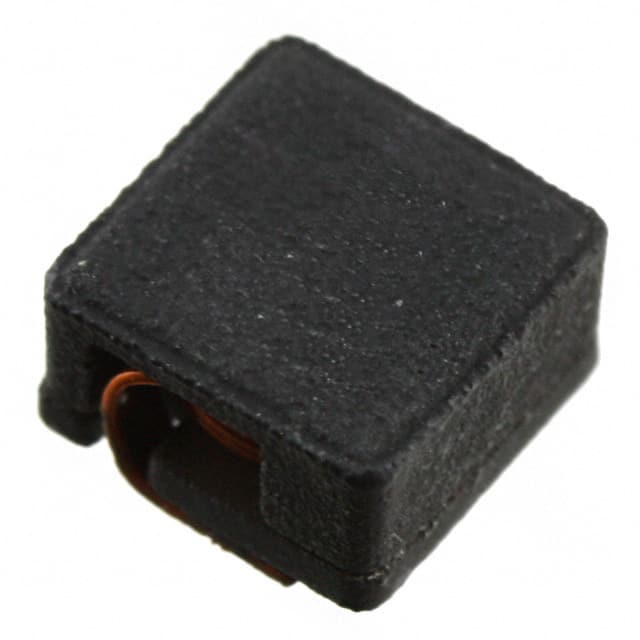

HCP0704-R60-RFIXED IND 600NH 14A 4.5 MOHM SMD |
1,704 | - |
|
数据表 |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±25% | 14 A | 21A | - | Shielded | 4.5mOhm | 600 nH | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
8230-90-RCFIXED IND 820UH 40MA 65 OHM TH |
1,455 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 40 mA | - | - | Unshielded | 65Ohm Max | 820 µH | 30 @ 790kHz | 3.8MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
VLBU1007090T-R10LFIXED IND 100NH 70A 0.18MOHM SMD |
547 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 70 A | 120A | - | Unshielded | 0.18mOhm | 100 nH | - | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.354" (9.00mm) |
|
8230-62-RCFIXED IND 56UH 145MA 5.7 OHM TH |
349 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 145 mA | - | - | Unshielded | 5.7Ohm Max | 56 µH | 45 @ 2.5MHz | 18MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|

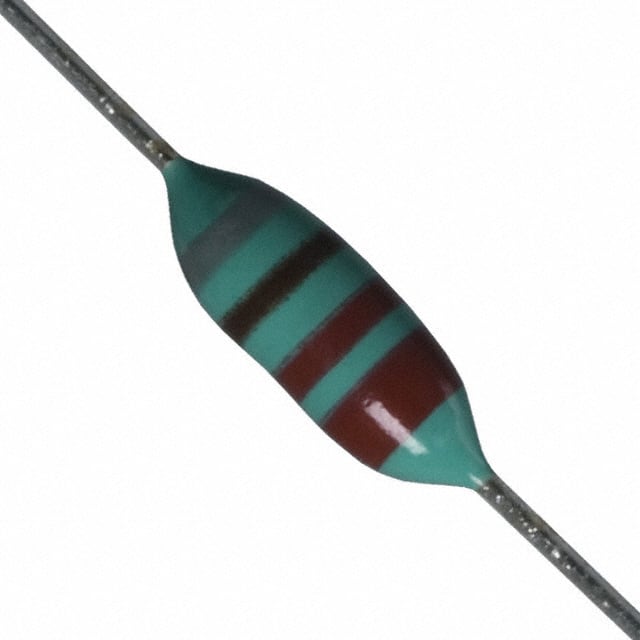

8230-76-RCFIXED IND 220UH 73MA 21 OHM TH |
210 | - |
|
数据表 |
8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 73 mA | - | - | Unshielded | 21Ohm Max | 220 µH | 30 @ 790kHz | 9MHz | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - | -55°C ~ 105°C | 790 kHz | - |
|
BSCQ000603030N6SHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | - | 900mA | 0201 | Unshielded | 60mOhm Max | 0.6 nH | 14 @ 500MHz | 10GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
BSCQ000603033N3CHRINDUCTOR RF |
0 | - |
|
数据表 |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | - | 415mA | 0201 | Unshielded | 280mOhm Max | 3.3 nH | 14 @ 500MHz | 8.6GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
