固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0382.154NLTFIXED IND 150UH 1.2A 280MOHM SMD |
0 | - |
|
数据表 |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.2 A | 2.1A | - | Unshielded | 280mOhm Max | 150 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | - | 0.445" (11.30mm) |
|
|
PG0015.224NLTFIXED IND 220UH 660MA 730MOHM SM |
0 | - |
|
数据表 |
PG0015NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 660 mA | 660mA | - | Unshielded | 730mOhm Max | 220 µH | - | 4MHz | Surface Mount | - | 0.400" L x 0.360" W (10.15mm x 9.15mm) | - | -40°C ~ 125°C | - | 0.219" (5.55mm) |
|
PF0464.823NLTFIXED IND 82UH 600MA 370MOHM SMD |
0 | - |
|
数据表 |
PF0464NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 600 mA | 600mA | - | Shielded | 370mOhm Max | 82 µH | - | 11MHz | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
PG0063.104NLTFIXED IND 100UH 400MA 1.205 OHM |
0 | - |
|
数据表 |
PG0063 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 400 mA | 400mA | - | Unshielded | 1.205Ohm Max | 100 µH | - | - | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 130°C | 100 kHz | 0.098" (2.50mm) |
|
|
PE-53692NLTFIXED IND 3.5UH 12.4A 6.6MOHM SM |
0 | - |
|
数据表 |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | - | 12.4 A | - | - | Unshielded | 6.6mOhm Max | 3.5 µH | - | - | Surface Mount | - | 0.740" L x 0.740" W (18.80mm x 18.80mm) | - | -40°C ~ 130°C | - | 0.390" (9.91mm) |
|
|
PF0382.224NLTFIXED IND 220UH 1.1A 360MOHM SMD |
0 | - |
|
数据表 |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.1 A | 1.7A | - | Unshielded | 360mOhm Max | 220 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | - | 0.445" (11.30mm) |
|
|
PF0382.104NLTFIXED IND 100UH 1.5A 200MOHM SMD |
0 | - |
|
数据表 |
PF0382NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.5 A | 2.6A | - | Unshielded | 200mOhm Max | 100 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 125°C | - | 0.445" (11.30mm) |
|
|
PB2020.681NLTFIXED IND 680NH 30A 1.8 MOHM SMD |
0 | - |
|
数据表 |
PB2020NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 30 A | 70A | - | Unshielded | 1.8mOhm Max | 680 nH | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | - | -40°C ~ 130°C | - | 0.400" (10.16mm) |
|

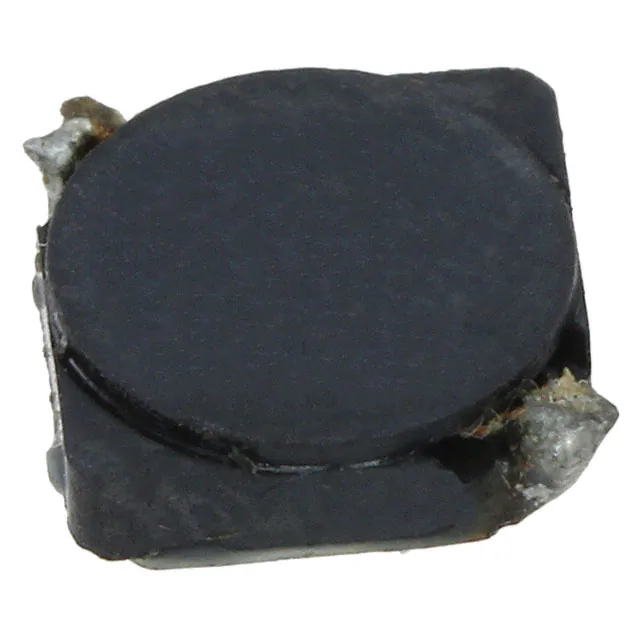

PG0087.224NLTFIXED IND 220UH 250MA 2.7OHM SMD |
0 | - |
|
数据表 |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 250 mA | 250mA | - | Shielded | 2.7Ohm Max | 220 µH | - | 7MHz | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 130°C | 100 kHz | 0.079" (2.00mm) |
|
|
PG0087.505NLTFIXED IND 5MH 25MA 64.2 OHM SMD |
0 | - |
|
数据表 |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 25 mA | 25mA | - | Shielded | 64.2Ohm Max | 5 mH | - | 1.1MHz | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 130°C | 100 kHz | 0.079" (2.00mm) |
|
|
PG0087.305NLTFIXED IND 3MH 38MA 31.53 OHM SMD |
0 | - |
|
数据表 |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 38 mA | 38mA | - | Shielded | 31.53Ohm Max | 3 mH | - | 1.6MHz | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 130°C | 100 kHz | 0.079" (2.00mm) |
|
|
PG0087.205NLTFIXED IND 2MH 50MA 24.9 OHM SMD |
0 | - |
|
数据表 |
PG0087NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 50 mA | 50mA | - | Shielded | 24.9Ohm Max | 2 mH | - | 1.9MHz | Surface Mount | - | 0.244" L x 0.244" W (6.20mm x 6.20mm) | - | -40°C ~ 130°C | 100 kHz | 0.079" (2.00mm) |
|
P0762.473NLTFIXED IND 47UH 800MA 390MOHM SMD |
0 | - |
|
数据表 |
P0762NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 800 mA | 1A | - | Unshielded | 390mOhm Max | 47 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.118" (3.00mm) |
|
|
PG0084.351NLTFIXED IND 350NH 40A 1.8 MOHM SMD |
0 | - |
|
数据表 |
PG0084NL | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 40 A | 40A | - | Unshielded | 1.8mOhm Max | 350 nH | - | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | - | -40°C ~ 95°C | 100 kHz | 0.173" (4.40mm) |
|
PE-0805CM221GTTFIXED IND 220NH 300MA 850MOHM SM |
0 | - |
|
数据表 |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 850mOhm Max | 220 nH | 45 @ 250MHz | 800MHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 100 MHz | 0.062" (1.58mm) |
|
PE-0402CD680JTGFIXED IND 68NH 100MA 970MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 100 mA | - | 0402 (1005 Metric) | Unshielded | 970mOhm Max | 68 nH | 16 @ 250MHz | 1.84GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
PE-0805FT683KTTFIXED IND 68UH 49MA 17.5 OHM SMD |
0 | - |
|
数据表 |
0805FT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 49 mA | - | 0805 (2012 Metric) | Unshielded | 17.5Ohm Max | 68 µH | 8 @ 2.52MHz | 11MHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.062" (1.58mm) |
|
|
PE-0402CD150KTGFIXED IND 15NH 560MA 172MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 560 mA | - | 0402 (1005 Metric) | Unshielded | 172mOhm Max | 15 nH | 26 @ 250MHz | 3.28GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
PD0120.332NLFIXED IND 4.6UH 11.2A 6.8MOHM SM |
0 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 11.2 A | 15A | - | Unshielded | 6.8mOhm Max | 4.6 µH | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
|
|
PD0120.102NLFIXED IND 1.2UH 15.4A 2 MOHM SMD |
0 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 15.4 A | 29A | - | Unshielded | 2mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
