固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
PE-1008CM271JTTFIXED IND 270NH 500MA 500MOHM SM |
0 | - |
|
数据表 |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 500 mA | - | 1008 (2520 Metric) | Unshielded | 500mOhm Max | 270 nH | 45 @ 100MHz | 525MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
GLFR1608T101M-LRFIXED IND 100UH 80MA 5.5 OHM SMD |
0 | - |
|
数据表 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 80 mA | 15mA | 0603 (1608 Metric) | Shielded | 5.5Ohm | 100 µH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | - | 0.039" (1.00mm) |
|

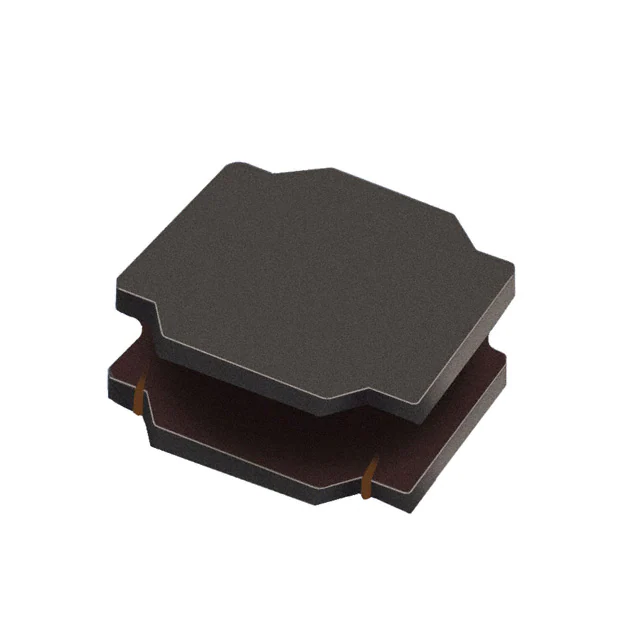

LQH88PN1R5N38LFIXED IND 1.5UH 7.1A 8 MOHM SMD |
0 | - |
|
数据表 |
LQH88 | 3131 (8080 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 7.1 A | 8.5A | 3131 (8080 Metric) | Shielded | 8mOhm | 1.5 µH | - | 60MHz | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 85°C | 100 kHz | 0.150" (3.80mm) |
|
|
GLFR1608T6R8M-LRFIXED IND 6.8UH 400MA 350MOHM SM |
0 | - |
|
数据表 |
GLFR | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 400 mA | 90mA | 0603 (1608 Metric) | Shielded | 350mOhm | 6.8 µH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 105°C | - | 0.039" (1.00mm) |
|
ELJ-PA2R2MF2FIXED IND 2.2UH 800MA 170MOHM SM |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±20% | 800 mA | 800mA | - | Unshielded | 170mOhm | 2.2 µH | - | 70MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-PA4R7MF2FIXED IND 4.7UH 700MA 230MOHM SM |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±20% | 700 mA | 580mA | - | Unshielded | 230mOhm | 4.7 µH | - | 35MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-PA220KF2FIXED IND 22UH 420MA 660MOHM SMD |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 420 mA | 290mA | - | Unshielded | 660mOhm | 22 µH | - | 15MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-PA330KF2FIXED IND 33UH 330MA 1.05OHM SMD |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 330 mA | 240mA | - | Unshielded | 1.05Ohm | 33 µH | - | 12MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-PA470KF2FIXED IND 47UH 260MA 1.75OHM SMD |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 260 mA | 200mA | - | Unshielded | 1.75Ohm | 47 µH | - | 9.5MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-PA101KF2FIXED IND 100UH 175MA 3.9OHM SMD |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 175 mA | 130mA | - | Unshielded | 3.9Ohm | 100 µH | - | 6.5MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-PA221KF2FIXED IND 220UH 115MA 8.7OHM SMD |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 115 mA | 85mA | - | Unshielded | 8.7Ohm | 220 µH | - | 4MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
|
ELJ-PA100KF2FIXED IND 10UH 590MA 350MOHM SMD |
0 | - |
|
数据表 |
PA2 | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±10% | 590 mA | 400mA | - | Unshielded | 350mOhm | 10 µH | - | 23MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -20°C ~ 85°C | 1 MHz | 0.094" (2.40mm) |
|
ATFC-0603-1N5-BTFIXED IND 1.5NH 800MA 350MOHM SM |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±0.1nH | 800 mA | - | 0603 (1608 Metric) | Unshielded | 350mOhm Max | 1.5 nH | 15 @ 300MHz | 10GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
|
|
ATFC-0603-2N7-BTFIXED IND 2.7NH 300MA 450MOHM SM |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±0.1nH | 300 mA | - | 0603 (1608 Metric) | Unshielded | 450mOhm Max | 2.7 nH | 15 @ 300MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
|
|
ATFC-0603-6N8-BTFIXED IND 6.8NH 300MA 750MOHM SM |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±0.1nH | 300 mA | - | 0603 (1608 Metric) | Unshielded | 750mOhm Max | 6.8 nH | 15 @ 300MHz | 5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
|
|
ATFC-0603-12N-FTFIXED IND 12NH 300MA 1.05OHM SMD |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 1.05Ohm Max | 12 nH | 15 @ 300MHz | 3GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
|
|
ATFC-0603-15N-FTFIXED IND 15NH 300MA 1.35OHM SMD |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 1.35Ohm Max | 15 nH | 15 @ 300MHz | 3GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
|
|
ATFC-0603-22N-FTFIXED IND 22NH 250MA 1.95OHM SMD |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 250 mA | - | 0603 (1608 Metric) | Unshielded | 1.95Ohm Max | 22 nH | 15 @ 300MHz | 2GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
|
|
ATFC-0603-39N-FTFIXED IND 39NH 200MA 3 OHM SMD |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 200 mA | - | 0603 (1608 Metric) | Unshielded | 3Ohm Max | 39 nH | 15 @ 300MHz | 1.5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
|
|
ATFC-0603-47N-FTFIXED IND 47NH 200MA 3 OHM SMD |
0 | - |
|
数据表 |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | ±1% | 200 mA | - | 0603 (1608 Metric) | Unshielded | 3Ohm Max | 47 nH | 15 @ 300MHz | 1.5GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -25°C ~ 85°C | 300 MHz | 0.022" (0.55mm) |
