固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD0120.152NLFIXED IND 1.8UH 14.2A 3 MOHM SMD |
0 | - |
|
数据表 |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | ±10% | 14.2 A | 24.3A | - | Unshielded | 3mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | - | -40°C ~ 125°C | - | 0.323" (8.20mm) |
|
PE-0402CD121JTGFIXED IND 120NH 90MA 2.7 OHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 90 mA | - | 0402 (1005 Metric) | Unshielded | 2.7Ohm Max | 120 nH | 14 @ 250MHz | 1.52GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
PE-0402CD120JTGFIXED IND 12NH 640MA 120MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 640 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 12 nH | 26 @ 250MHz | 3.6GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
PE-0805FT333KTTFIXED IND 33UH 60MA 10.7 OHM SMD |
0 | - |
|
数据表 |
0805FT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 60 mA | - | 0805 (2012 Metric) | Unshielded | 10.7Ohm Max | 33 µH | 10 @ 2.52MHz | 17MHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.062" (1.58mm) |
|
|
PE-0805FT473KTTFIXED IND 47UH 55MA 13.8 OHM SMD |
0 | - |
|
数据表 |
0805FT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 55 mA | - | 0805 (2012 Metric) | Unshielded | 13.8Ohm Max | 47 µH | 10 @ 2.52MHz | 14MHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.062" (1.58mm) |
.jpg)
|
PE-1008CD680KTTFIXED IND 68NH 1A 70 MOHM SMD |
0 | - |
|
数据表 |
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 1 A | - | 1008 (2520 Metric) | Unshielded | 70mOhm Max | 68 nH | 65 @ 350MHz | 1.1GHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 50 MHz | 0.090" (2.29mm) |
|
|
PE-1008CM751KTTFIXED IND 750NH 200MA 1.6OHM SMD |
0 | - |
|
数据表 |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 200 mA | - | 1008 (2520 Metric) | Unshielded | 1.6Ohm Max | 750 nH | 45 @ 100MHz | 350MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
|
PE-1008CM820KTTFIXED IND 82NH 950MA 140MOHM SMD |
0 | - |
|
数据表 |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 950 mA | - | 1008 (2520 Metric) | Unshielded | 140mOhm Max | 82 nH | 65 @ 350MHz | 950MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 50 MHz | 0.090" (2.29mm) |
|
PE-0805CM101JTTFIXED IND 100NH 400MA 360MOHM SM |
0 | - |
|
数据表 |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0805 (2012 Metric) | Unshielded | 360mOhm Max | 100 nH | 55 @ 500MHz | 1.1GHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 150 MHz | 0.062" (1.58mm) |
|
|
PE-1008CM371GTTFIXED IND 370NH 430MA 800MOHM SM |
0 | - |
|
数据表 |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 430 mA | - | 1008 (2520 Metric) | Unshielded | 800mOhm Max | 370 nH | 50 @ 100MHz | 490MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
|
PE-1008CD120JTTFIXED IND 12NH 1A 90 MOHM SMD |
0 | - |
|
数据表 |
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1 A | - | 1008 (2520 Metric) | Unshielded | 90mOhm Max | 12 nH | 50 @ 500MHz | 3.3GHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 50 MHz | 0.090" (2.29mm) |
|
|
PE-1008CD562GTTFIXED IND 5.6UH 240MA 5.4OHM SMD |
0 | - |
|
数据表 |
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±2% | 240 mA | - | 1008 (2520 Metric) | Unshielded | 5.4Ohm Max | 5.6 µH | 20 @ 25MHz | 60MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 7.9 MHz | 0.090" (2.29mm) |
|
|
PE-0805CM270KTTFIXED IND 27NH 500MA 230MOHM SMD |
0 | - |
|
数据表 |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 500 mA | - | 0805 (2012 Metric) | Unshielded | 230mOhm Max | 27 nH | 55 @ 500MHz | 2GHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 250 MHz | 0.062" (1.58mm) |
|
|
PE-1008CM101KTTFIXED IND 100NH 650MA 150MOHM SM |
0 | - |
|
数据表 |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 650 mA | - | 1008 (2520 Metric) | Unshielded | 150mOhm Max | 100 nH | 65 @ 350MHz | 900MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
|
PE-1008CD150KTTFIXED IND 15NH 1A 100 MOHM SMD |
0 | - |
|
数据表 |
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 1 A | - | 1008 (2520 Metric) | Unshielded | 100mOhm Max | 15 nH | 50 @ 500MHz | 1.85GHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 50 MHz | 0.090" (2.29mm) |
|
|
PE-1008CM222KTTFIXED IND 2.2UH 150MA 5.85OHM SM |
0 | - |
|
数据表 |
1008CM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 150 mA | - | 1008 (2520 Metric) | Unshielded | 5.85Ohm Max | 2.2 µH | 30 @ 25MHz | 80MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 10 MHz | 0.090" (2.29mm) |
|
|
PE-0805CM820KTTFIXED IND 82NH 400MA 360MOHM SMD |
0 | - |
|
数据表 |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | 400 mA | - | 0805 (2012 Metric) | Unshielded | 360mOhm Max | 82 nH | 60 @ 500MHz | 1.3GHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 150 MHz | 0.062" (1.58mm) |
|
|
PE-0805CM471GTTFIXED IND 470NH 240MA 3.25OHM SM |
0 | - |
|
数据表 |
0805CM | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 240 mA | - | 0805 (2012 Metric) | Unshielded | 3.25Ohm Max | 470 nH | 38 @ 100MHz | 600MHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 100 MHz | 0.062" (1.58mm) |
|

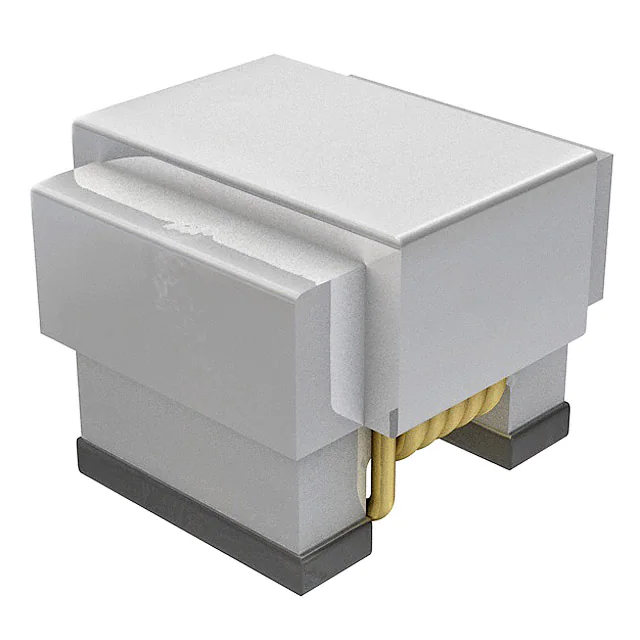

PE-0805CD152GTTFIXED IND 1.5UH 100MA 5 OHM SMD |
0 | - |
|
数据表 |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±2% | 100 mA | - | 0805 (2012 Metric) | Unshielded | 5Ohm Max | 1.5 µH | 20 @ 50MHz | 200MHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 25 MHz | 0.062" (1.58mm) |
|
|
PE-0805CD910GTTFIXED IND 91NH 400MA 440MOHM SMD |
0 | - |
|
数据表 |
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±2% | 400 mA | - | 0805 (2012 Metric) | Unshielded | 440mOhm Max | 91 nH | 65 @ 500MHz | 1.2GHz | Surface Mount | - | 0.090" L x 0.066" W (2.29mm x 1.68mm) | - | -40°C ~ 125°C | 150 MHz | 0.062" (1.58mm) |
