固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-50503NLFIXED IND 500UH 1.75A 350MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Obsolete | Toroidal | - | - | 1.75 A | - | - | Unshielded | 350mOhm Max | 500 µH | - | - | Through Hole | - | 1.140" Dia (28.95mm) | - | -55°C ~ 70°C | 20 kHz | 0.665" (16.89mm) |
|

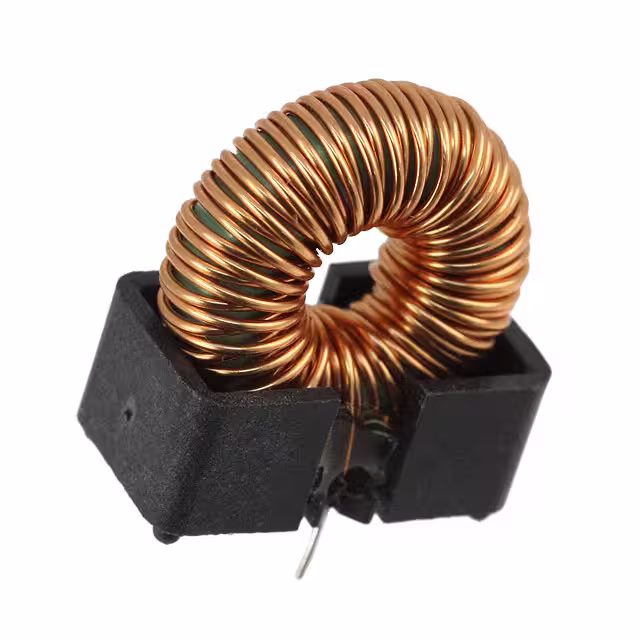

PE-54038NLTFIXED IND 77UH 2.7A 90 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tape & Reel (TR) | Active | Toroidal | - | ±20% | 2.7 A | - | - | Shielded | 90mOhm | 77 µH | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | - | -40°C ~ 130°C | 20 kHz | 0.950" (24.13mm) |
|
|
PE-92113NLFIXED IND 170UH 5A 50 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±20% | 5 A | - | - | Unshielded | 50mOhm Max | 170 µH | - | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - | -40°C ~ 130°C | 20 kHz | - |
|
|
PE-50508NLFIXED IND 2MH 1.5A 750 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | - | - | 1.5 A | - | - | Unshielded | 750mOhm Max | 2 mH | - | - | Through Hole | - | 1.416" Dia (35.96mm) | - | -55°C ~ 70°C | 20 kHz | 0.850" (21.59mm) |
|
|
PG0220.451NLFIXED IND 450NH 25.5A 1.85 MOHM |
0 | - |
|
数据表 |
PG0220NL | Radial, Horizontal (Open) | Tray | Obsolete | - | - | ±15% | 25.5 A | 35A | - | Unshielded | 1.85mOhm Max | 450 nH | - | - | Through Hole | - | 0.520" L x 0.520" W (13.20mm x 13.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.362" (9.20mm) |
|
|
PA2080.141NLFIXED IND 140NH 40A 0.49 MOHM TH |
0 | - |
|
数据表 |
PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | ±10% | 40 A | 80A | - | Unshielded | 0.49mOhm | 140 nH | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | - | -40°C ~ 130°C | - | 0.350" (8.90mm) |
|
|
PA2080.161NLFIXED IND 165NH 40A 0.49 MOHM TH |
0 | - |
|
数据表 |
PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | ±10% | 40 A | 70A | - | Unshielded | 0.49mOhm | 165 nH | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | - | -40°C ~ 130°C | - | 0.350" (8.90mm) |
|
|
PA2080.221NLFIXED IND 215NH 40A 0.49 MOHM TH |
0 | - |
|
数据表 |
PA2080NL | Radial, Vertical | Tray | Active | - | - | ±10% | 40 A | 55A | - | Unshielded | 0.49mOhm | 215 nH | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | - | -40°C ~ 130°C | - | 0.350" (8.90mm) |
|
|
PA2080.191NLFIXED IND 185NH 40A 0.49 MOHM TH |
0 | - |
|
数据表 |
PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | ±10% | 40 A | 65A | - | Unshielded | 0.49mOhm | 185 nH | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | - | -40°C ~ 130°C | - | 0.350" (8.90mm) |
|
|
PE-92412NLFIXED IND 100UH 5A 34 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | ±20% | 5 A | - | - | Unshielded | 34mOhm Max | 100 µH | - | - | Through Hole | - | 1.400" Dia (35.56mm) | - | -40°C ~ 130°C | 20 kHz | 0.700" (17.78mm) |
|
|
PG0220.281NLFIXED IND 280NH 38.7A 0.8MOHM TH |
0 | - |
|
数据表 |
PG0220NL | Radial, Horizontal (Open) | Tray | Active | - | - | ±15% | 38.7 A | 45A | - | Unshielded | 0.8mOhm Max | 280 nH | - | - | Through Hole | - | 0.433" L x 0.433" W (11.00mm x 11.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
PG0200.102NLFIXED IND 1UH 23A 2.4 MOHM TH |
0 | - |
|
数据表 |
PG0200NL | Radial, Horizontal (Open) | Tray | Obsolete | - | - | ±15% | 23 A | 35A | - | Unshielded | 2.4mOhm Max | 1 µH | - | - | Through Hole | - | 0.520" L x 0.520" W (13.20mm x 13.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.362" (9.20mm) |
|
|
PE-52630NLFIXED IND 820UH 750MA 2.4 OHM TH |
0 | - |
|
数据表 |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | ±20% | 750 mA | - | - | Unshielded | 2.4Ohm Max | 820 µH | - | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | - | -40°C ~ 130°C | 20 kHz | 0.460" (11.68mm) |
|
|
PE-50501NLFIXED IND 1MH 350MA 750 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Obsolete | Toroidal | - | - | 350 mA | - | - | Unshielded | 750mOhm Max | 1 mH | - | - | Through Hole | - | 0.754" Dia (19.15mm) | - | -55°C ~ 70°C | 20 kHz | 0.400" (10.16mm) |
|
|
PE-53825NLFIXED IND 18UH 1.81A 60 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | ±20% | 1.81 A | - | - | Shielded | 60mOhm | 18 µH | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | - | -40°C ~ 130°C | - | 0.375" (9.52mm) |
|
|
PE-50506NLFIXED IND 500UH 2.75A 250MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | - | - | 2.75 A | - | - | Unshielded | 250mOhm Max | 500 µH | - | - | Through Hole | - | 1.416" Dia (35.96mm) | - | -55°C ~ 70°C | 20 kHz | 0.850" (21.59mm) |
|
|
PE-92108NLFIXED IND 67UH 3.6A 45 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±20% | 3.6 A | - | - | Unshielded | 45mOhm Max | 67 µH | - | - | Through Hole | - | 1.050" Dia x 0.550" W (26.67mm x 13.97mm) | - | -40°C ~ 130°C | 20 kHz | - |
|
|
PE-92107NLFIXED IND 450UH 3A 200 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | ±20% | 3 A | - | - | Unshielded | 200mOhm Max | 450 µH | - | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - | -40°C ~ 130°C | 20 kHz | - |
|
|
PE-92115NLFIXED IND 95UH 7A 25 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 7 A | - | - | Unshielded | 25mOhm Max | 95 µH | - | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - | -40°C ~ 130°C | 20 kHz | - |
|
PF0504.403NLTFIXED IND 40UH 4A 50 MOHM SMD |
0 | - |
|
数据表 |
PF0504NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 4 A | 8A | - | Unshielded | 50mOhm Max | 40 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 125°C | - | 0.450" (11.43mm) |
