固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTDT1608CF-33333UH SMD SHIELDED POWR INDUCTOR |
560 | - |
|
数据表 |
CTDT1608F | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 450 mA | - | - | Shielded | 280mOhm Max | 33 µH | - | - | Surface Mount | - | 0.259" L x 0.175" W (6.58mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|

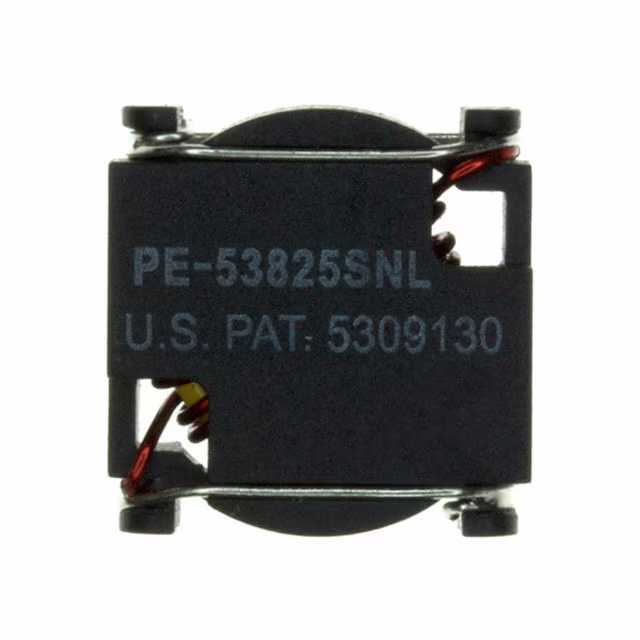

PE-53825SNLFIXED IND 18UH 1.81A 60 MOHM SMD |
1,040 | - |
|
数据表 |
- | Nonstandard | Tube | Active | Toroidal | - | ±20% | 1.81 A | - | - | Shielded | 60mOhm | 18 µH | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | - | -40°C ~ 130°C | - | 0.360" (9.14mm) |
|
SBCP-14HY2R2BFIXED IND 2.2UH 4.35A 20 MOHM TH |
0 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.35 A | 16.82A | - | Unshielded | 20mOhm Max | 2.2 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
IHTH0750IZEB4R7M5AFIXED IND 4.7UH 30A 3 MOHM TH |
287 | - |
|
数据表 |
IHTH-0750IZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | ±20% | 30 A | 26A | - | Shielded | 3mOhm Max | 4.7 µH | - | 13.22MHz | Through Hole | AEC-Q200 | 0.755" Dia (19.18mm) | - | -55°C ~ 155°C | 100 kHz | 0.354" (8.99mm) |
|
|
SBCP-14HY1R2BFIXED IND 1.2UH 5.2A 20 MOHM TH |
0 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.2 A | 24.3A | - | Unshielded | 20mOhm Max | 1.2 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|

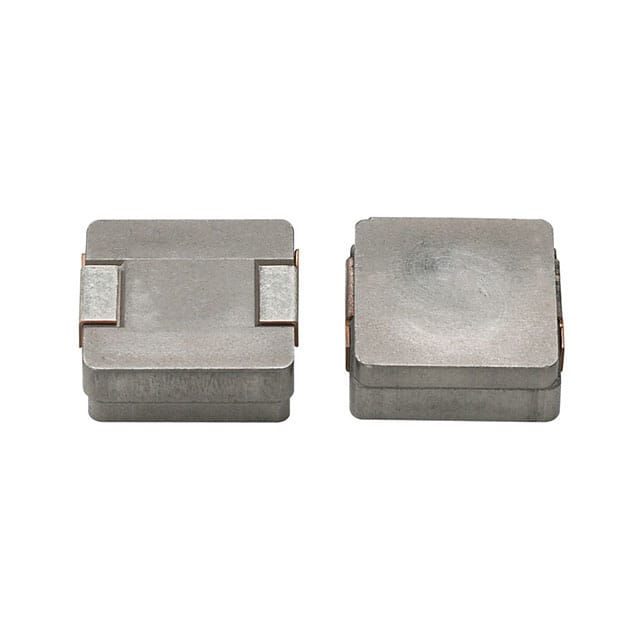

IHLP5050EZER150M01IHLP-5050EZ-01 15 20% ER E3 |
235 | - |
|
数据表 |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | - | - | - | Shielded | - | 15 µH | - | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
SBCP-14HY680BFIXED IND 68UH 1.7A 110 MOHM TH |
0 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | 3.76A | - | Unshielded | 110mOhm Max | 68 µH | - | - | Through Hole | - | 0.472" Dia (12.00mm) | - | -20°C ~ 105°C | 10 kHz | 0.591" (15.00mm) |
|
MWSA1707S-101MTFIXED IND 100UH 130 MOHM SMD |
150 | - |
|
数据表 |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | - | - | - | Shielded | 130mOhm Max | 100 µH | - | - | Surface Mount | - | - | - | -55°C ~ 125°C | 100 kHz | - |
|
FP1007R2-R14-RFIXED IND 140NH 51A 0.48MOHM SMD |
0 | - |
|
数据表 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 51 A | 72A | - | Unshielded | 0.48mOhm | 140 nH | - | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.256" (6.50mm) |
|
SBCP-80HY103HBFIXED IND 10MH 100MA 19.1 OHM TH |
105 | - |
|
数据表 |
SBCP | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 100 mA | 150mA | - | Unshielded | 19.1Ohm Max | 10 mH | - | - | Through Hole | - | 0.374" Dia (9.50mm) | - | -20°C ~ 105°C | 10 kHz | 0.433" (11.00mm) |
|
SL1616A-R06LHFFIXED IND 65NH 19A 0.32MOHM SMD |
2,750 | - |
|
数据表 |
SL1616 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 19 A | 26A | - | Shielded | 0.32mOhm | 65 nH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -55°C ~ 130°C | 100 kHz | 0.157" (4.00mm) |
|
VLBU805080T-R12LFIXED IND 120NH 65A 0.2 MOHM SMD |
1,134 | - |
|
数据表 |
VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 65 A | 61A | - | Unshielded | 0.2mOhm | 120 nH | - | - | Surface Mount | - | 0.315" L x 0.197" W (8.00mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
74454247FIXED IND 470UH 300MA 1.6OHM SMD |
500 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±10% | 300 mA | 500mA | - | Shielded | 1.6Ohm Max | 470 µH | - | 3.2MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.205" (5.20mm) |
|
XFHCL4-8R2MFIXED IND 8.2UH 9A 22.5 MOHM SMD |
250 | - |
|
数据表 |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | ±20% | 9 A | 18A | - | Shielded | 22.5mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
74459247FIXED IND 470UH 800MA 1.08OHM SM |
837 | - |
|
数据表 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | ±20% | 800 mA | 1.1A | - | Shielded | 1.08Ohm Max | 470 µH | - | 2.4MHz | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -40°C ~ 125°C | 100 kHz | 0.300" (7.62mm) |
|
RLB0812-472KLFIXED IND 4.7MH 50MA 16 OHM TH |
3,042 | - |
|
数据表 |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 50 mA | - | - | Unshielded | 16Ohm Max | 4.7 mH | 60 @ 252kHz | 500kHz | Through Hole | - | 0.264" Dia (6.70mm) | - | -40°C ~ 125°C | 252 kHz | 0.433" (11.00mm) |
|
XFHCL4-2R2MFIXED IND 2.2UH 20A 5.5 MOHM SMD |
250 | - |
|
数据表 |
XFHCL4 | - | Tape & Reel (TR) | Active | Molded | - | ±20% | 20 A | 32A | - | Shielded | 5.5mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.531" L x 0.504" W (13.50mm x 12.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
LQH2HPN100MGRLFIXED IND 10UH 710MA 672MOHM SMD |
2,955 | - |
|
数据表 |
LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 710 mA | 700mA | 1008 (2520 Metric) | Shielded | 672mOhm Max | 10 µH | - | 30MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 85°C | 1 MHz | 0.039" (1.00mm) |
|
74437349056FIXED IND 5.6UH 3.75A 0.049OHM |
793 | - |
|
数据表 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 3.75 A | 16.5A | - | Shielded | 49mOhm Max | 5.6 µH | - | 17MHz | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SL1616A-R10MHFFIXED IND 100NH 19A 0.32MOHM SMD |
250 | - |
|
数据表 |
SL1616 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 19 A | 17A | - | Shielded | 0.32mOhm | 100 nH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -55°C ~ 130°C | 100 kHz | 0.157" (4.00mm) |
