固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCMT104T-220MN5FIXED IND 22UH 4.6A 68 MOHM SMD |
1,162 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 4.6 A | 4.6A | - | Unshielded | 68mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
MDH7045C-100MA=P3FIXED IND 10UH 2.6A 33 MOHM SMD |
929 | - |
|
数据表 |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.6 A | 2.5A | - | Shielded | 33mOhm | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.291" L x 0.276" W (7.40mm x 7.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
IHLE2525CDER5R6M5AIHLE-2525CD-5A 5.6 20% ER E3 |
885 | - |
|
数据表 |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5.3 A | 4.8A | Nonstandard, 4 Lead | Shielded | 45.6mOhm Max | 5.6 µH | - | 22.8MHz | Surface Mount | AEC-Q200 | 0.284" L x 0.280" W (7.21mm x 7.12mm) | - | -55°C ~ 155°C | 100 kHz | 0.132" (3.35mm) |
|
ASPIAIG-QLR5050-100M-TFIXED IND 10UH 5A 43 MOHM SMD |
853 | - |
|
数据表 |
ASPIAIG-QLR5050 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 5 A | 5.4A | - | Shielded | 43mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
VCMT104T-4R7MN5FIXED IND 4.7UH 11A 15 MOHM SMD |
846 | - |
|
数据表 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 11 A | 11A | - | Unshielded | 15mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
DFEG7030D-1R0M=P3FIXED IND 1UH 9.1A 9.9 MOHM SMD |
824 | - |
|
数据表 |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | ±20% | 9.1 A | 12A | - | Shielded | 9.9mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
HCM1A0703-220-RFIXED IND 22UH 2A 149 MOHM SMD |
702 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 2 A | 3.4A | - | Shielded | 149mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.268" W (7.10mm x 6.80mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|

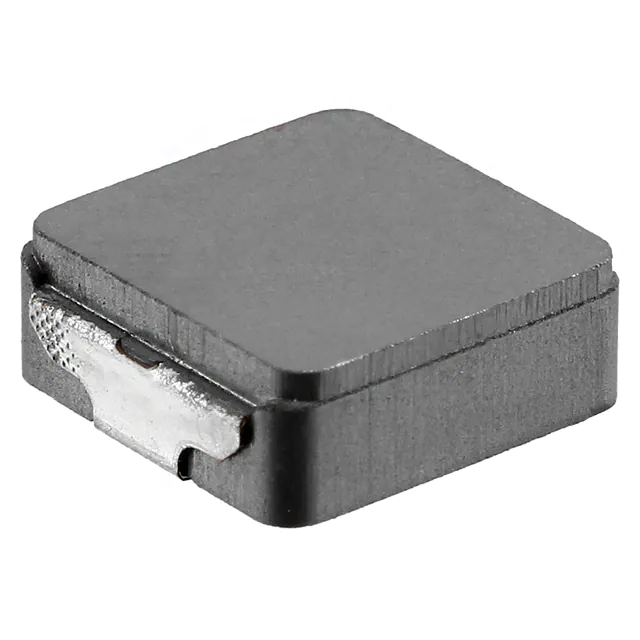

IHLP4040DZER330M5AFIXED IND 33UH 3.7A 117.7MOHM SM |
695 | - |
|
数据表 |
IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 3.7 A | 4.2A | 4040 | Shielded | 117.7mOhm Max | 33 µH | - | 5.79MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

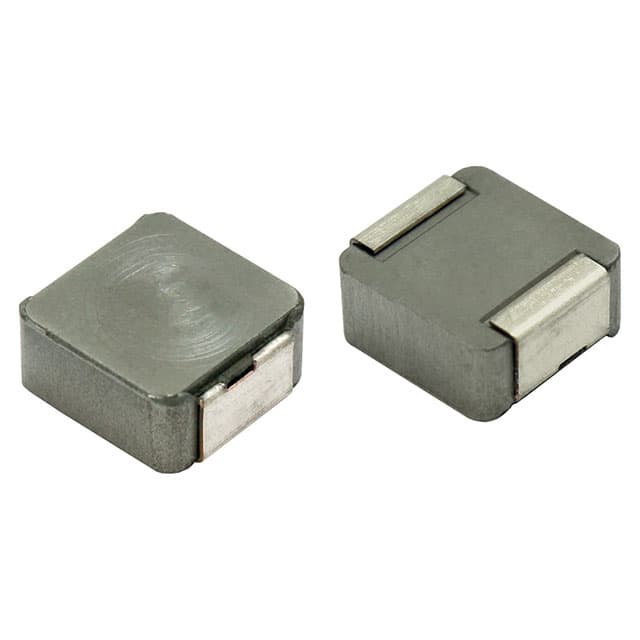

IHLP3232DZER150M8AIHLP-3232DZ-8A 15 20% ER E3 |
186 | - |
|
数据表 |
IHLP-3232DZ-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 4.8 A | 3.6A | - | Shielded | 66.34mOhm Max | 15 µH | - | 10MHz | Surface Mount | AEC-Q200 | 0.340" L x 0.322" W (8.64mm x 8.18mm) | - | -55°C ~ 180°C | 100 kHz | 0.157" (4.00mm) |
|

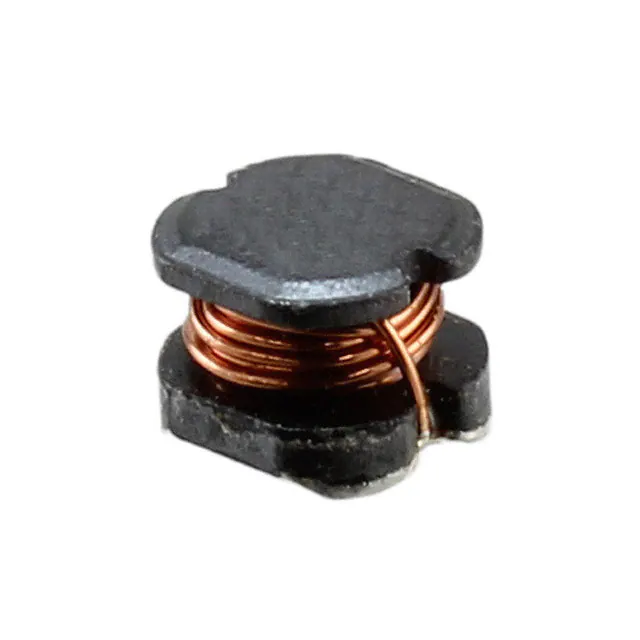

CD43NP-680KCFIXED IND 68UH 370MA 1.117OHM SM |
5,004 | - |
|
数据表 |
CD43 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 370 mA | - | - | Unshielded | 1.117Ohm Max | 68 µH | - | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.138" (3.50mm) |
|
FP1008R2-R150-RFIXED IND 150NH 74A 0.18MOHM SMD |
1,980 | - |
|
数据表 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 74 A | 90A | - | Unshielded | 0.18mOhm | 150 nH | - | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
0840CDMCCDS-100MCFIXED IND 10UH 4.8A 54 MOHM SMD |
1,785 | - |
|
数据表 |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 4.8 A | 5.4A | - | Shielded | 54mOhm Max | 10 µH | - | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
EXLA1V0703-2R7-RIND MOLDED SHLD 2.7UH 9.2A |
1,258 | - |
|
数据表 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 11.4 A | 13.5A | - | Shielded | 15.4mOhm Max | 2.7 µH | - | - | Surface Mount | AEC-Q200 | 0.331" L x 0.315" W (8.40mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
IHLE4040DDER330M5AFIXED IND 33UH 3.7A 117.7MOHM SM |
322 | - |
|
数据表 |
IHLE-4040DD-5A | 4-SMD | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.7 A | 4.2A | - | Shielded | 117.7mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.426" L x 0.426" W (10.82mm x 10.82mm) | - | -55°C ~ 155°C | 100 kHz | 0.169" (4.30mm) |
|
9230-96-RCFIXED IND 120NH 1.1A 80 MOHM TH |
173 | - |
|
数据表 |
9230 | Axial | Bulk | Active | Molded | Phenolic | ±10% | 1.1 A | - | - | Unshielded | 80mOhm Max | 120 nH | 40 @ 25MHz | 650MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
ADL3225VM-2R2M-TL000INDUCTORS FOR DECOUPLING CIRCUIT |
13,688 | - |
|
数据表 |
ADL-VM | Horizontal, 4 PC Pad | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | ±20% | 1.22 A | 1A | Horizontal, 4 PC Pad | Unshielded | 180mOhm Max | 2.2 µH | - | - | Surface Mount | AEC-Q200 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.098" (2.50mm) |
|
HCM0703-6R8-RFIXED IND 6.8UH 4.5A 60 MOHM SMD |
6,956 | - |
|
数据表 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 4.5 A | 8A | - | Shielded | 60mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
ETQ-P3M220HFNFIXED IND 22UH 2.5A 158.4MOHM SM |
4,000 | - |
|
数据表 |
PCC-M0630M-H | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.5 A | 4A | - | Shielded | 158.4mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.256" L x 0.236" W (6.50mm x 6.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
|
HCM0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD |
3,885 | - |
|
数据表 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 6 A | 13.5A | - | Shielded | 30mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
B82472P6472M000FIXED IND 4.7UH 2.5A 33 MOHM SMD |
3,810 | - |
|
数据表 |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.5 A | 2A | - | Shielded | 33mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.177" (4.50mm) |
