固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1260A-821KFIXED IND 820UH 730MA 1.5OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 730 mA | 630mA | - | Shielded | 1.5Ohm Max | 820 µH | 20 @ 796kHz | 2MHz | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.256" (6.50mm) |
|
SRP3020CC-R22YIND SMD 0.22UH 8.5A Bourns Inc. |
0 | - |
|
数据表 |
SRP3020CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | ±30% | 8.5 A | 9.2A | - | Shielded | 14mOhm Max | 220 nH | - | 185MHz | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SRP1038C-3R3MFIXED IND 3.3UH 14A 11.8MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 14 A | 22A | - | Shielded | 11.8mOhm Max | 3.3 µH | 15 @ 100kHz | 20MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038C-4R7MFIXED IND 4.7UH 13A 15.5MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 13 A | 20A | - | Shielded | 15.5mOhm Max | 4.7 µH | 15 @ 100kHz | 15MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038C-6R8MFIXED IND 6.8UH 10A 23.3MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 10 A | 15A | - | Shielded | 23.3mOhm Max | 6.8 µH | 15 @ 100kHz | 12MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
5300-41-TR-RCINDUCTOR, AXIAL, CONFORMAL COA Bourns Inc. |
0 | - |
|
数据表 |
5300 | Axial | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 100 mA | 64mA | Axial | Unshielded | 19Ohm Max | 2.2 mH | - | 640kHz | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
70F335AIFIXED IND 33UH 208MA 2.76 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 208 mA | - | - | Unshielded | 2.76Ohm Max | 33 µH | 50 @ 2.5MHz | 10MHz | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|

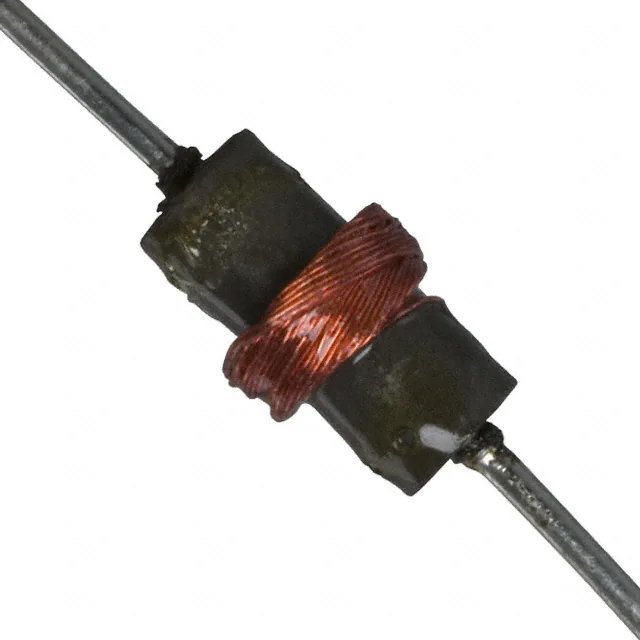

70F475AIFIXED IND 47UH 188MA 3.36 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | ±5% | 188 mA | - | - | Unshielded | 3.36Ohm Max | 47 µH | 44 @ 2.5MHz | 9.1MHz | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
SDR0302-100MXLFIXED IND 10UH 800MA 250MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 800 mA | 900mA | - | Unshielded | 250mOhm Max | 10 µH | 18 @ 2.52MHz | 34MHz | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.110" (2.80mm) |
|
|
SDR0302-1R4MLFIXED IND 1.4UH 1.5A 70 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SDR0302 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | 2.3A | - | Unshielded | 70mOhm Max | 1.4 µH | 22 @ 7.96MHz | 95MHz | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.110" (2.80mm) |
