固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1240-681KFIXED IND 680UH 500MA 2 OHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | 480mA | - | Shielded | 2Ohm Max | 680 µH | 14 @ 796kHz | 3.8MHz | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
PM105-150M-RCFIXED IND 15UH 2.25A 80 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.25 A | 4A | - | Unshielded | 80mOhm | 15 µH | 30 @ 2.52MHz | 16MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.228" (5.80mm) |
|
|
PM105-181K-RCFIXED IND 180UH 720MA 630MOHM SM Bourns Inc. |
0 | - |
|
数据表 |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 720 mA | 1.3A | - | Unshielded | 630mOhm | 180 µH | 12 @ 796kHz | 4MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.228" (5.80mm) |
|
|
PM105-330K-RCFIXED IND 33UH 1.5A 120 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM105 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | 2.9A | - | Unshielded | 120mOhm | 33 µH | 25 @ 2.52MHz | 10MHz | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | - | -40°C ~ 125°C | 1 kHz | 0.228" (5.80mm) |
|

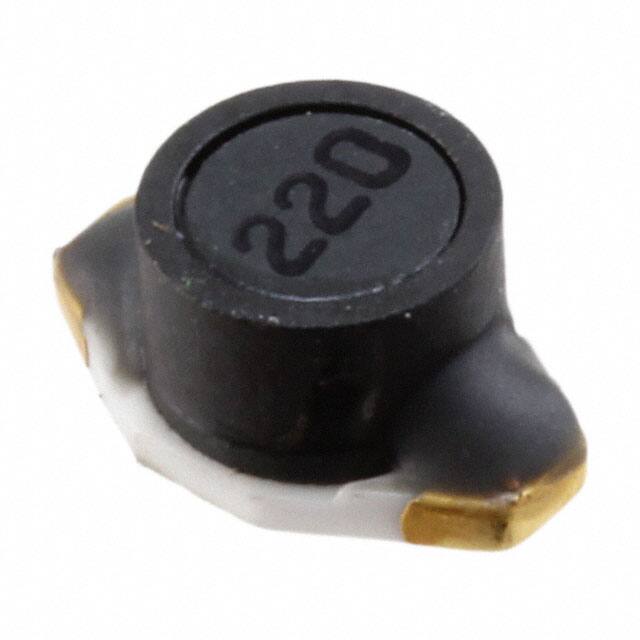

PM1608S-220M-RCFIXED IND 22UH 700MA 110MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
PM1608S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 700 mA | - | - | Shielded | 110mOhm Max | 22 µH | 40 @ 100kHz | 25MHz | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SRP1038C-R10YFIXED IND 100NH 53A 0.38MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±30% | 53 A | 85A | - | Shielded | 0.38mOhm Max | 100 nH | 10 @ 100kHz | 215MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038C-R15MFIXED IND 150NH 45A 0.6 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 45 A | 80A | - | Shielded | 0.6mOhm Max | 150 nH | 10 @ 100kHz | 150MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038C-R20MFIXED IND 200NH 40A 1 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 40 A | 75A | - | Shielded | 1mOhm Max | 200 nH | 10 @ 100kHz | 142MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038C-R30MFIXED IND 300NH 38A 1.2 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 38 A | 70A | - | Shielded | 1.2mOhm Max | 300 nH | 15 @ 100kHz | 99MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038C-R33MFIXED IND 330NH 38A 1.2 MOHM SMD Bourns Inc. |
0 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 38 A | 70A | - | Shielded | 1.2mOhm Max | 330 nH | 15 @ 100kHz | 88MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
