固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9250-565-RCFIXED IND 5.6MH 28MA 98.9 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 28 mA | 17mA | - | Shielded | 98.9Ohm Max | 5.6 mH | 44 @ 250kHz | 730kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 250 kHz | - |
|
|
9250-685-RCFIXED IND 6.8MH 27MA 111 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 27 mA | 16mA | - | Shielded | 111Ohm Max | 6.8 mH | 40 @ 250kHz | 660kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 250 kHz | - |
|
|
9250-126FIXED IND 12MH 23MA 143 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
9250 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 23 mA | 13mA | - | Shielded | 143Ohm Max | 12 mH | 30 @ 79kHz | 330kHz | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - | -55°C ~ 105°C | 79 kHz | - |
|

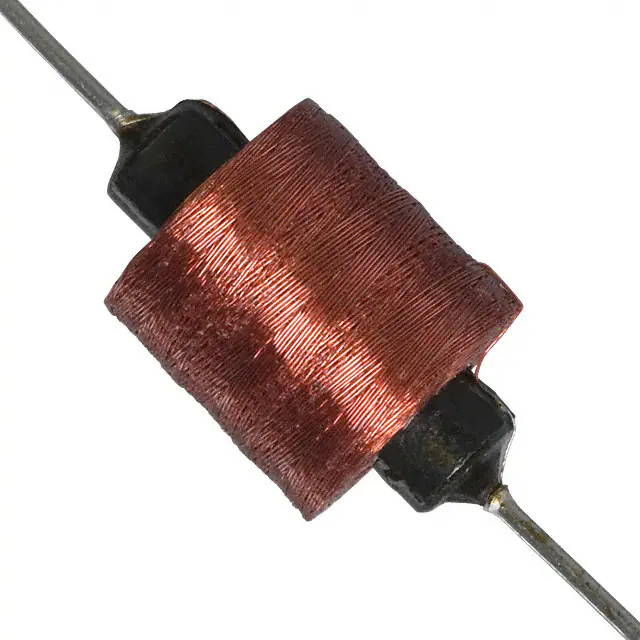

70F101AFFIXED IND 100MH 29MA 278 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 29 mA | - | - | Unshielded | 278Ohm Max | 100 mH | 48 @ 79kHz | 157kHz | Through Hole | - | 0.440" Dia x 0.630" L (11.18mm x 16.00mm) | - | -55°C ~ 105°C | 79 kHz | - |
|
70F221AFFIXED IND 220MH 39MA 424 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 39 mA | - | - | Unshielded | 424Ohm Max | 220 mH | 51 @ 25kHz | 70kHz | Through Hole | - | 0.540" Dia x 0.880" L (13.72mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
70F331AFFIXED IND 330MH 34MA 540 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 34 mA | - | - | Unshielded | 540Ohm Max | 330 mH | 54 @ 25kHz | 60kHz | Through Hole | - | 0.580" Dia x 0.880" L (14.73mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
70F471AFFIXED IND 470MH 30MA 704 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 30 mA | - | - | Unshielded | 704Ohm Max | 470 mH | 55 @ 25kHz | 54kHz | Through Hole | - | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
|
70F391AFFIXED IND 390MH 33MA 617 OHM TH Bourns Inc. |
0 | - |
|
数据表 |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 33 mA | - | - | Unshielded | 617Ohm Max | 390 mH | 54 @ 25kHz | 56kHz | Through Hole | - | 0.600" Dia x 0.880" L (15.24mm x 22.35mm) | - | -55°C ~ 105°C | 25 kHz | - |
|
SRP1038C-2R2MFIXED IND 2.2UH 15A 7.2MOHM SMD Bourns Inc. |
10 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 15 A | 27A | - | Shielded | 7.2mOhm Max | 2.2 µH | 15 @ 100kHz | 27MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
|
SRP1038C-150MFIXED IND 15UH 6.3A 45 MOHM SMD Bourns Inc. |
6 | - |
|
数据表 |
SRP1038C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal | ±20% | 6.3 A | 10A | - | Shielded | 45mOhm Max | 15 µH | 20 @ 100kHz | 9MHz | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
