固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDE1006A-150MFIXED IND 15UH 3.4A 80 MOHM SMD Bourns Inc. |
3,157 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 3.6A | - | Unshielded | 80mOhm Max | 15 µH | - | 19.8MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.228" (5.80mm) |
|
|
SDE1006A-821KFIXED IND 820UH 450MA 2.55OHM SM Bourns Inc. |
3,009 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 450 mA | 500mA | - | Unshielded | 2.55Ohm Max | 820 µH | - | 2.2MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.228" (5.80mm) |
|
|
SDE1006A-100MFIXED IND 10UH 3.8A 60 MOHM SMD Bourns Inc. |
2,665 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.8 A | 4A | - | Unshielded | 60mOhm Max | 10 µH | - | 25MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.228" (5.80mm) |
|

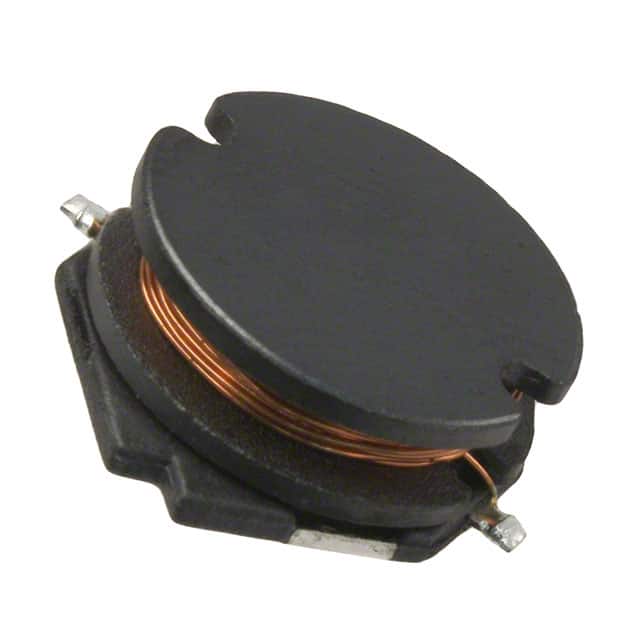

SDR1305-680MFIXED IND 68UH 1.65A 165MOHM SMD Bourns Inc. |
3,910 | - |
|
数据表 |
SDR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.65 A | 1.8A | - | Unshielded | 165mOhm Max | 68 µH | 22 @ 2.52MHz | 11MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
|
SDR1305-102KFIXED IND 1MH 460MA 2.35 OHM SMD Bourns Inc. |
1,601 | - |
|
数据表 |
SDR1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 460 mA | 470mA | - | Unshielded | 2.35Ohm Max | 1 mH | 41 @ 252kHz | 2.7MHz | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.201" (5.10mm) |
|
CE201210-R10JFIXED IND 100NH 300MA 900MOHM SM Bourns Inc. |
15,760 | - |
|
数据表 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 900mOhm Max | 100 nH | 23 @ 100MHz | 600MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 100 MHz | 0.041" (1.03mm) |
|
CV201210-R56KFIXED IND 560NH 150MA 750MOHM SM Bourns Inc. |
14,308 | - |
|
数据表 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 150 mA | - | 0805 (2012 Metric) | Shielded | 750mOhm Max | 560 nH | 25 @ 25MHz | 115MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 25 MHz | 0.057" (1.45mm) |
|
|
CV201210-330KFIXED IND 33UH 5MA 1.25 OHM SMD Bourns Inc. |
13,275 | - |
|
数据表 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 5 mA | - | 0805 (2012 Metric) | Shielded | 1.25Ohm Max | 33 µH | 30 @ 400kHz | 13MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 400 kHz | 0.057" (1.45mm) |
|
SDR0906-680KLFIXED IND 68UH 1A 310 MOHM SMD Bourns Inc. |
1,600 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | 1.4A | - | Unshielded | 310mOhm Max | 68 µH | 20 @ 2.52MHz | 10MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
|
|
SDR0906-100MLFIXED IND 10UH 2.1A 90 MOHM SMD Bourns Inc. |
1,598 | - |
|
数据表 |
SDR0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.1 A | 3.2A | - | Unshielded | 90mOhm Max | 10 µH | 35 @ 2.52MHz | 25MHz | Surface Mount | - | 0.492" L x 0.413" W (12.50mm x 10.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.248" (6.30mm) |
