固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

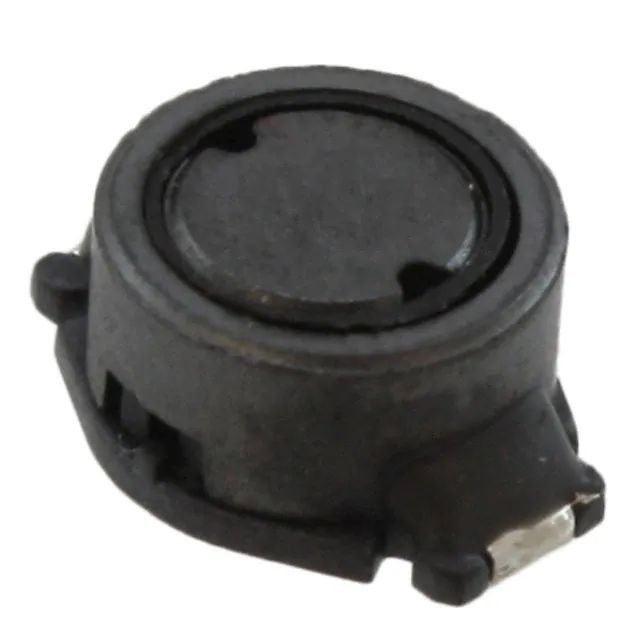

SRR0805-5R6MFIXED IND 5.6UH 1.95A 65MOHM SMD Bourns Inc. |
1,428 | - |
|
数据表 |
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.95 A | 3.2A | - | Shielded | 65mOhm Max | 5.6 µH | 20 @ 7.96MHz | 40MHz | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.185" (4.70mm) |
|
SRP0420-1R5KFIXED IND 1.5UH 6A 24.5 MOHM SMD Bourns Inc. |
1,377 | - |
|
数据表 |
SRP0420 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | ±10% | 6 A | 8A | - | Shielded | 24.5mOhm Max | 1.5 µH | 46 @ 7.96MHz | 38MHz | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

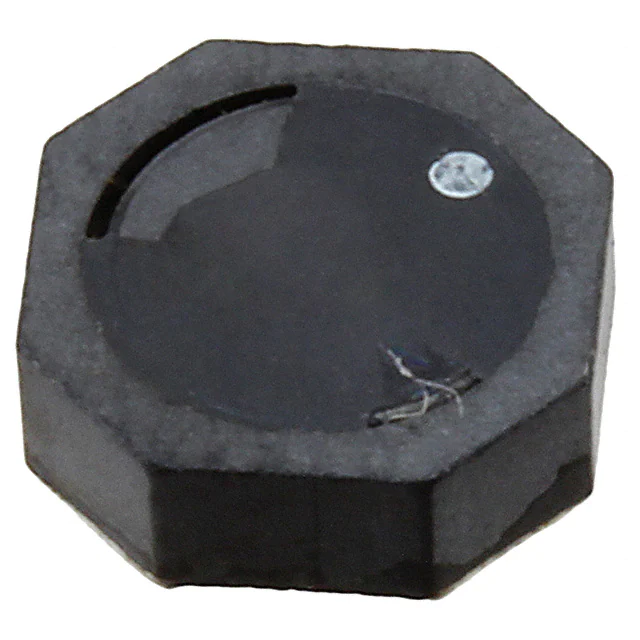

SRU6025-470YFIXED IND 47UH 1A 250 MOHM SMD Bourns Inc. |
1,798 | - |
|
数据表 |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 480mA | - | Shielded | 250mOhm Max | 47 µH | 12 @ 2.52MHz | 10MHz | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
CE201210-27NJFIXED IND 27NH 300MA 550MOHM SMD Bourns Inc. |
18,630 | - |
|
数据表 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 550mOhm Max | 27 nH | 23 @ 100MHz | 1.3GHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 100 MHz | 0.041" (1.03mm) |
|
|
SRU6025-4R7YFIXED IND 4.7UH 2.7A 35 MOHM SMD Bourns Inc. |
1,200 | - |
|
数据表 |
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.7 A | 1.55A | - | Shielded | 35mOhm Max | 4.7 µH | 8 @ 7.96MHz | 42MHz | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.110" (2.80mm) |
|
|
CE201210-10NJFIXED IND 10NH 300MA 300MOHM SMD Bourns Inc. |
16,982 | - |
|
数据表 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 300mOhm Max | 10 nH | 20 @ 100MHz | 2.1GHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 100 MHz | 0.041" (1.03mm) |
|
SDE1006A-680KFIXED IND 68UH 1.6A 220 MOHM SMD Bourns Inc. |
5,600 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | 1.7A | - | Unshielded | 220mOhm Max | 68 µH | - | 9.4MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.228" (5.80mm) |
|
|
SDE1006A-8R2MFIXED IND 8.2UH 4.1A 48 MOHM SMD Bourns Inc. |
19 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.1 A | 4.3A | - | Unshielded | 48mOhm Max | 8.2 µH | - | 27.9MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.228" (5.80mm) |
|
|
SDE1006A-681KFIXED IND 680UH 500MA 2.25OHM SM Bourns Inc. |
4,245 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | 550mA | - | Unshielded | 2.25Ohm Max | 680 µH | - | 2.8MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 kHz | 0.228" (5.80mm) |
|
|
SDE1006A-560KFIXED IND 56UH 1.7A 190 MOHM SMD Bourns Inc. |
3,977 | - |
|
数据表 |
SDE1006A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.7 A | 1.8A | - | Unshielded | 190mOhm Max | 56 µH | - | 10.2MHz | Surface Mount | AEC-Q200 | 0.394" L x 0.354" W (10.00mm x 9.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.228" (5.80mm) |
