固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI160808-22NJFIXED IND 22NH 300MA 550MOHM SMD Bourns Inc. |
22,607 | - |
|
数据表 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 550mOhm Max | 22 nH | 10 @ 100MHz | 1.1GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
CI160808-15NJFIXED IND 15NH 300MA 450MOHM SMD Bourns Inc. |
18,928 | - |
|
数据表 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 450mOhm Max | 15 nH | 10 @ 100MHz | 1.35GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
CE201210-12NJFIXED IND 12NH 300MA 350MOHM SMD Bourns Inc. |
18,826 | - |
|
数据表 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 350mOhm Max | 12 nH | 21 @ 100MHz | 1.9GHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 100 MHz | 0.041" (1.03mm) |
|
|
CE201210-5N6JFIXED IND 5.6NH 300MA 230MOHM SM Bourns Inc. |
17,636 | - |
|
数据表 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 230mOhm Max | 5.6 nH | 20 @ 100MHz | 3.2GHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 100 MHz | 0.041" (1.03mm) |
|
|
CI160808-4N7DFIXED IND 4.7NH 300MA 280MOHM SM Bourns Inc. |
14,995 | - |
|
数据表 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0603 (1608 Metric) | Unshielded | 280mOhm Max | 4.7 nH | 10 @ 100MHz | 2.8GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|

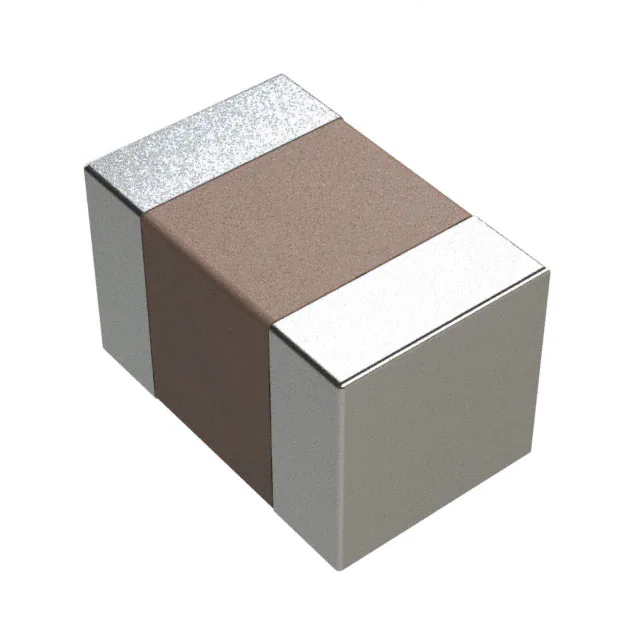

CV201210-1R8KFIXED IND 1.8UH 50MA 600MOHM SMD Bourns Inc. |
11,945 | - |
|
数据表 |
CV201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 50 mA | - | 0805 (2012 Metric) | Shielded | 600mOhm Max | 1.8 µH | 45 @ 10MHz | 55MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 10 MHz | 0.041" (1.05mm) |
|
|
CE201210-R39JFIXED IND 390NH 300MA 1.3OHM SMD Bourns Inc. |
11,807 | - |
|
数据表 |
CE201210 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 300 mA | - | 0805 (2012 Metric) | Unshielded | 1.3Ohm Max | 390 nH | 17 @ 100MHz | 250MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -55°C ~ 125°C | 50 MHz | 0.041" (1.03mm) |
|
|
CI160808-3N9DFIXED IND 3.9NH 300MA 250MOHM SM Bourns Inc. |
6,001 | - |
|
数据表 |
CI160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0603 (1608 Metric) | Unshielded | 250mOhm Max | 3.9 nH | 10 @ 100MHz | 3GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
CS160808-R22KFIXED IND 220NH 200MA 400MOHM SM Bourns Inc. |
7,160 | - |
|
数据表 |
CS160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±10% | 200 mA | - | 0603 (1608 Metric) | Shielded | 400mOhm Max | 220 nH | 30 @ 25MHz | 150MHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 25 MHz | 0.037" (0.95mm) |
-,55.jpg)
|

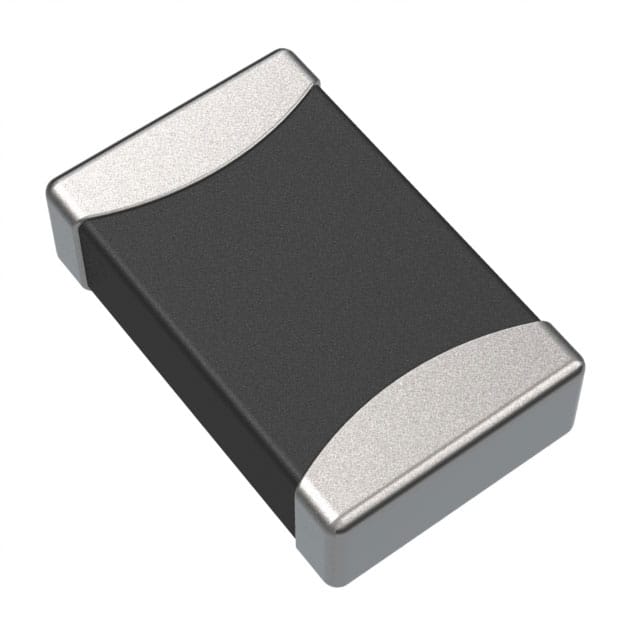

CVH201205-1R0MFIXED IND 1UH 800MA 237.5MOHM SM Bourns Inc. |
6,780 | - |
|
数据表 |
CVH201205 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 800 mA | - | 0805 | Shielded | 237.5mOhm Max | 1 µH | - | 90MHz | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 85°C | 1 MHz | 0.022" (0.55mm) |
