固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5713-RCFIXED IND 700UH 2.25A 420MOHM TH Bourns Inc. |
297 | - |
|
数据表 |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 2.25 A | - | - | Unshielded | 420mOhm Max | 700 µH | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5711-RCFIXED IND 50UH 9.5A 12 MOHM TH Bourns Inc. |
260 | - |
|
数据表 |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 9.5 A | - | - | Unshielded | 12mOhm Max | 50 µH | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5705-RCFIXED IND 450UH 1.5A 490 MOHM TH Bourns Inc. |
254 | - |
|
数据表 |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 1.5 A | - | - | Unshielded | 490mOhm Max | 450 µH | - | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
|
5701-RCFIXED IND 10UH 11A 8 MOHM TH Bourns Inc. |
144 | - |
|
数据表 |
5700 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | ±15% | 11 A | - | - | Unshielded | 8mOhm Max | 10 µH | - | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - | -55°C ~ 105°C | 1 kHz | - |
|
SRP2313AA-4R7MFIXED IND 4.7UH 44A 2.2 MOHM SMD Bourns Inc. |
1,232 | - |
|
数据表 |
SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 44 A | 34A | - | Shielded | 2.2mOhm Max | 4.7 µH | 40 @ 100kHz | 11MHz | Surface Mount | AEC-Q200 | 0.925" L x 0.866" W (23.50mm x 22.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.512" (13.00mm) |
|
|
SRP2313AA-230MFIXED IND 23UH 18A 11 MOHM SMD Bourns Inc. |
542 | - |
|
数据表 |
SRP2313AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | ±20% | 18 A | 14A | - | Shielded | 11mOhm Max | 23 µH | 30 @ 100kHz | 5MHz | Surface Mount | AEC-Q200 | 0.925" L x 0.866" W (23.50mm x 22.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.512" (13.00mm) |
|
1130-121K-RCFIXED IND 120UH 7.2A 46 MOHM TH Bourns Inc. |
6,676 | - |
|
数据表 |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 7.2 A | - | - | Unshielded | 46mOhm Max | 120 µH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1130-100K-RCFIXED IND 10UH 17A 6 MOHM TH Bourns Inc. |
2,105 | - |
|
数据表 |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 17 A | - | - | Unshielded | 6mOhm Max | 10 µH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|

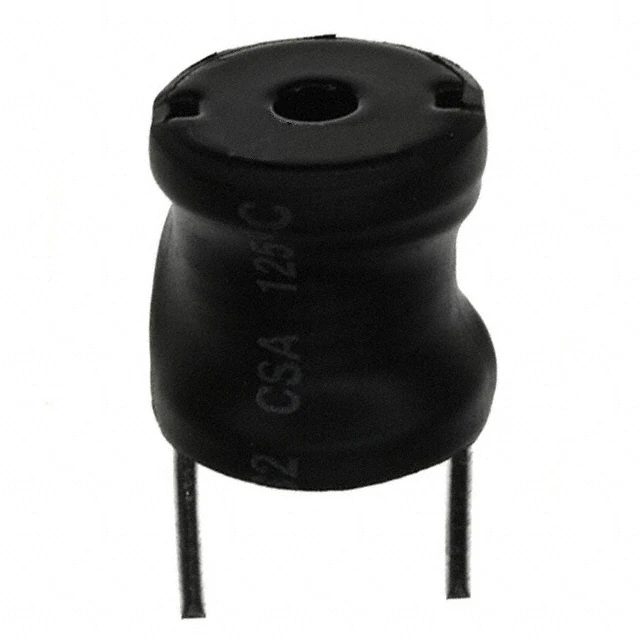

1120-4R7M-RCFIXED IND 4.7UH 11.4A 5 MOHM TH Bourns Inc. |
664 | - |
|
数据表 |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 11.4 A | - | - | Unshielded | 5mOhm Max | 4.7 µH | - | - | Through Hole | - | 0.810" Dia (20.57mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
1120-101K-RCFIXED IND 100UH 4A 80 MOHM TH Bourns Inc. |
563 | - |
|
数据表 |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 4 A | - | - | Unshielded | 80mOhm Max | 100 µH | - | - | Through Hole | - | 0.810" Dia (20.57mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
