固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1120-271K-RCFIXED IND 270UH 2A 213 MOHM TH Bourns Inc. |
420 | - |
|
数据表 |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2 A | - | - | Unshielded | 213mOhm Max | 270 µH | - | - | Through Hole | - | 0.810" Dia (20.57mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|

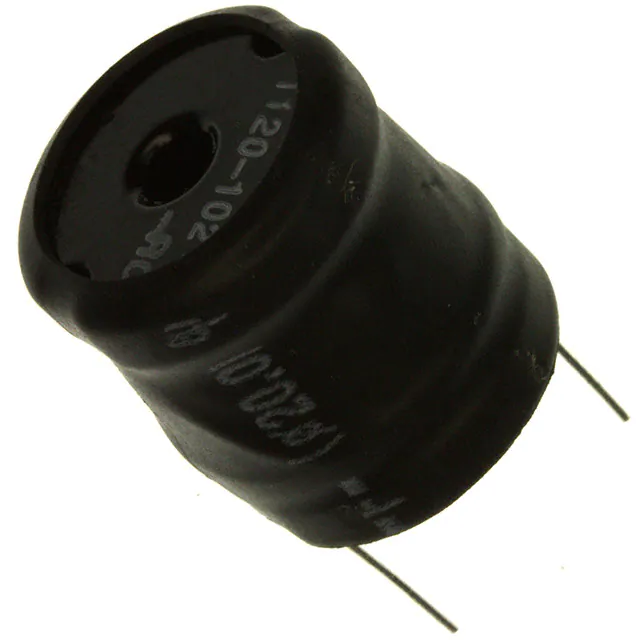

1120-102K-RCFIXED IND 1MH 1A 818 MOHM TH Bourns Inc. |
246 | - |
|
数据表 |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | - | Unshielded | 818mOhm Max | 1 mH | - | - | Through Hole | - | 0.810" Dia (20.57mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|

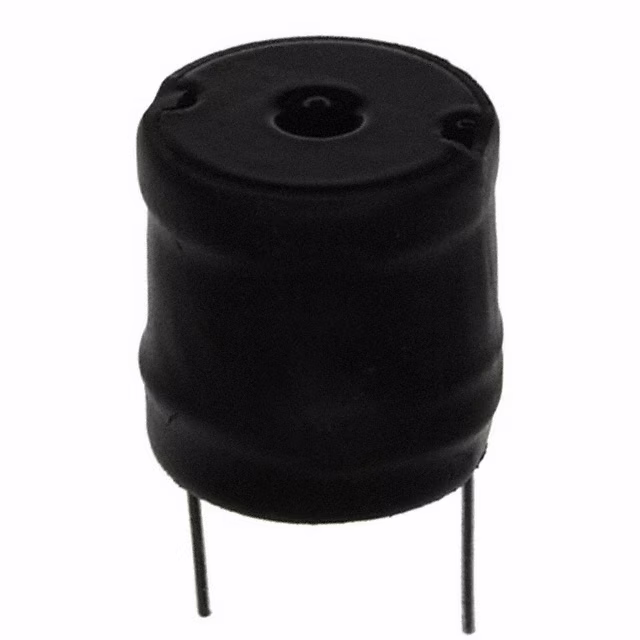

1120-221K-RCFIXED IND 220UH 2.8A 150 MOHM TH Bourns Inc. |
219 | - |
|
数据表 |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.8 A | - | - | Unshielded | 150mOhm Max | 220 µH | - | - | Through Hole | - | 0.810" Dia (20.57mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|

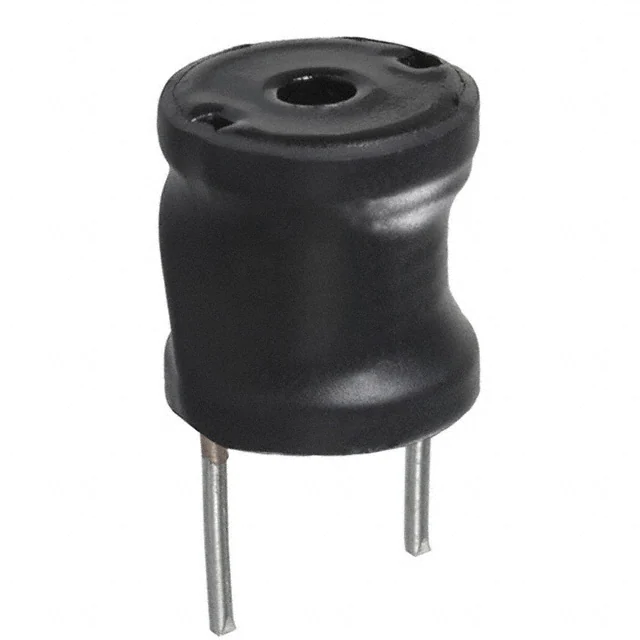

1120-222K-RCFIXED IND 2.2MH 800MA 1.54OHM TH Bourns Inc. |
161 | - |
|
数据表 |
1120 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | - | - | Unshielded | 1.54Ohm Max | 2.2 mH | - | - | Through Hole | - | 0.810" Dia (20.57mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|

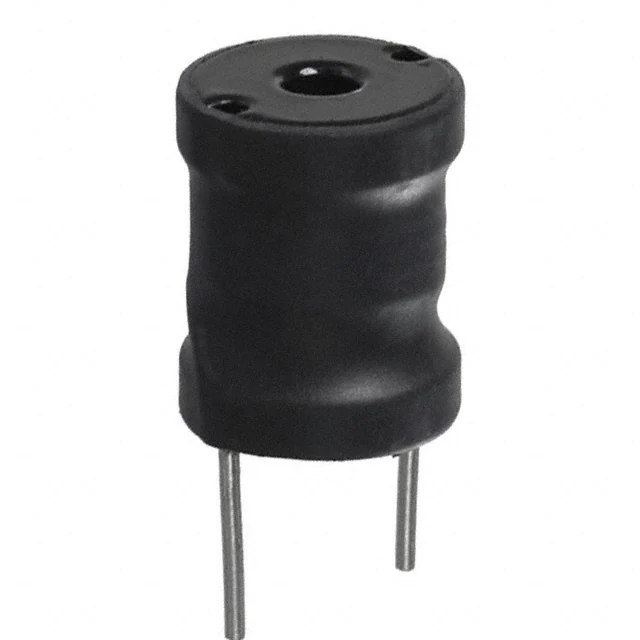

1110-221K-RCFIXED IND 220UH 1.6A 240 MOHM TH Bourns Inc. |
354 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | - | Unshielded | 240mOhm Max | 220 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1110-561K-RCFIXED IND 560UH 800MA 696MOHM TH Bourns Inc. |
298 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | - | - | Unshielded | 696mOhm Max | 560 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1110-331K-RCFIXED IND 330UH 1.3A 336 MOHM TH Bourns Inc. |
168 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.3 A | - | - | Unshielded | 336mOhm Max | 330 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1110-220K-RCFIXED IND 22UH 5.5A 20 MOHM TH Bourns Inc. |
431 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 5.5 A | - | - | Unshielded | 20mOhm Max | 22 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|
|
1110-150K-RCFIXED IND 15UH 7.2A 15 MOHM TH Bourns Inc. |
317 | - |
|
数据表 |
1110 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 7.2 A | - | - | Unshielded | 15mOhm Max | 15 µH | - | - | Through Hole | - | 0.660" Dia (16.76mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
|

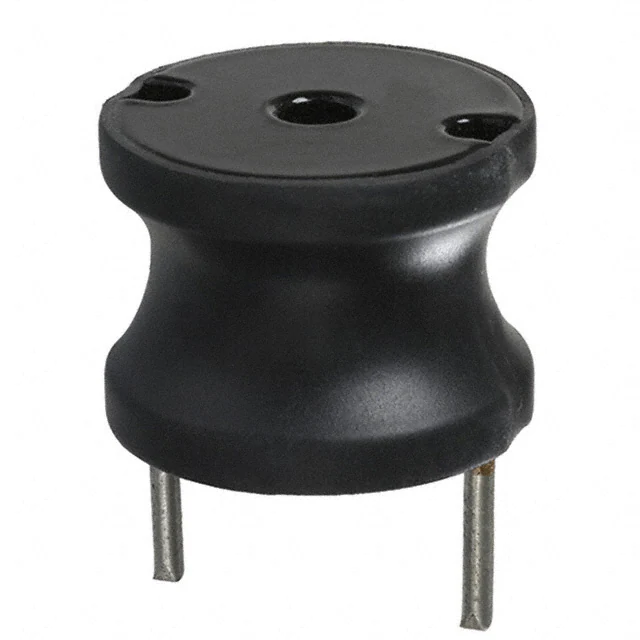

1130-221K-RCFIXED IND 220UH 5.5A 80 MOHM TH Bourns Inc. |
191 | - |
|
数据表 |
1130 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 5.5 A | - | - | Unshielded | 80mOhm Max | 220 µH | - | - | Through Hole | - | 1.100" Dia (27.94mm) | - | -55°C ~ 105°C | 1 kHz | 0.840" (21.34mm) |
