固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0618CDMCCDS-3R3MCFIXED IND 3.3UH 4.7A 50MOHM SMD Sumida America Components Inc. |
610 | - |
|
数据表 |
0618CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 4.7 A | 8A | - | Shielded | 50mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
104CDMCCDS-R22MCFIXED IND 220NH 38A 1 MOHM SMD Sumida America Components Inc. |
475 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 38 A | 70A | SMD | Shielded | 1mOhm Max | 220 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

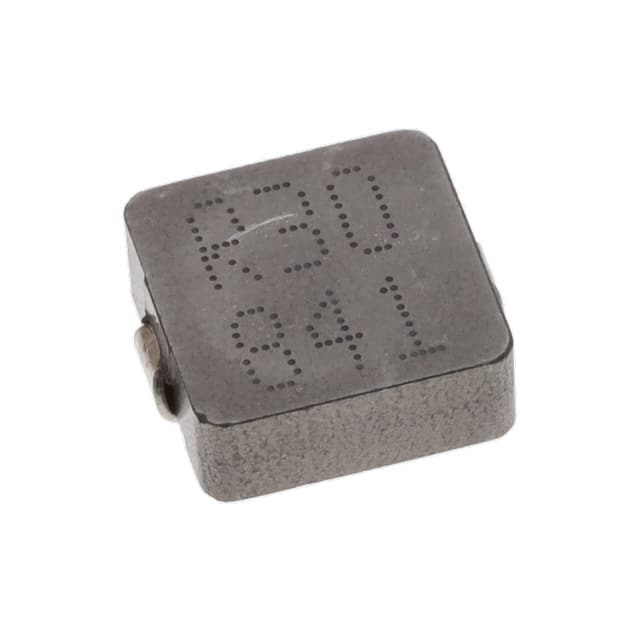

104CDMCCDS-R30MCFIXED IND 300NH 35A 1.1MOHM SMD Sumida America Components Inc. |
373 | - |
|
数据表 |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 35 A | 52A | SMD | Shielded | 1.1mOhm Max | 300 nH | - | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
CR75NP-180KCFIXED IND 18UH 1.6A 100 MOHM SMD Sumida America Components Inc. |
74 | - |
|
数据表 |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | - | Unshielded | 100mOhm Max | 18 µH | - | 20MHz | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.217" (5.50mm) |
|
CDH3D13SNP-100MCFIXED IND 10UH 1A 340 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1 A | 800mA | - | Unshielded | 340mOhm Max | 10 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-120MCFIXED IND 12UH 950MA 440MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 950 mA | 600mA | - | Unshielded | 440mOhm Max | 12 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-150MCFIXED IND 15UH 900MA 550MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 900 mA | 550mA | - | Unshielded | 550mOhm Max | 15 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-1R2MCFIXED IND 1.2UH 2.55A 75MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.55 A | 1.85A | - | Unshielded | 75mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-1R5MCFIXED IND 1.5UH 2.3A 88 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.3 A | 1.6A | - | Unshielded | 88mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-220MCFIXED IND 22UH 730MA 815MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 730 mA | 450mA | - | Unshielded | 815mOhm Max | 22 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
