固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH3D14/LDNP-6R8NCFIXED IND 6.8UH 1.05A 173MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.05 A | 600mA | - | Shielded | 173mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14NP-120NCFIXED IND 12UH 600MA 350MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 600 mA | 670mA | - | Shielded | 350mOhm Max | 12 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14NP-150NCFIXED IND 15UH 580MA 488MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 580 mA | 600mA | - | Shielded | 488mOhm Max | 15 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14NP-1R2NCFIXED IND 1.2UH 2.2A 45 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 2.2 A | 2.15A | - | Shielded | 45mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|

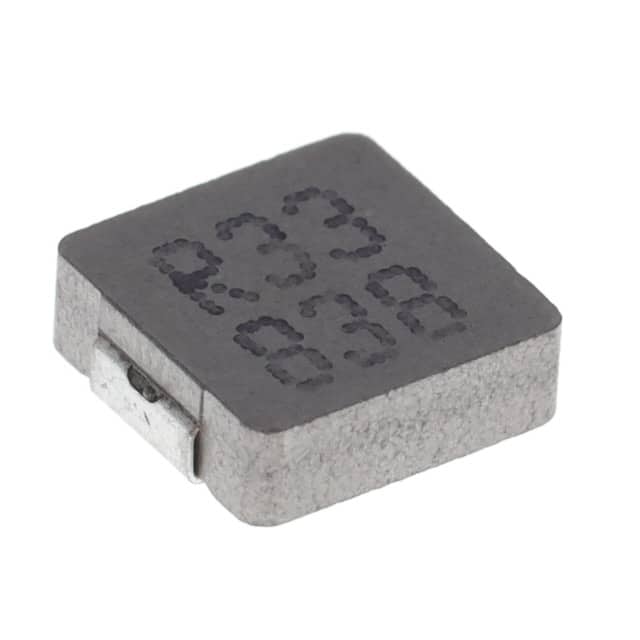

0624CDMCCDS-R33MCFIXED IND 330NH 20.5A 4.1MOHM SM Sumida America Components Inc. |
766 | - |
|
数据表 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 20.5 A | 28.5A | SMD | Shielded | 4.1mOhm Max | 330 nH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
CDRH3D14NP-1R7NCFIXED IND 1.7UH 2A 63 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 2 A | 1.85A | - | Shielded | 63mOhm Max | 1.7 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
0624CDMCCDS-1R5MCFIXED IND 1.5UH 8.7A 19.2MOHM SM Sumida America Components Inc. |
173 | - |
|
数据表 |
0624CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.7 A | 15A | SMD | Shielded | 19.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.094" (2.40mm) |
|
|
CDRH3D14NP-220NCFIXED IND 22UH 430MA 575MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 430 mA | 520mA | - | Shielded | 575mOhm Max | 22 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
0518CDMCCDS-4R7MCFIXED IND 4.7UH 3.2A 85MOHM SMD Sumida America Components Inc. |
52 | - |
|
数据表 |
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 3.2 A | 5.1A | SMD | Shielded | 85mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.071" (1.80mm) |
|
|
CDRH3D14NP-2R7NCFIXED IND 2.7UH 1.36A 88MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.36 A | 1.45A | - | Shielded | 88mOhm Max | 2.7 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
