固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH3D14/HPNP-2R4NCFIXED IND 2.4UH 1.32A 129MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.32 A | 2A | - | Shielded | 129mOhm Max | 2.4 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14/HPNP-3R2NCFIXED IND 3.2UH 1.25A 139MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.25 A | 1.8A | - | Shielded | 139mOhm Max | 3.2 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14/HPNP-6R8NCFIXED IND 6.8UH 840MA 290MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 840 mA | 1.2A | - | Shielded | 290mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14/LDNP-100NCFIXED IND 10UH 1A 220 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1 A | 500mA | - | Shielded | 220mOhm Max | 10 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14/LDNP-120NCFIXED IND 12UH 800MA 270MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 800 mA | 450mA | - | Shielded | 270mOhm Max | 12 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|

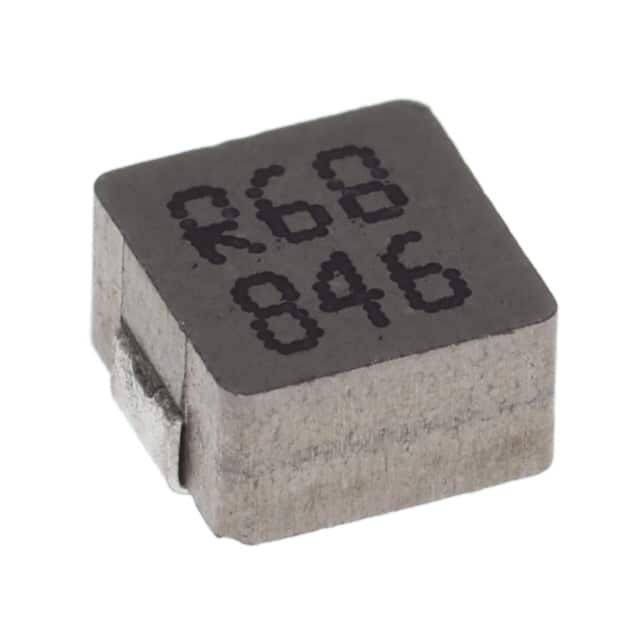

0530CDMCCDS-R68MCFIXED IND 680NH 9.6A 12MOHM SMD Sumida America Components Inc. |
723 | - |
|
数据表 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 9.6 A | 14A | SMD | Shielded | 12mOhm Max | 680 nH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
CDRH3D14/LDNP-150NCFIXED IND 15UH 750MA 302MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 750 mA | 400mA | - | Shielded | 302mOhm Max | 15 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14/LDNP-1R5NCFIXED IND 1.5UH 2.4A 48 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 2.4 A | 1.35A | - | Shielded | 48mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
|
CDRH3D14/LDNP-220NCFIXED IND 22UH 600MA 447MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDRH3D14/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 600 mA | 350mA | - | Shielded | 447mOhm Max | 22 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
0530CDMCCDS-1R5MCFIXED IND 1.5UH 7.2A 25MOHM SMD Sumida America Components Inc. |
688 | - |
|
数据表 |
0530CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 7.2 A | 13A | SMD | Shielded | 25mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
